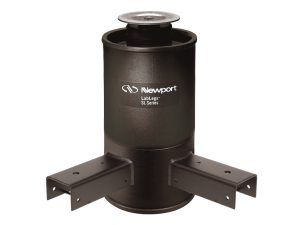

SL Closed Pneumatic Vibration Isolators with Tie Bar Flange

SL Series LabLegs™ closed pneumatic vibration isolators feature a tie bar flange and offer vibration isolation at a very affordable price when automatic re-leveling is not required. The isolators remove floor vibrations in the 10 Hz to 50 Hz range and support a wide variety of less rigorous research and production applications.

Closed pneumatic isolation for 10 to 50 Hz floor vibrations
Tie bar compatibility for increased stability of your optical table
Will not bottom out like conventional air mounts
Inflated with included foot pump for fill and forget vibration isolation

See All Features

Description	Compatibility	Price
SL-1200-419.5TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-1200, 19.5 in., Qty 4, 4800 lb. Load, Tie-bar Flange	UNIVERSAL	$4,538
SL-1200-422TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-1200, 22 in., Qty 4, 4800 lb. Load, Tie-bar Flange	UNIVERSAL	$4,538
SL-1200-423.5TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-1200, 23.5 in., Qty 4, 4800 lb. Load, Tie-bar Flange	UNIVERSAL	$4,538
SL-1200-428TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-1200, 28 in., Qty 4, 4800 lb. Load, Tie-bar Flange	UNIVERSAL	$4,538
SL-600-419.5TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-600 LabLegs, 19.5 in., 2400 lb. load, Qty 4, Tie-Bar Flange	UNIVERSAL	$4,066
SL-600-422TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-600 LabLegs, 22 in., 2400 lb. load, Qty 4, Tie-Bar Flange	UNIVERSAL	$4,066
SL-600-423.5TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-600 LabLegs, 23.5 in., 2400 lb. load, Qty 4, Tie-Bar Flange	UNIVERSAL	$4,066
SL-600-428TC SL Closed Pneumatic Isolators with Tie Bar FlangeVibration Isolator Set, SL-600 LabLegs, 28 in., 2400 lb. load, Qty 4, Tie-Bar Flange	UNIVERSAL	$4,066

Features

Pneumatic Isolation Solution at a Very Affordable Price

LabLegs™ SL isolators feature Newport's SLM Series Air Isolation Mounts with different load capacity options mounted on a robust cylinder frame. To be more specific, SL-600 and SL-1200 series incorporate SLM-6A and SLM-12A, respectively. The rigid wall design of the air mount provides better isolation than traditional air bladder design, delivering 96% isolation (vertical) and 98% isolation (horizontal) at 10 Hz for SL-1200 at full load. Once filled with air they are virtually maintenance free.

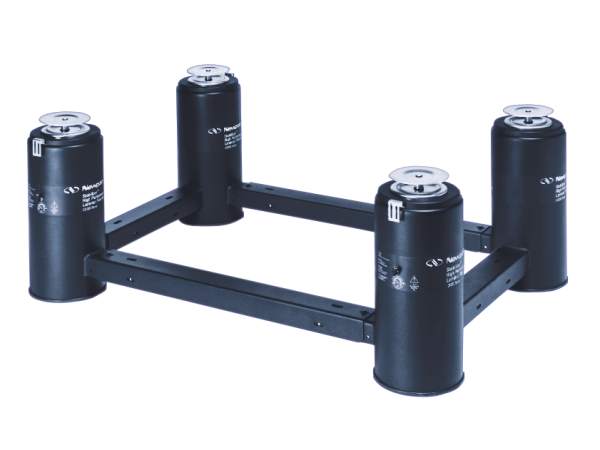

Compatible with Optical Table Tie Bars

Optical table supports with a tie bar flange are compatible with our optical table support tie-bar systems. Optical table support tie-bars increase the stability of your optical table. They are available in kits for various standard size optical tables with and without casters for moving the table system. We also offer complete optical table and support systems that include the optical table, isolators, and support frames that incorporate tie-bars between the isolators.
