Temperature Controlled TO-CAN Laser Diode Mounts
Temperature Controlled TO-CAN Laser Diode Mounts
Temperature controlled laser diode mounts provide convenient mounting solutions for the most demanding laser diode control in the laboratory. Direct access to the laser TO-CAN window is possible on these laser diode mounts, for both the TO-9 and TO-56 type packages.
- Convenient platform for mounting low power laser diodes
- Wide operating temperature range of -5°C to +80°C
- High efficiency heat transfer extends laser diode lifetime
- Socket and wiring accommodates 3 pin and 4 pin configurations
- Compatible with free-space and pigtailed 5.6 mm, 9 mm TO-can diodes See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 710 Collimated TO-56 and TO-9 Laser Diode Mounts Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled | |||||

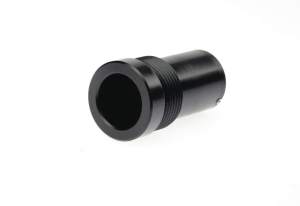

 | 710-LA-5 Collimated TO-56 and TO-9 Laser Diode Mounts Lens adapter, 5 mm, For LP-05A-XYZ mounted on Model 710 | |||||
| 710-LA-9 Collimated TO-56 and TO-9 Laser Diode Mounts Lens adapter, 9 mm, For LP-05A-XYZ mounted on Model 710 |
Features
Collimating Laser Beam
Collimation of the divergent output of a free-space laser diode is accomplished via the accessories available for these laser diode mounts. In addition, fiber pigtailed diode lasers are accommodated on this same platform. For collimating divergent output beams, a precision lens alignment mechanism and multiple-element collimating optics are available as accessories.
Standard Laser Diode Control Connectors
700 Series TO Can Mounts

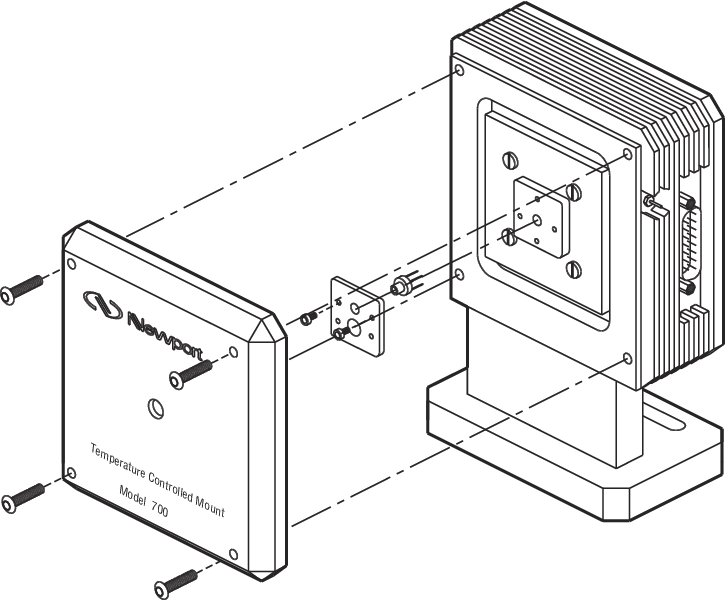

The 700 Series TO-can Temperature Controlled Laser Diode Mounts provide a versatile mounting solution for the most demanding laser diode control in the laboratory. Direct access to the laser TO-can window is available by an easily removable retaining plate, for both the TO-9 and TO-56 can type.
Optimum TO-Can Case Temperature Control
Optimum temperature control is achieved via two built-in 12.5 W Peltier thermoelectric coolers (TEC). To increase system flexibility, the mount incorporates a nitrogen purge fitting, a BNC connector for modulation (BIAS-T not included), and two temperature sensors (thermistor and AD592CN).
Optical Post Mounting
The 710 laser diode mount can be used with a post and post holder to secure to an optical table or optical breadboard. The mount supports 8-32 and M4 type threaded screws for attachment.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 300-04 | |||||

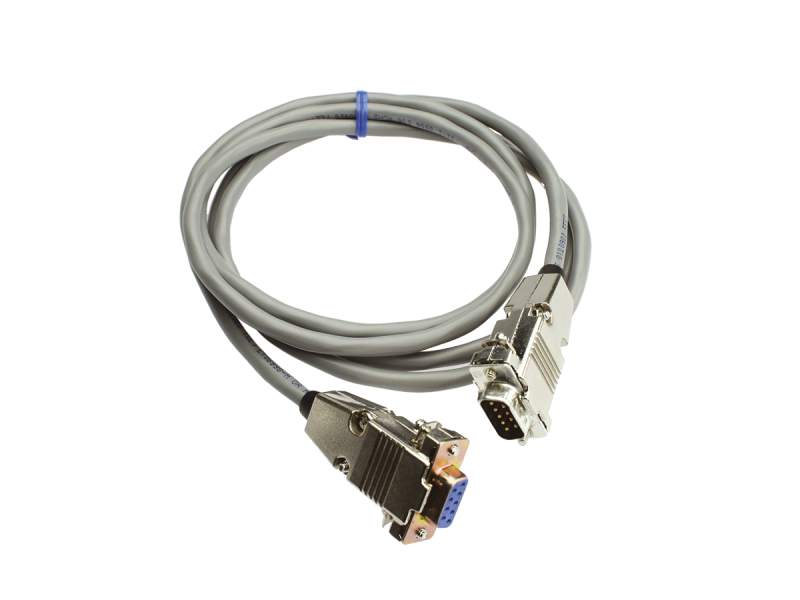

 | 500-04 | |||||
 | LP-05A-XYZ |
Resources
Manuals
Model 710 User Manual(637.6 kB, PDF) 710 Laser Diode Mount User Manual Addendum(8.3 kB, PDF)
