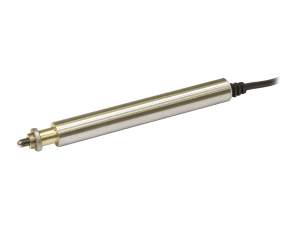

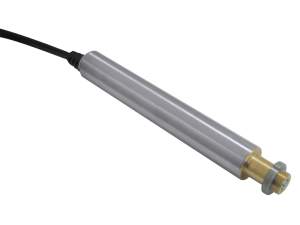

TRA Compact Motorized Actuators

TRA actuators are Newport's lowest cost solution for general OEM and research applications. They incorporate an excellent space saving design that allows them to be used with a wide variety of manual stages, mirror mounts, and OEM applications.

Low cost stepper & DC servo actuators
Light and compact in-line design
Vacuum compatible stepper motor versions
Replaces manual micrometer drives with similar form-factor
Integrated optical limit switches prevent component & motor damage
Hard-coated steel actuator ball tip

See All Features

Description	Compatibility	Price
TRA12CC Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 12 mm Travel, DC Servo motor	UNIVERSAL	$1,065
TRA12PPD Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	$1,065

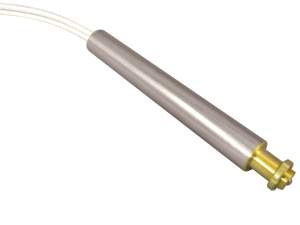

TRA12PPV6 Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 12 mm Travel, Vacuum Compatible	UNIVERSAL	$2,136
TRA25CC Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 25 mm Travel, DC Servo Motor	UNIVERSAL	$1,133
TRA25PPD Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 25mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	$1,133
TRA25PPV6 Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 25 mm Travel, Vacuum Compatible	UNIVERSAL	$2,278
TRA6CC Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 6 mm Travel, DC Servo Motor	UNIVERSAL	$1,044
TRA6PPD Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 6 mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	$1,044
TRA6PPV6 Compact Motorized Actuators, TRA SeriesMotorized Actuator, Miniature, 6 mm Travel, Vacuum Compatible	UNIVERSAL	$2,024

Compatible Controllers

Compatible motion controllers for the TRA actuators are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.
ESP302 Motion Controller (1, 2, or 3 Axis): Plug and Play compatible with ESP302 Motion Controller.

The TRA-CC actuators are also compatible with SMC100CC Single Axis Motion Controller, and the TRA-PPD and TRA-PPV6 actuators are compatible with SMC100PP Single Axis Motion Controller.

Specifications

[calculators:text.product.notes]

Also available in a vacuum compatible version TRA-PPV6.

Features

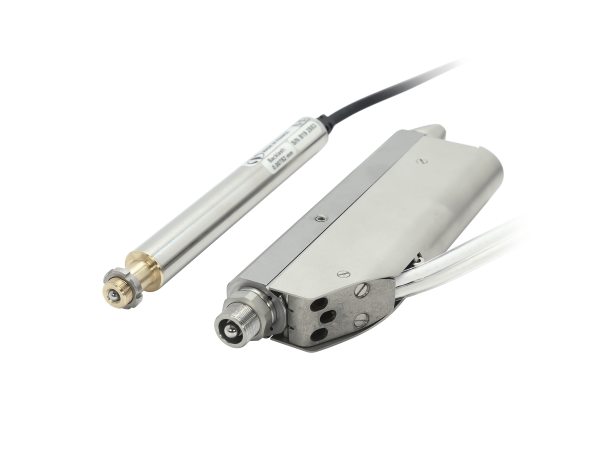

Slim Design

TRA6 and TRA12 models provide 6 mm or 12 mm of travel in a slim, 15 mm diameter housing. The TRA25 provides 25 mm travel in a slightly larger 18 mm housing. The slim design minimizes the space used when upgrading a manual stage or optical mount to a motorized solution.

Replaces Micrometer Drives on Manual Stages

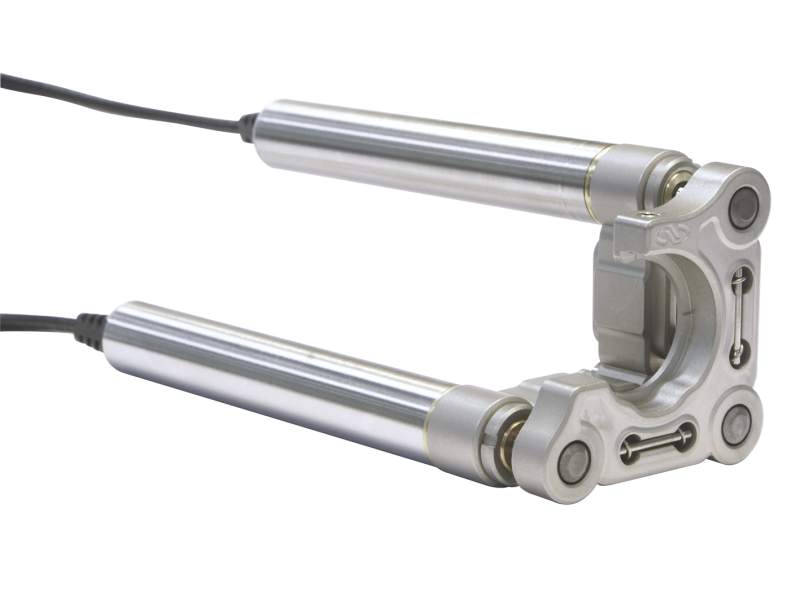

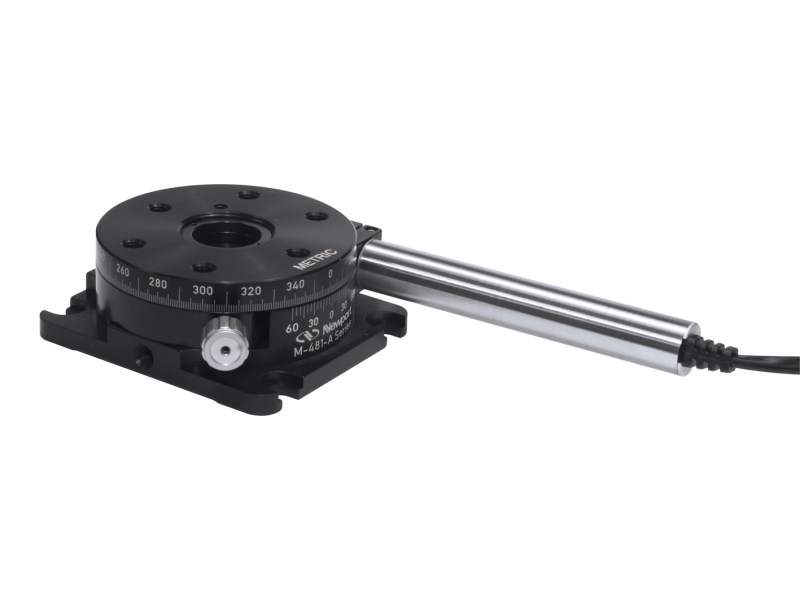

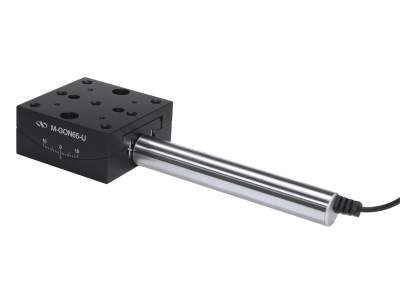

TRA actuators offer a similar form-factor as micrometer drives, allowing them to be used to upgrade manual stages with ease. The TRA6 models provide 6 mm travel and are the recommended choice for motorizing 561 Series linear stages, and 481 and RS65 rotation stages. The TRA12 models provide 12 mm travel and are compatible with Suprema and Ultima mirror mounts, ULTRAlign, and 460A Series linear stages. The TRA25 provides 25 mm travel in a slightly larger package and is the recommended choice for motorizing longer travel devices. Additionally, TRA actuators are mechanically compatible with other Newport mechanical products – for more details refer to the TRA and TRB Series Compatibility guide.

Vacuum Compatible Stepper Motor Versions

TRA Series actuators also come in standard stepper motor models specifically designed for vacuum applications up to 10^-6 Torr and are readily available from stock. They can be used to upgrade Newport's vacuum compatible mirror mounts to an automated vacuum compatible solution.

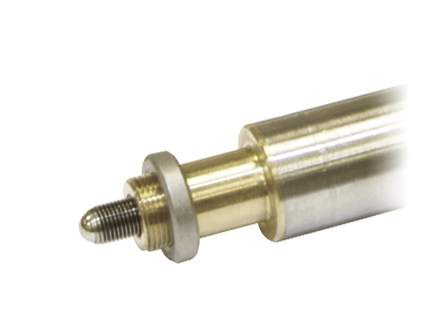

Hard Coated Actuator Tip

TRA actuators also feature a hard-coated steel ball tip that minimizes contact surface wear compared to other designs that use regular steel ball tips.

Integrated Optical Limit Switches

All TRA actuators include integrated optical limit switches. These highly reliable switches not only protect investments from over travel damage, they also provide a method for repeatable referencing/homing, for instance after shut-downs.

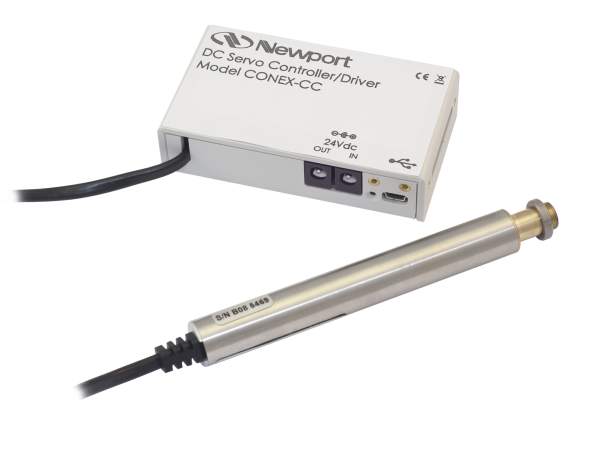

CONEX Controller Versions

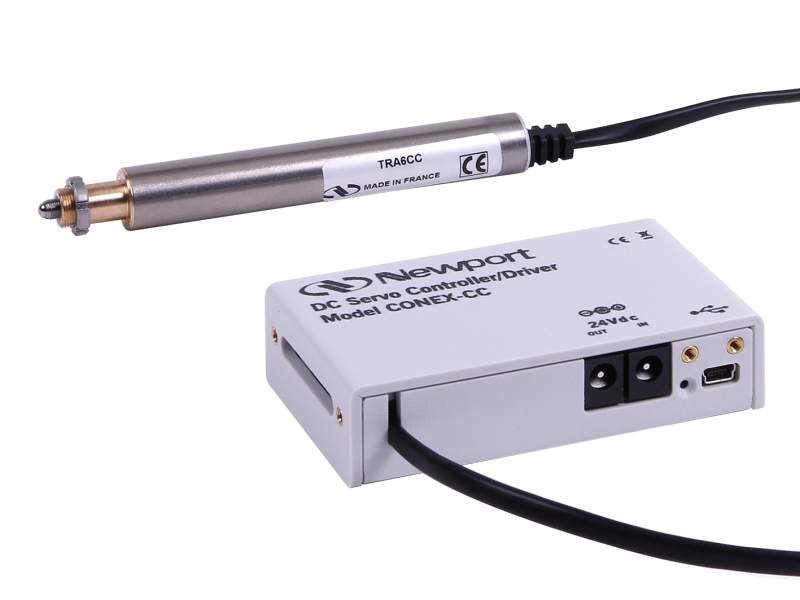

Newport also offers versions of the DC servo motor linear actuators with integrated CONEX motion controller. For out-of-the box control, the CONEX controller is preconfigured and delivered with the TRA-CC actuator.

Note that the method used to install TRB Actuators in the video is the same for TRA Actuators.

Accessories

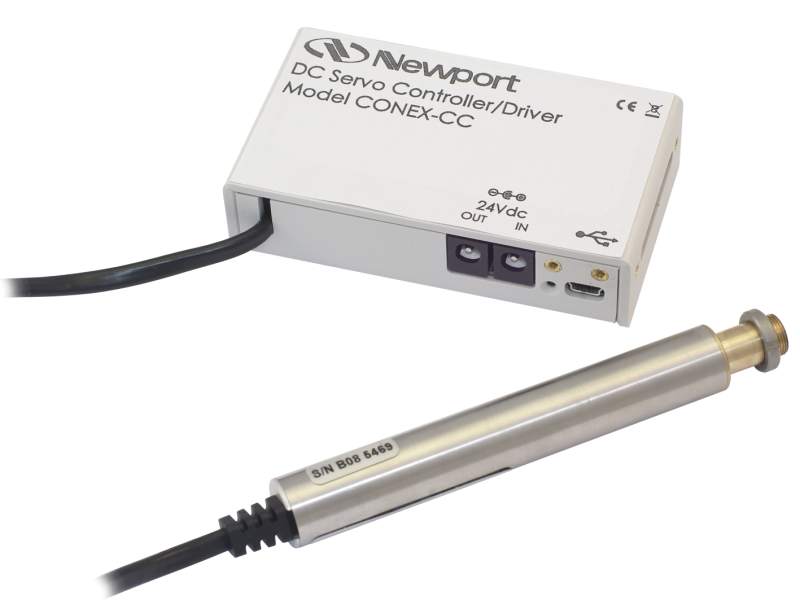

CONEX Integrated TRA Actuators

Description	Compatibility	Price
CONEX-TRA12CC Linear Actuator, DC Servo, 12 mm Travel, TRA12CC and CONEX-CC Controller	UNIVERSAL	$1,866
CONEX-TRA25CC Linear Actuator, DC Servo, 25 mm Travel, TRA25CC and CONEX-CC Controller	UNIVERSAL	$1,775
CONEX-TRA6CC Linear Actuator, DC Servo, 6 mm Travel, TRA6CC and CONEX-CC Controller	UNIVERSAL	$1,607

Opto-mechanics Adapters

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

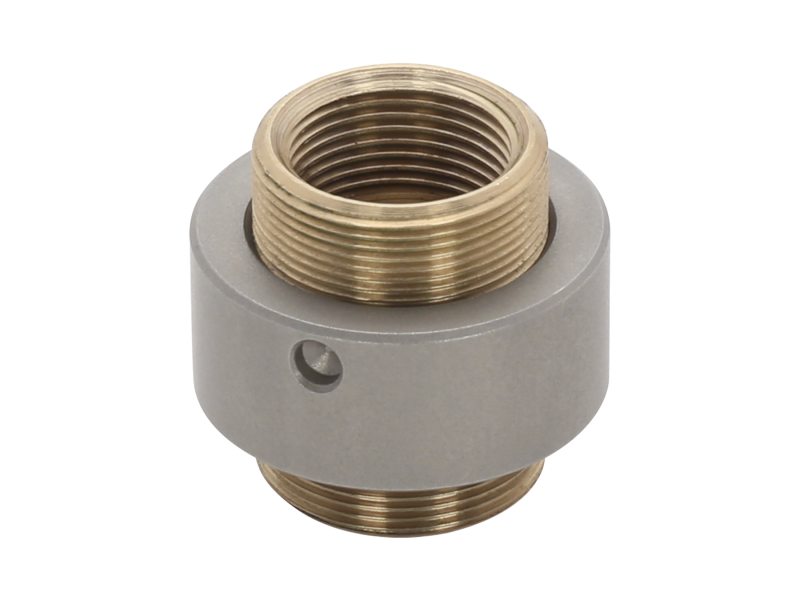

		ADAPT-TRA Actuator Adapter, TRA6 & TRA12, Opto-Mechanical Components	UNIVERSAL			$88
		ADAPT-TRA25 Actuator Adapter, TRA25, Opto-Mechanical Components	UNIVERSAL			$92
