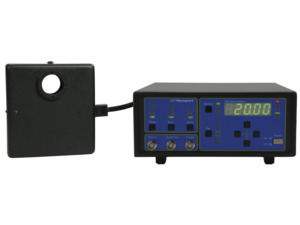

Enclosed Head Optical Choppers

The 75160NF enclosed optical chopper is used to introduces a periodic interruption of the light path in an optical experiment, resulting in an amplitude modulation. This is useful for many small optical signal detection schemes. The chopping frequency is phase-locked to its own internal frequency synthesizer, providing rock-solid stability and flexibility.

Complete chopper system for spectoscopy applications
Enclosed chopper head for Oriel^® mounting flanges
Stable and reliable phase locking
Includes 4 broadband absorber coated chopper wheels

See All Features

Show Filters:

Showing 1 of 1 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Type	Chopper Wheel	Chopping Frequency	Use	Phase Jitter	Avail.	Price
		75160NF Enclosed Head Optical Chopper System Optical Chopper System, Phase Locked, Includes 4 Wheels	UNIVERSAL		Phase Locked Optical Chopper	2, 5, 12 and 30 apertures	4 Hz to 2.0 kHz				$3,615

Features

Complete Chopper System for Spectroscopy Applications

The 75160NF comes complete four chopper wheels, an enclosed chopper head with Oriel mounting flange, and a chopper controller with USB 2.0 interface. All it require to run is connect power cable and its ready for chopping action.

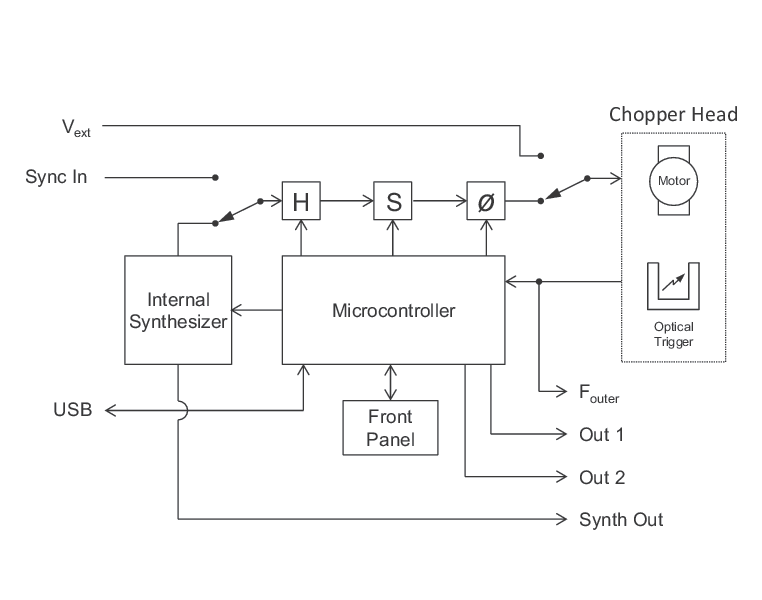

Functional block diagram for Model 75160NF Optical Chopper System

Enclosed Chopper Head

The controller drives the chopper head containing a multi-aperture wheel to modulate the light. The chopper head includes Oriel 1.5-inch series flanges, which couple to a wide variety of Oriel instruments. Chopper wheels are easily interchangeable. The enclosed chopper head design prevents detector saturation from unchopped background light and prevents scattering. When chopping lasers or UV beam, you can reduce potential hazards by enclosing the beam path. For replacement or stand alone ordering of this chopper head, contact your Newport sales representative for part number 75150-1050.

Dimensions of Oriel Optical Chopper Head

Four Broadband Absorber Coated Chopper Wheels Included

The 75160NF comes with four chopper wheels. Oriel chopper wheels are precision etched, and coated with a broadband absorber to minimize retroreflections. The chopping rate may be set from 4 Hz to 2.00 kHz depend on the chopper wheel. Replacement models are available.

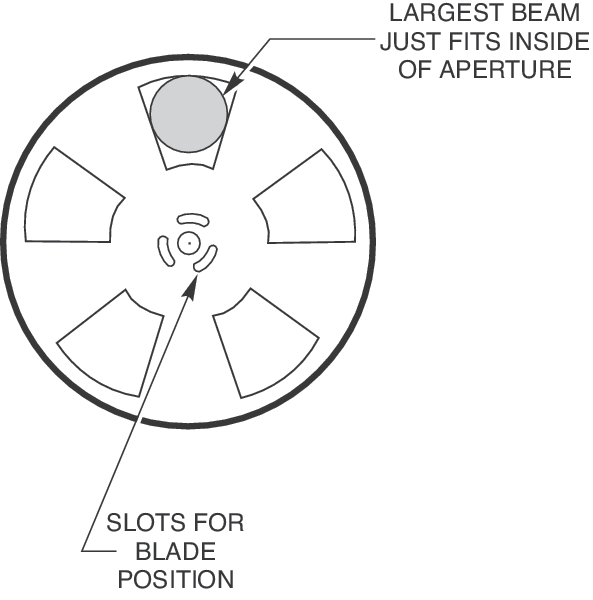

Maximum beam diameter is dependent on wheel aperture size.

Advanced Optical Chopper Controller

The front panel display of the controller allows monitoring of the chopping frequency, as well as a number of other operating parameters. Easy-to-use cursor keys provide easy adjustment of operating parameters. The chopping rate may be set from 4 Hz to 2.00 kHz, using either the internal frequency synthesizer or an external source as the reference. Chopping mode options are selectable at the fundamental, a harmonic (2 to 15), or even a sub-harmonic (1/2 to 1/15) of the reference.

Stable and Reliable Phase Locking

For stable chopping with minimum jitter and drift, the chopper head uses precision photo-etched wheels mounted on a high-quality DC motor. In addition, the chopper controller has its own internal crystal-controlled frequency synthesizer and phase-locked loop for precisely locking the chopping frequency. A photo-interrupter on the chopper head monitors the chopping frequency, and the chopper controller actively stabilizes the motor speed to ensure stable chopping with a minimum of frequency drift.

Accessories

Rack Mount Kit

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

Replacement Cable

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CBL-75160NF Cable, Oriel<sup>®</sup> Chopper Head to Chopper Controller	UNIVERSAL			$105

Replacement Wheels

If a wheel is bent during handling or storage, it may affect performance. Order a replacement if the original wheel becomes damaged or lost.

Description	Compatibility	Price
75162 Oriel<sup>®</sup> Chopper Wheel, 2 Apertures	UNIVERSAL	$300

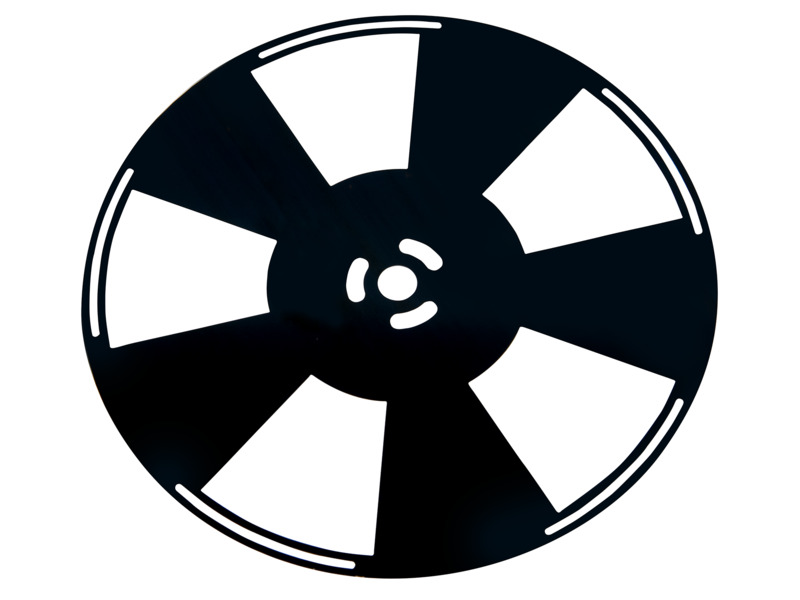

75163 Oriel<sup>®</sup> Chopper Wheel, 5 Apertures	UNIVERSAL	$300
75164 Oriel<sup>®</sup> Chopper Wheel, 30 Apertures	UNIVERSAL	$300

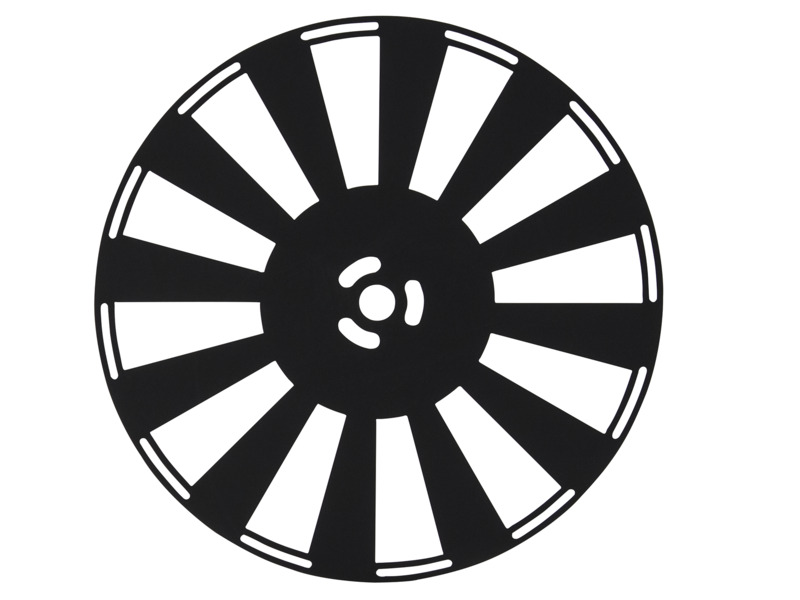

75166 Oriel<sup>®</sup> Chopper Wheel, 12 Apertures	UNIVERSAL	$300
