ESP Series Motion Controller to Stage Cables
ESP Series Motion Controller to Stage Cables
Motion controller/driver cables for ESP compatible stages.
- Motion controller cables for ESP compatible stages
- Lengths up to 10 meters
- In-line regulators for longer cables See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MCAB-1 ESP Motion Controller to Stage CablesCable, Motorized Stage, 1 m, DB25-M to DB25-F | |||||
 | MCAB-1-B ESP Motion Controller to Stage CablesCable, 1 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-10 ESP Motion Controller to Stage CablesCable, 10 m, DB25 Male to DB25 Female | |||||
| MCAB-10-B ESP Motion Controller to Stage CablesCable, 10 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-3 ESP Motion Controller to Stage CablesCable, 3 m, DB25 Male to DB25 Female | |||||
| MCAB-3-B ESP Motion Controller to Stage CablesCable, 3 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-5 ESP Motion Controller to Stage CablesCable, 5 m, DB25 Male to DB25 Female | |||||
| MCAB-5-B ESP Motion Controller to Stage CablesCable, 5 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-7 ESP Motion Controller to Stage CablesCable, 7 m, DB25 Male to DB25 Female | |||||
 | MSCABLE-3 ESP Motion Controller to Stage CablesCable, DB-25 Male to DB-15 Female, 3 m Length |
Features
Standard ESP-Compatible Cables

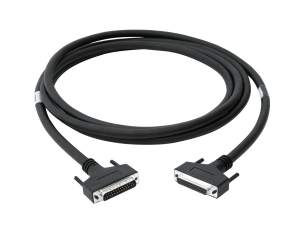

The MCAB cables are recommended for use with all DC (CC) and bi-polar stepper (BPP/BPE) motor driven ESP-compatible stages. Available in 1-, 3-, 5-, 7- and 10-m lengths, these cables contain a DB25 male and DB25 female connectors.
Cable for Brushless DC Motor
The MCAB-3-B is a 3-m long cable with DB25 male and DB25 female connectors recommended for use with MTN-BLHS brushless DC motor linear stages. These stages are compatible with an XPS controller with XPS-EDBL amplifier.
Cable with DB25 and DB15 Connectors

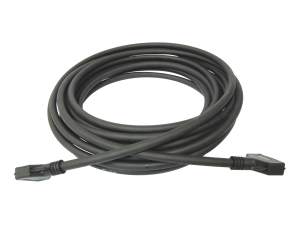

The MSCABLE-3 and MSCABLE-10 are 3- and 10-m length cables, respectively, with a DB25 male and DB15 female connectors. They are recommended for use with UTS, URS, UZS, RVS and BGS series ESP-compatible stages.
Longer Cables

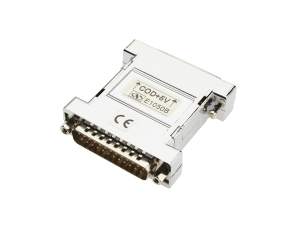

When a 5-m or longer MCAB cable is used, the MMCABLE-REG is required to ensure a high quality, regulated 5-VDC supply to the stage. And if cables 10 m or longer are required, please contact Newport to discuss the optimal solution for your application.
Resources
Manuals
ESP302 Start-Up Manual(6.2 MB, PDF)
Certificates
MKS EU ROHS3 - MCAB3 _MCAB-5_MCAB7_MCAB-10 Certificate(229.2 kB, PDF)
