ESP302 Motion Controller Accessories
ESP302 Motion Controller Accessories
ESP302 accessories include rack mounting kit, and serial port adapters.
- 19 in. Rack Mount Brackets
- Serial port adapters See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

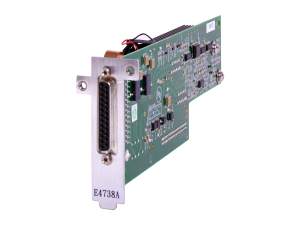

 | E4738A ESP302 Motion Controller AccessoriesMotion Driver, 3 A, ESP301, Stepper and DC Servo | Discontinued | ||||

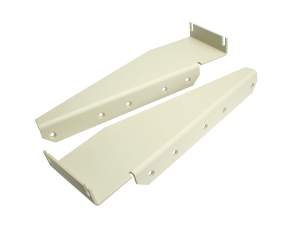

 | ESP300-R ESP302 Motion Controller Accessories19 in. Rack Mount Brackets, ESP301 Motion Controller | Discontinued | ||||
 | ESP302-CAB-1.2 ESP302 Motion Controller AccessoriesSerial Cable Adapter, Serial Port to RS232, 1.2 m, ESP302 Motion Controller | |||||
 | ESP302-GPIB-ADPT ESP302 Motion Controller AccessoriesGPIB to Serial Adapter, ESP302 Motion Controller | |||||

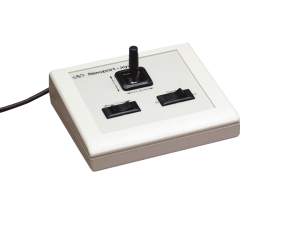

 | ESP302-J ESP302 Motion Controller AccessoriesDigital Joystick, ESP302 Motion Controller | |||||
 | ESP302-R ESP302 Motion Controller Accessories19 in. Rack Mount Brackets, ESP302 Motion Controller | |||||
 | ESP302-RS232 ESP302 Motion Controller AccessoriesSerial Communications Adapter, Serial Port to RS232, ESP302 Motion Controller | |||||
Features

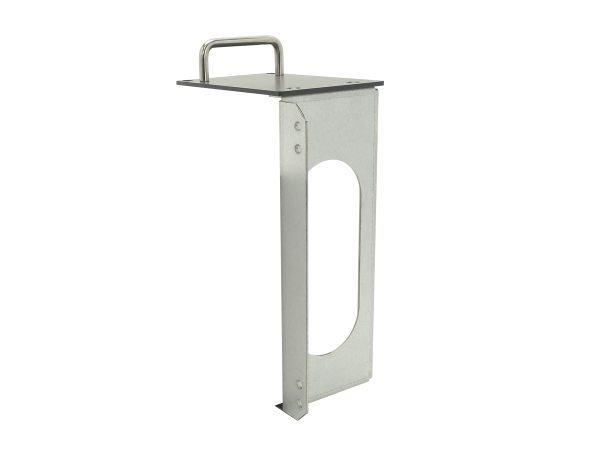

Rack Mounting Brackets
The ESP302 controllers can be mounted into standard 19-inch racks. The ESP302-R kit contains brackets and handles to enable front or rear rack mounting.
Adapters for ESP302 Serial Port to RS232
Two options are available for converting the signals of the 15-pin D-SUB-HD connector of the ESP302 controller to a 9-pin D-SUB RS232 serial port connection. The ESP302-RS232 is an adapter which connects to the rear of an ESP302 controller. Additionally, the ESP302-CAB-1.2 is a 1.2-m cable adapter, which takes less space on the rear of the ESP302 controller than the ESP302-RS232 adapter does.

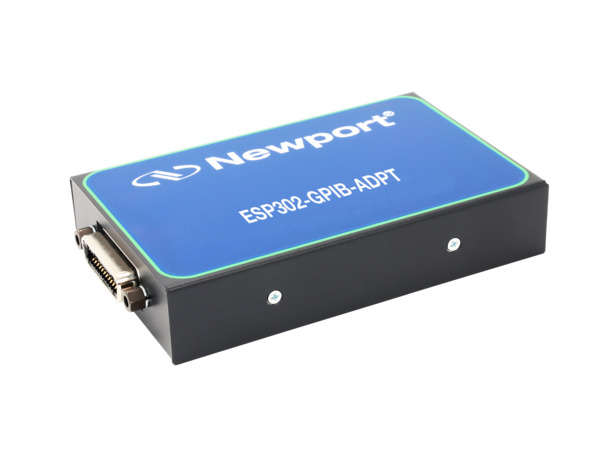

Adapter for ESP302 Serial Port to GPIB Instrument
The ESP302-GPIB-ADPT adapter is an add-on to be used with ESP302 controller enabling communication from customer's GPIB controller/instrument to the ESP302 serial interface. An ESP302-CAB-1.2 cable (sold separately) is needed to connect the ESP302-GPIB-ADPT to the serial port of ESP302 controller.
