FemtoOptics™ Ultrathin AR-coated Windows
FemtoOptics™ Ultrathin AR-coated Windows
FemtoOptics Ultra-thin Windows offer a number of sizes and thicknesses to help with fine tuning of positive GDD in an ultrafast optical system. Designed for a very broad wavelength range from 620 to 980 nm and an angle of incidence of 0 to 20 degrees, the window comes in 12.7, 25.4 or 30 mm sizes with 0.5 or 1 mm thickness.
- Reduced thickness allows for fine tuning of positive GDD
- Broad antireflection coating applied to front and back surfaces
- Low dispersion, low loss coupling
- Choice of 12.7, 25.4 or 30 mm sizes with 0.5 or 1 mm thickness See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 05Q12-05UF.AR1 Femtosecond Optimized Ultrathin AR-coated WindowsOptical Window, FemtoOptics, Ultra-thin, 12.7 mm, 0.5 mm thick, AR coated | |||||

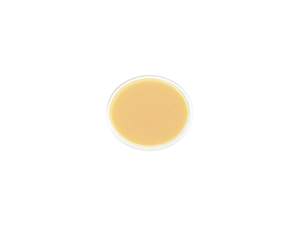

 | 10Q12-01UF.AR1 Femtosecond Optimized Ultrathin AR-coated WindowsOptical Window, FemtoOptics, Ultrathin, 25.4 mm, 1 mm thick, AR coated | |||||

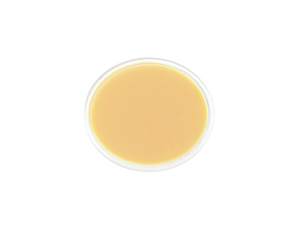

 | 3MQ12-01UF.AR1 Femtosecond Optimized Ultrathin AR-coated WindowsOptical Window, FemtoOptics, Ultrathin, 30 mm, 1 mm thick, AR coated |
Features

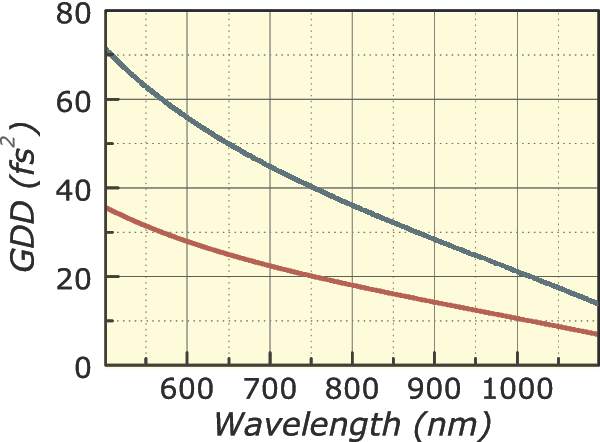

Minimize GDD
The amount of positive GDD of an optical setup can be minimized by employing these ultra thin windows. The broadband antireflection coating applied to the front and back surfaces allows nearly loss-free transmission of sub-10 femtosecond pulses.
Special care and attention should be taken when handling these ultrathin optics. Any small mishap may bring irreparable harm to the window. Handle at your own risk.
Antireflection Coating
Typical residual reflectance vs wavelength of antireflection coated windows at zero degrees angle of incidence, coating code UF.AR1.
FemtoOptics
FemtoOptics™ is the premier optics product line specifically optimized for femtosecond pulse manipulation. Consisting of innovative, high-quality, easy-to-use, cutting-edge optical components and assemblies, we have exceptional support and service for industrial and research applications across the world.
For your convenience, Newport part numbers are show here with the corresponding equivalent FemtoOptics part number.
| Newport Part | FemtoOptics Part |
| 05Q12-05UF.AR1 | OA223 |
| 10Q12-01UF.AR1 | OA222 |
| 3MQ12-01UF.AR1 | OA221 |
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LH-0.5A Fixed Lens Mount, 0.50 in. (12.7 mm) Diameter, 8-32 Thread, A-LINE | |||||
 | LH-1A Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 Thread, A-LINE | |||||
 | LH-30M Fixed Lens Mount, 30 mm Diameter, 8-32 Thread, A-LINE | |||||
| M-LH-0.5A Fixed Lens Mount, 0.50 in. (12.7 mm) Diameter, M4 Thread, A-LINE | |||||
| M-LH-1A Fixed Lens Mount, Ø1.0 in. (25.4 mm), M4 Thread, A-LINE | |||||
| M-LH-30M Fixed Lens Mount, 30-mm Diameter, M4 Thread, A-LINE |
Resources
Literature
Ultrafast Laser Optics-White Paper(477.2 kB, PDF)
