Fiber Optic In-Line Polarizers

The F-ILP Series is based on integrating a high PER micro-polarizer in a rugged stainless steel package for high optical performance and stability. These products are designed for fiber optic networks and measurement applications.

Low insertion loss
Compact size
High extinction ratio
Rugged design
Bulkhead (No-pigtail) models available

See All Features

Show Filters:

Showing 13 of 13 total products

Compatibility:

Description	Compatibility	Center Wavelength	Fiber Connector	Extinction Ratio	Avail.	Price
F-ILP-1-F-SP-FA Fiber Optic In-Line Polarizers Polarizer, 1310 nm, SM to PM, Pigtailed, FC/APC Connectors	UNIVERSAL	1310 nm	FC/APC	30 dB (typical)		$700
F-ILP-1-F-SP-FP Fiber Optic In-Line Polarizers Polarizer, 1310 nm, SM to PM, Pigtailed, FC/PC Connectors[Discontinued]	UNIVERSAL	1310 nm	FC/PC	30 dB (typical)	Discontinued
F-ILP-1-F-SS-FA Fiber Optic In-Line Polarizers Polarizer, 1310 nm, SM to SM, Pigtailed, FC/APC Connectors	UNIVERSAL	1310 nm	FC/APC	40 dB (typical)		$525
F-ILP-1-F-SS-FP Fiber Optic In-Line Polarizers Polarizer, 1310 nm, SM to SM, Pigtailed, FC/PC Connectors	UNIVERSAL	1310 nm	FC/PC	40 dB (typical)		$525
F-ILP-1-N-SP-FA Fiber Optic In-Line Polarizers Polarizer, 1310 nm, SM to PM, FC/APC Bulkhead Connectors.	UNIVERSAL	1310 nm	FC/APC	30 dB (typical)		$721
F-ILP-1-N-SP-FP Fiber Optic In-Line Polarizers Polarizer, 1310 nm, SM to PM, FC/PC Bulkhead Connectors	UNIVERSAL	1310 nm	FC/PC	30 dB (typical)		$577
F-ILP-2-F-PP-FP Fiber Optic In-Line Polarizers Polarizer, 1550 nm, PM to PM, Pigtailed, FC/PC Connectors	UNIVERSAL	1550 nm	FC/PC	30 dB (typical)		$840
F-ILP-2-F-SP-FA Fiber Optic In-Line Polarizers Polarizer, 1550 nm, SM to PM, Pigtailed, FC/APC Connectors	UNIVERSAL	1550 nm	FC/APC	30 dB (typical)		$695
F-ILP-2-F-SP-FP Fiber Optic In-Line Polarizers Polarizer, 1550 nm, SM to PM, Pigtailed, FC/PC Connectors	UNIVERSAL	1550 nm	FC/PC	30 dB (typical)		$680
F-ILP-2-F-SS-FA Fiber Optic In-Line Polarizers Polarizer, 1550 nm, SM to SM, Pigtailed, FC/APC Connectors	UNIVERSAL	1550 nm	FC/APC	40 dB (typical)		$525

Show All

Features

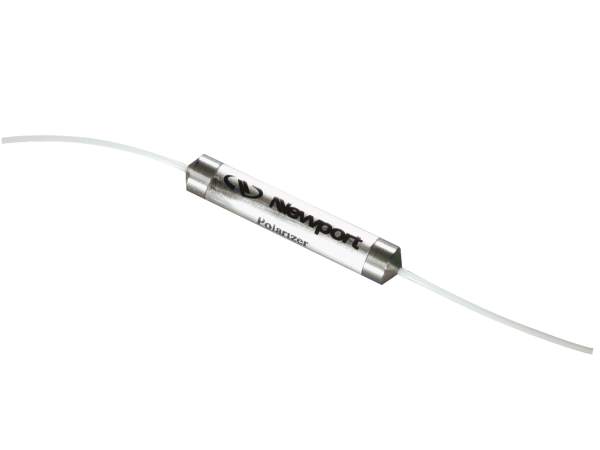

Pigtailed Versions Available

The pigtailed versions come with ~1 m long fiber pigtails with 900 µm loose tube. These devices are more economical and provide the user with added fiber length in a fiber optic system.

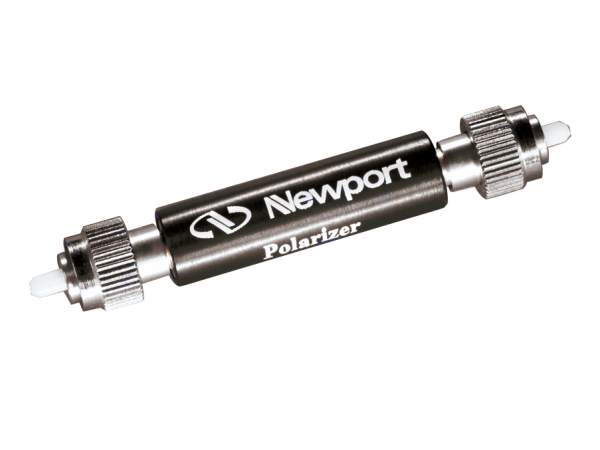

Rugged Bulkhead Design Available

The Bulkhead models are compact, rugged devices designed without fiber pigtails. Without pigtails, these device make handling much easier as users do not need to worry about fragile fibers. These Bulkhead versions have the advantage of eliminating the polarization disturbances caused by fiber pigtails.
