Fiber Optic Strippers
Fiber Optic Strippers
Our fiber optic strippers reliably and accurately strip virtually any size buffer from standard and specialty optical fibers.
- Highly Accurate and reliable fiber stripping
- Tools for various fiber diameters
- No adjustments necessary See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-JS2 Fiber Optic StrippersFiber Jacket Stripper, 1.25 mm and 1.50 mm Optical Fiber Cables | |||||
 | F-STR-103D Fiber Optic StrippersFiber Optic Stripper, Dual Hole, 250 µm & 2-3 mm | |||||

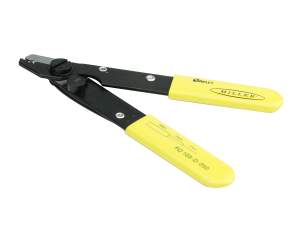

 | F-STR-103D-250 Fiber Optic StrippersFiber Optic Stripper, Dual Hole, 250 & 900 μm | |||||

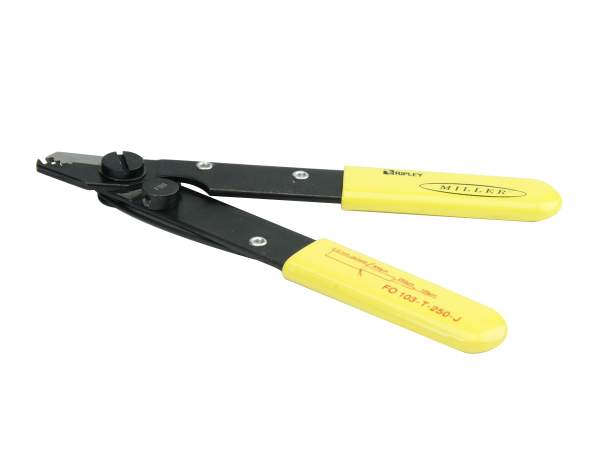

 | F-STR-103T-250 Fiber Optic StrippersFiber Optic Stripper, Tri-Hole, 250, 900 µm & 2-3 mm | |||||
 | F-STR-152 Fiber Optic StrippersFiber Coating Stripper, 80–100 µm Cladding | |||||
| F-STR-175 Fiber Optic StrippersFiber Coating Stripper, 125–175µm Cladding | |||||
| F-STR-203 Fiber Optic StrippersFiber Coating Stripper, 125–200µm Cladding | |||||
| F-STR-254 Fiber Optic StrippersFiber Coating Stripper, 150–250µm Cladding | |||||
| F-STR-305 Fiber Optic StrippersFiber Coating Stripper, 200–305µm Cladding |
Features
Standard Fiber Strippers in a Variety of Sizes
The F-STR-152, -175, -203 and -305 Fiber Coating Strippers are for reliable stripping of virtually any size buffer from standard and specialty optical fibers. Removal of buffer is accomplished by scribing the buffer which does not allow for nicking, cutting or scraping the fiber beneath. Cutting blades, made from razor quality steel score 5.3 in. (135 mm) length and 1.6 oz. (45 g) weight.
Model F-STR-175 Fiber Coating Stripper - Close Up
Multiple Hole Fiber Strippers for Extra Flexibility
The F-STR-103D series fiber optic strippers allow to strip the 2 - 3 mm outer jacket, 900 µm buffer, and the 250 µm polymer coating for the standard 125 µm fiber using only a single tool.
Fiber Jacket Stripper

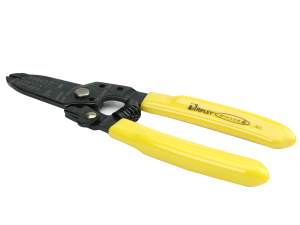

The Model F-JS2 Fiber Jacket Stripper can remove fiber jackets safely and efficiently to the diameters of 0.4 mm to 1 mm, leaving an undamaged exposed fiber. Both regular and loose tube fiber cables can be removed with this easy-to-use tool.
Factory Set and Ready to Use Out-of-the Box
These fiber optic stripping tools are factory set so there is no need for adjustment or calibration. The tool may be periodically checked for proper operation. Prior to and during the inspection, the tool may be cleaned with a plastic bristled brush to remove debris from the opening. The opening may be cleaned with dry compressed air.
