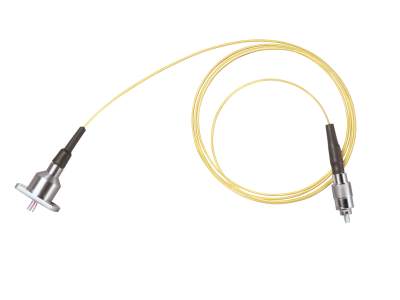

Single Mode Fiber Pigtailed Laser Diodes

Newport’s Fiber Pigtailed Laser Diodes are Fabry-Perot lasers with a single-mode fiber pigtail precisely attached for optimum coupling efficiency.

19 center wavelength options from 405 nm to 1650 nm
Connectorized single-mode fiber output
Compatible with Newport’s 710 laser diode mount

See All Features

Show Filters:

Showing 18 of 18 total products

Compatibility:

Description	Compatibility	Center Wavelength	Center Wavelength Tolerance	Output Power	Core Diameter	Price

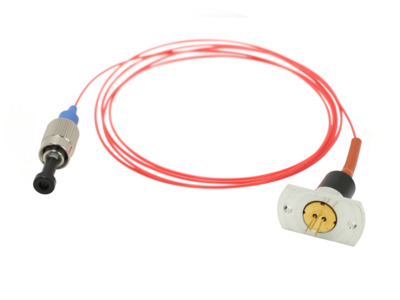

LD-635-11ALaser Diode, Fiber Pigtailed, 635 nm, 0.3 mW, 4/125 Single-mode, FC	UNIVERSAL	635 nm	±10 nm	0.3 mW	4 µm	$515
PL13P1.51FCB-NLaser Diode, Fiber Pigtailed, 1310 nm, 1.5 mW, 9/125 SM Fiber FC	UNIVERSAL	1310 nm	±20 nm	1.5 mW	9 µm	$328
PL15P1.51FCB-NLaser Diode, Fiber Pigtailed, 1550 nm, 1.5 mW, 9/125 SM Fiber, FC	UNIVERSAL	1550 nm	±20 nm	1.5 mW	9 µm	$399
PL52E0056FCB-TLaser Diode, Fiber Pigtailed, 520 nm, 5 mW, 3/125 SM Fiber, FC	UNIVERSAL	520 nm	-5/+10 nm	5 mW	3.5 µm	$555
PL63E0016FCB-TLaser Diode, Fiber Pigtailed, 638 nm, 1 mW, 4/125 SM Fiber, FC	UNIVERSAL	638 nm	-7/+3 nm	1 mW	4 µm	$293
PL63G0206FCB-TLaser Diode, Fiber Pigtailed, 633 nm, 20 mW, 4/125 SM Fiber, FC	UNIVERSAL	633 nm	±3 nm	20 mW	4 µm	$770
PL63G0301FCB-TLaser Diode, Fiber Pigtailed, 633 nm, 30 mW, 9/125 SM Fiber, FC	UNIVERSAL	633 nm	±3 nm	30 mW	9 µm	$700
PL66N0026FCB-TLaser Diode, Fiber Pigtailed, 658 nm, 2 mW, 4/125 SM Fiber, FC	UNIVERSAL	658 nm	-13/+7 nm	2 mW	4 µm	$345
PL67B0016FCB-TLaser Diode, Fiber Pigtailed, 670 nm, 1 mW, 4/125 SM Fiber, FC	UNIVERSAL	670 nm	±10 nm	1 mW	4 µm	$550
PL78G0027FCB-TLaser Diode, Fiber Pigtailed, 785 nm, 2 mW, 5/125 SM Fiber, FC	UNIVERSAL	785 nm	-15/+10 nm	2 mW	5 µm	$550
PL78S0107FCB-TLaser Diode, Fiber Pigtailed, 785 nm, 10 mW, 5/125 SM Fiber, FC	UNIVERSAL	785 nm	±10 nm	10 mW	5 µm	$620
PL83C0057FCB-TLaser Diode, Fiber Pigtailed, 830 nm, 5 mW, 5/125 SM Fiber, FC	UNIVERSAL	830 nm	±10 nm	5 mW	5 µm	$530
PL98E0038FCB-TLaser Diode, Fiber Pigtailed, 980 nm, 3 mW, 7/125 SM Fiber, FC	UNIVERSAL	980 nm	±10 nm	3 mW	6 µm	$375

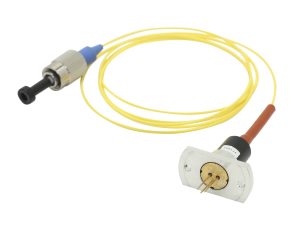

LD-635-21BLaser Diode, Fiber Pigtailed, 635 nm, 1.2 mW, 9/125 Single-mode, FC	UNIVERSAL	635 nm	±10 nm	1.2 mW	9 µm	$525

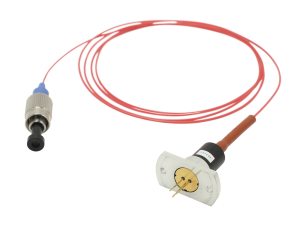

LD-635-31ALaser Diode, Fiber Pigtailed, 635 nm, 1.0 mW, 4/125 Single-mode, FC	UNIVERSAL	635 nm	±10 nm	1.0 mW	4 µm	$650

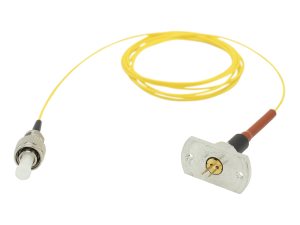

LD-670-21BLaser Diode, Fiber Pigtailed, 670 nm, 1.2 mW, 9/125 Single-mode, FC	UNIVERSAL	670 nm	±10 nm	1.2 mW	9 µm	$355
LD-1310-31BLaser Diode, Fiber Pigtailed, 1310 nm, 1.5 mW, 9/125 Single-mode, FC	UNIVERSAL	1310 nm	±30 nm	1.5 mW	9 µm	$405

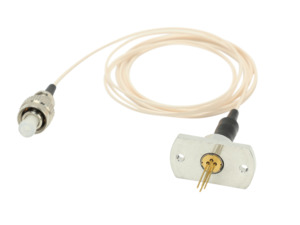

LD-1550-21BLaser Diode, Fiber Pigtailed, 1550 nm, 1.5 mW, 9/125 Single-mode, FC	UNIVERSAL	1550 nm	±15 nm	1.5 mW	9 µm	$745

Show Less

Features

Many Options in One Standard Package

A multitude of center wavelengths - ranging from 405 nm to 1650 nm - and power levels are offered in one standard size package, which is compatible with Temperature Controlled TO-CAN Laser Diode Mount. All laser diodes include a back facet monitor photodiode.

Connectorized Single-mode Output

These laser diodes have a one-meter single-mode fiber pigtail. All fiber pigtails are terminated with FC/PC fiber optic connectors except LD-1310-31B with FC/APC.

Caution on Electrostatic Discharge (ESD)

Each individual laser diode is tested and characterized, and guaranteed to operate, prior to shipment, by the renowned laser diode manufactures. The bare laser diodes are highly sensitive to ESD and it can happen from mundane activities such as connecting electrical cables. A grounding wrist strap, such as the , is recommended when handling the laser diode.

Laser Radiation Warning

Radiation emitted by laser devices can be dangerous to the eyes and appropriate precautions must be taken in use. (Ref. BS EN 60825, HD 482 S1 & IEC 825) VISIBLE LASER RADIATION)

Applications

Applications include high-speed data and telecommunications systems and instrumentation, and optical instruments requiring a laser diode light source.

Warranty

Warranty is only applicable to unopened packages with original seal unbroken. The fiber pigtailed laser diodes are backed by 30 day return-for-credit with the laser diode returned in the original sealed bag with no sign of physical damage.

Single Mode Fiber Pigtailed Laser Diodes

Single Mode Fiber Pigtailed Laser Diodes

Features

Many Options in One Standard Package

Connectorized Single-mode Output

Caution on Electrostatic Discharge (ESD)

Laser Radiation Warning

Applications

Warranty

Resources

Technical Notes

Literature

Related Products

Laser Diode Drivers

Laser Diode Controllers

Laser Diode Temperature Controllers

Collimated TO-56 and TO-9 Laser Diode Mounts

Multimode Fiber Pigtailed Laser Diodes

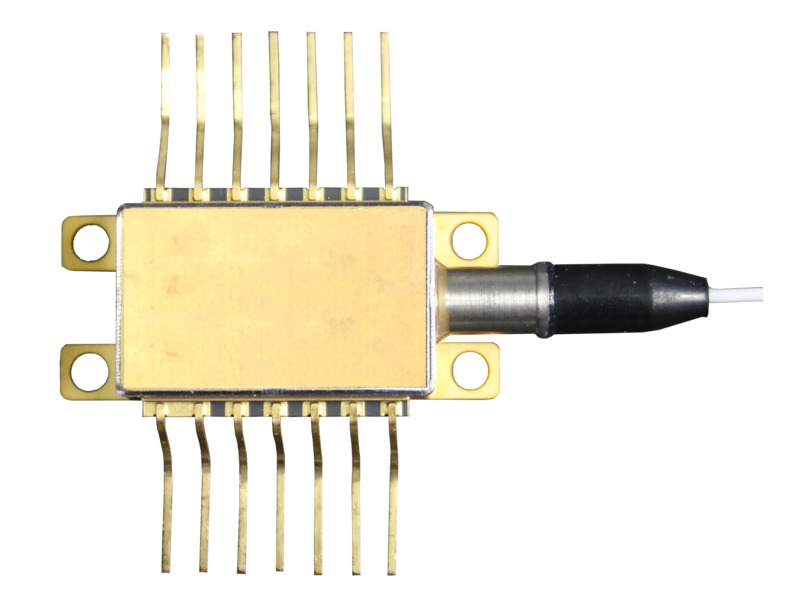

DFB Single-Frequency Fiber Pigtailed Laser Diodes
