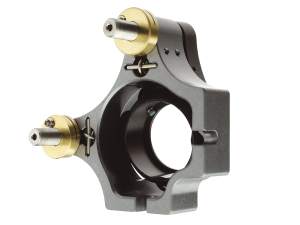

ULTIMA^® Gimbal Mirror Mounts

Gimbal mounts eliminate unwanted linear beam translation during adjustment. This is particularly important when you don't want to lengthen or shorten your optical path length after an adjustment.

Allows pure angular rotation of mirror
Accommodates mirrors diameters 0.5, 1, and 2 in.
Exchangeable actuators

See All Features

Description	Compatibility	Price
U100-G ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA<sup>®</sup>, Center, 1.0 in. Diameter, No Actuators	UNIVERSAL	$192
U100-G2H ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA<sup>®</sup>, Center, 1.0 in., 2 Locking 100-TPI Allen-Keys	UNIVERSAL	$249

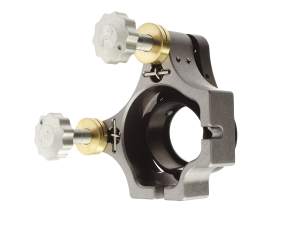

U100-G2K ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA<sup>®</sup>, Center, 1.0 in., 2 Locking 100-TPI Knobs	UNIVERSAL	$266

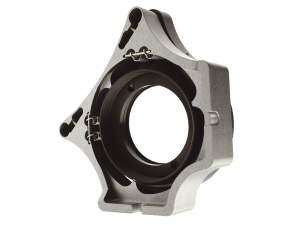

U200-G ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA<sup>®</sup>, Center, 2.0 in. Diameter, No Actuators	UNIVERSAL	$361

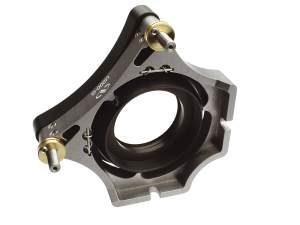

U200-G2H ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA<sup>®</sup>, Center, 2.0 in., 2 Locking 100-TPI Allen-Keys	UNIVERSAL	$413
U200-G2K ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA<sup>®</sup>, Center, 2.0 in., 2 Locking 100-TPI Knobs	UNIVERSAL	$420
U50-G ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA®, Center, 0.5 in, 2 Locking 80-TPI Allen-Keys	UNIVERSAL	$170
U50-G21 ULTIMA® Gimbal Mirror MountsGimbal Mirror Mount, ULTIMA<sup>®</sup>, Center, 0.5 in., 2 Locking 100-TPI Allen-Keys	UNIVERSAL	$183

Features

Gimbal vs. Non Gimbal Mounts

A gimbal mount has axes of rotation which intersect at the center front surface of the optic. When the mount is adjusted only the beam's angle changes, not its length. In contrast, a non-gimbal mount will shorten or lengthen a beam path as angle is adjusted.

Quickly Replaceable Actuators

The U100-G and the U200-G ULTIMA^® industry-standard clamp design allows many different types of actuators to be used to adjust the mirror position, to meet the requirements for any application. Actuators can be easily replaced by simply loosening two screws to let the actuator gently slide out from the mount. ULTIMA mounts are compatible not only with standard knob and hex-key adjustment screws, but also with micrometers and motorized actuators. See our Recommended Compatible Actuators in the Accessories section below.

Beam Splitting Aperture

ULTIMA Gimbal mounts feature an aperture designed for beam splitting. Because of the hollow-hemisphere design, beams are allowed to pass through the aperture allowing beam reflection and transmission. The aperture entrance is also designed with a deep 45-degree chamfer to accept beams at wide angles.

Accessories

Picomotor™ Piezo Version

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

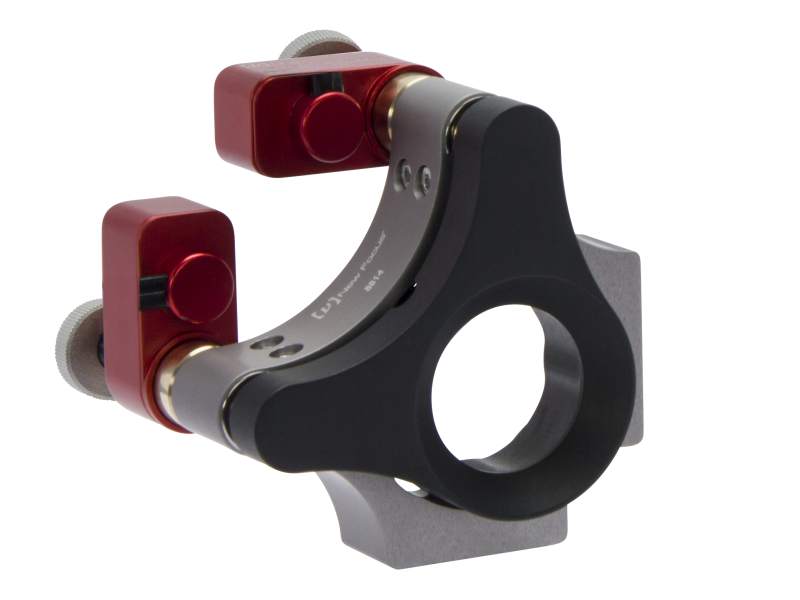

		8814 Picomotor Piezo Gimbal Mount, 1.0 in. Diameter, 2-Axis	UNIVERSAL			$1,719
		8816 Picomotor Piezo Gimbal Mount, 2.0 in. Diameter, 2-Axis	UNIVERSAL			$2,015

Recommended Compatible Actuators

Description	Compatibility	Price
AJS100-0.5 Adjustment Screw, 100 TPI, 12.7 mm Travel, Small Knob, Side Lock	UNIVERSAL	$39
AJS100-0.5H Hex Adjustment Screw, 100 TPI, 12.7 mm Travel, End Lock	UNIVERSAL	$39
AJS127-0.5K Adjustment Screw, 127 TPI, 12.7 mm Travel, Large Knob, Side Lock	UNIVERSAL	$56
AJS170-0.5K-NL Adjustment Screw, 170 TPI, 12.7 mm Travel, Large Knob	UNIVERSAL	$75
AJS254-0.5K-NL Adjustment Screw, 254 TPI, 12.7 mm, 280 nm Sensitivity, Large Knob	UNIVERSAL	$93
DM-13L Lockable Differential Micrometer, 13 mm Coarse, 0.2 mm Fine, 11 lb.	UNIVERSAL	$726
HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel	UNIVERSAL	$229
LTA-HS Motorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread	UNIVERSAL	$2,463
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	$103
TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor	UNIVERSAL	$1,065
TRA12PPD Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	$1,065

Additional Beam Splitting Mounts

Description	Compatibility	Price

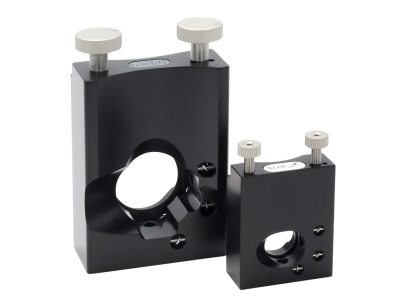

9774 Mirror Mount, Top Adjust, 1.0 in. Diameter, 2 Knob Adjustment	UNIVERSAL	$196

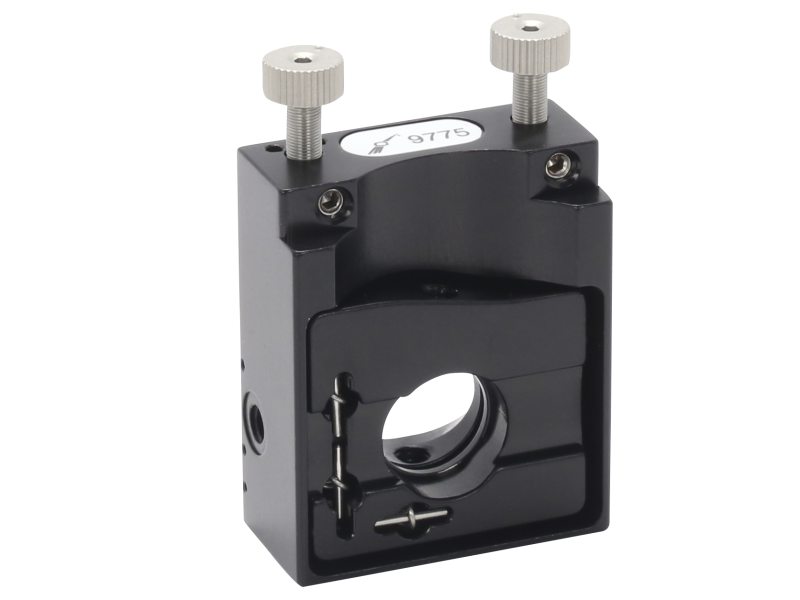

9775 Mirror Mount, Pint-Sized, 0.5 in. Diameter, 2 Knob Top Adjust	IMPERIAL	$193

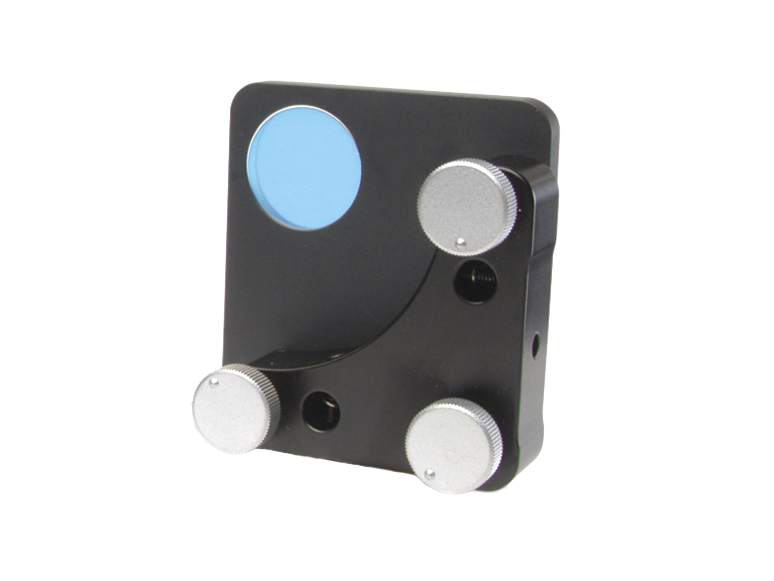

9809NF Mirror Mount, Classic, Corner, 1.0 in., 3 Knobs	UNIVERSAL	$151
HVM-05r Mirror Mount, Industrial, Vertical Drive, Rear Load, 0.5 in., 2 Locking Allen-Keys	UNIVERSAL	$209
HVM-1i Mirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32	IMPERIAL	$199
SL25.4BM Gimbal Optical Mount, 1.0 in. Diameter, (2) BM Micrometers	UNIVERSAL	$1,175
SL51BM Gimbal Optical Mount, 2.0 in. Diameter, (2) BM Micrometers	UNIVERSAL	$1,482
