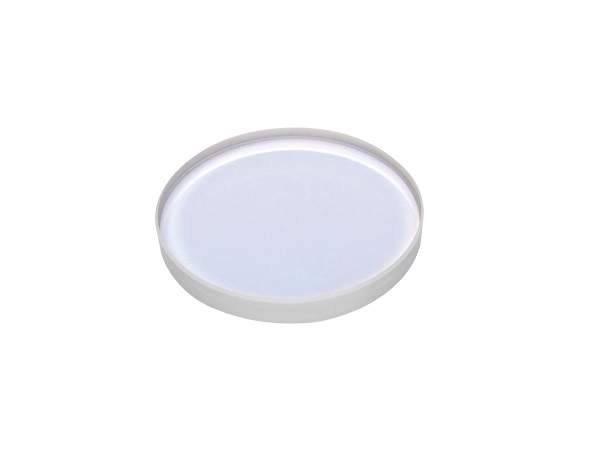

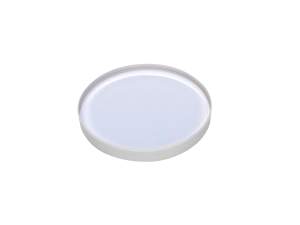

High Energy Laser Line Optical Windows

High energy parallel windows are made with low-scatter excimer grade UV Fused Silica and optimized for high power Nd:YAG laser systems. Each surface is coated with a high efficiency, high damage-threshold antireflection coating.

High efficiency, high damage threshold, Laser Line V-Coatings
Excimer Grade UV Fused Silica for excellent thermal stability
<5 arc-second parallelism
Fine low-scatter surface with 10-5 scratch-dig surface quality
Damage resistant up to 10 J/cm²

See All Features

Show Filters:

Showing 12 of 12 total products

Compatibility:

Description	Compatibility	Diameter	Antireflection Coating	Price
05QW20-1Optical Window, High Power, Laser Line, 12.5 mm Diameter, 1064 nm	UNIVERSAL	12.5 mm	1064 nm	$179
05QW20-2Optical Window, High Power, Laser Line, 12.5 mm Diameter, 532 nm	UNIVERSAL	12.5 mm	532 nm	$179
05QW20-3Optical Window, High Power, Laser Line, 12.5 mm Diameter, 355 nm	UNIVERSAL	12.5 mm	355 nm	$189
05QW20-4Optical Window, High Power, Laser Line, 12.5 mm Diameter, 266 nm	UNIVERSAL	12.5 mm	266 nm	$195
10QW20-1Optical Window, High Power Laser Line, 25.0 mm Diameter, 1064 nm	UNIVERSAL	25.0 mm	1064 nm	$227
10QW20-2Optical Window, High Power Laser Line, 25.0 mm Diameter, 532 nm	UNIVERSAL	25.0 mm	532 nm	$227
10QW20-3Optical Window, High Power Laser Line, 25.0 mm Diameter, 355 nm	UNIVERSAL	25.0 mm	355 nm	$227
10QW20-4Optical Window, High Power Laser Line, 25.0 mm Diameter, 266 nm	UNIVERSAL	25.0 mm	266 nm	$230
20QW20-1Optical Window, High Power Laser Line, 50 mm Diameter, 1064 nm	UNIVERSAL	50.0 mm	1064 nm	$357
20QW20-2Optical Window, High Power Laser Line, 50 mm Diameter, 532 nm	UNIVERSAL	50.0 mm	532 nm	$357
20QW20-3Optical Window, High Power Laser Line, 50 mm Diameter, 355 nm	UNIVERSAL	50.0 mm	355 nm	$375
20QW20-4Optical Window, High Power Laser Line, 50 mm Diameter, 266 nm	UNIVERSAL	50.0 mm	266 nm	$384

Show Less

Specifications

Material
Excimer Grade UV Fused Silica
Surface Flatness
λ/10 @ 632.8 nm
Surface Quality
10-5 scratch-dig
Thickness
3.0 mm
Thickness Tolerance
±0.10 mm
Wavefront Distortion
λ/20 @ 632.8 nm, transmitted

Parallelism
5 arc seconds
Cleaning
See How to Clean Optics
Clear Aperture
Central 90% of diameter
Diameter Tolerance
+0/-0.10 mm
Angle of Incidence
0°

Features

Optimized for Nd:YAG Laser Applications

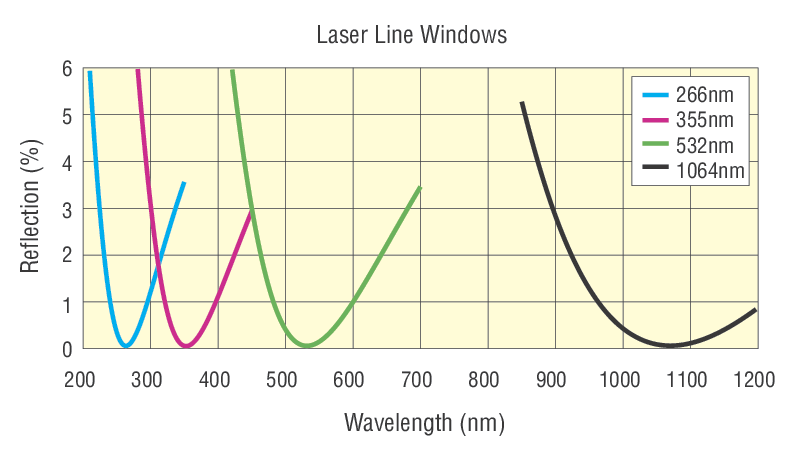

Each surface of our High Energy Parallel Windows is coated with a high efficiency, high damage threshold V-coating. Coatings are available to maximize transmission at 1064nm, 532nm, 355nm and 266nm, corresponding to the 1st, 2nd, 3rd, and 4th harmonics for Nd:YAG lasers.

High Precision Manufacturing

These high energy parallel windows are manufactured to the highest precision with flatness up to λ/10 for low distortion and < 5 arc second parallelism for exceptionally low beam deviation.

Low Scatter

Our high energy parallel windows are made with the finest quality excimer grade UV fused silica material for extremely low bulk scatter and autofluoresence. These optics boast a high quality surface of 10-5 scratch-dig for very low surface scatter.

Accessories

Description	Compatibility	Price
LH-0.5AFixed Lens Mount, 0.50 in. (12.7 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	$20
LH-1TThin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 Thread., A-LINE	IMPERIAL	$21
LH-2AFixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE	IMPERIAL	$36
