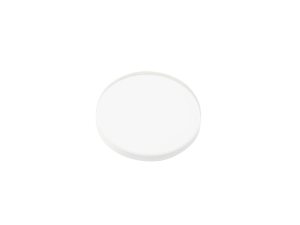

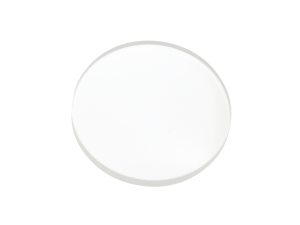

UV Fused Silica Optical Windows

UV Fused Silica Windows feature low distortion, excellent parallelism, low bulk scattering and fine surface quality. This makes them perfectly suited for a wide variety of demanding applications, including multiphoton imaging systems and intracavity laser applications.

Extremely low bulk scatter and autofluorescence
Available in high flatness λ/20 or general purpose λ/10
<30 arc-second parallelism
Fine, low scatter surface up to 10-5 scratch-dig

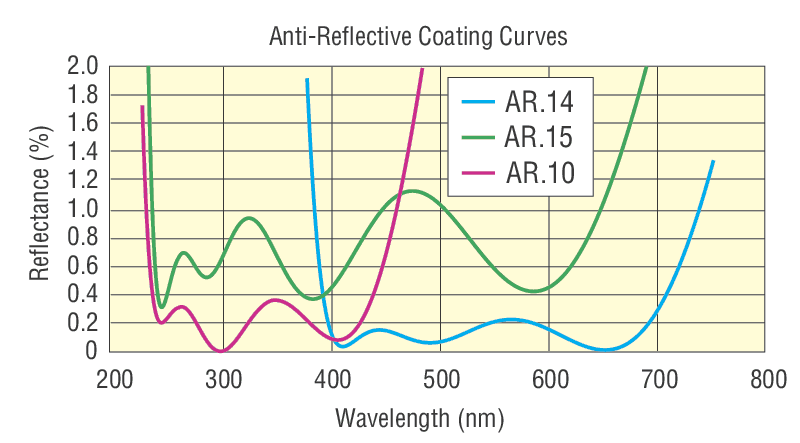

Broadband AR coatings for UV, visible or IR applications

See All Features

Show Filters:

Showing 54 of 54 total products

Compatibility:

Description	Compatibility	Diameter	Antireflection Coating	Thickness	Surface Flatness	Surface Quality	Price
05QW40-30Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, Uncoated	UNIVERSAL	12.7 mm	Uncoated	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$139
05QW40-30AR.10Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 245-440 nm	UNIVERSAL	12.7 mm	245-440 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$172
05QW40-30AR.14Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 430-700 nm	UNIVERSAL	12.7 mm	430-700 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$146
05QW40-30AR.16Parallel Optical Window, UV Fused Silica, 12.7 mm, ≤λ/20, 650-1000nm	UNIVERSAL	12.7 mm	650-1000 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$162
05QW40-30AR.18Parallel Optical Window, UV Fused Silica, 12.7mm, ≤λ/20, 1000-1550nm	UNIVERSAL	12.7 mm	1000-1550 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$162
10QW40-30Optical Window, Parallel, UV Fused Silica, 25.4 mm, ≤λ/20, Uncoated	UNIVERSAL	25.4 mm	Uncoated	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$191
10QW40-30AR.10Optical Window, Parallel, UVFS, 25.4 mm,≤λ/20, 245-440 nm	UNIVERSAL	25.4 mm	245-440 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$230
10QW40-30AR.14Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 430-700 nm	UNIVERSAL	25.4 mm	430-700 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$202
10QW40-30AR.16Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 650-1000 nm	UNIVERSAL	25.4 mm	650-1000 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$216
10QW40-30AR.18Optical Window, Parallel, UVFS, 25.4 mm, ≤λ/20, 1000-1550 nm	UNIVERSAL	25.4 mm	1000-1550 nm	6.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$216
20QW40-30Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, Uncoated	UNIVERSAL	50.8 mm	Uncoated	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$433
20QW40-30AR.10Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 245-440 nm	UNIVERSAL	50.8 mm	245-440 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$495
20QW40-30AR.14Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 430-700 nm	UNIVERSAL	50.8 mm	430-700 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$450
20QW40-30AR.16Parallel Optical Window, UV Fused Silica, 50.8 mm, λ/20, 650-1000 nm	UNIVERSAL	50.8 mm	650-1000 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$473
20QW40-30AR.18Parallel Optical Window, UV Fused Silica, 50.8mm, λ/20, 1000-1550 nm	UNIVERSAL	50.8 mm	1000-1550 nm	10.0 mm	λ/20 @ 632.8 nm	10-5 scratch-dig	$473
FSW10Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, Uncoated	UNIVERSAL	5.0 mm	Uncoated	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$130
FSW10AR.10Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 250-450 nm	UNIVERSAL	5.0 mm	250-450 nm	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$145
FSW10AR.14Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 425-675 nm	UNIVERSAL	5.0 mm	425-675 nm	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$145
FSW10AR.15Parallel Optical Window, UV Fused Silica, 5.0 mm, λ/10, 250-700 nm	UNIVERSAL	5.0 mm	250-700 nm	1.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$145
FSW11Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, Uncoated	UNIVERSAL	10.0 mm	Uncoated	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$116
FSW11AR.10Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 250-450 nm	UNIVERSAL	10.0 mm	250-450 nm	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$136
FSW11AR.14Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 425-675 nm	UNIVERSAL	10.0 mm	425-675 nm	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$136
FSW11AR.15Parallel Optical Window, UV Fused Silica, 10.0 mm, λ/10, 250-700 nm	UNIVERSAL	10.0 mm	250-700 nm	1.3 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$136
FSW12Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, Uncoated	UNIVERSAL	12.5 mm	Uncoated	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$117
FSW12AR.10Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-450 nm	UNIVERSAL	12.5 mm	250-450 nm	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$138
FSW12AR.14Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 425-675 nm	UNIVERSAL	12.5 mm	425-675 nm	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$138
FSW12AR.15Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-700 nm	UNIVERSAL	12.5 mm	250-700 nm	1.5 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$138
FSW13Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, Uncoated	UNIVERSAL	15.0 mm	Uncoated	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$133
FSW13AR.10Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 250-450 nm	UNIVERSAL	15.0 mm	250-450 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$151
FSW13AR.14Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 425-675 nm	UNIVERSAL	15.0 mm	425-675 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$151
FSW13AR.15Parallel Optical Window, UV Fused Silica, 15.0 mm, λ/10, 250-700 nm	UNIVERSAL	15.0 mm	250-700 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$151
FSW14Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, Uncoated	UNIVERSAL	20.0 mm	Uncoated	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$139
FSW14AR.10Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 250-450 nm	UNIVERSAL	20.0 mm	250-450 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$162
FSW14AR.14Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 425-675 nm	UNIVERSAL	20.0 mm	425-675 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$162
FSW14AR.15Parallel Optical Window, UV Fused Silica, 20.0 mm, λ/10, 250-700 nm	UNIVERSAL	20.0 mm	250-700 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$162
FSW15Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, Uncoated	UNIVERSAL	25.0 mm	Uncoated	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$147
FSW15AR.10Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 250-450 nm	UNIVERSAL	25.0 mm	250-450 nm	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$167
FSW15AR.14Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 425-675 nm	UNIVERSAL	25.0 mm	425-675 nm	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$167
FSW15AR.15Parallel Optical Window, UV Fused Silica, 25.0 mm, λ/10, 250-700 nm	UNIVERSAL	25.0 mm	250-700 nm	3.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$167
FSW16Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, Uncoated	UNIVERSAL	30.0 mm	Uncoated	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$174
FSW16AR.10Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 250-450 nm	UNIVERSAL	30.0 mm	250-450 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$200
FSW16AR.14Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 425-675 nm	UNIVERSAL	30.0 mm	425-675 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$200
FSW16AR.15Parallel Optical Window, UV Fused Silica, 30.0 mm, λ/10, 250-700 nm	UNIVERSAL	30.0 mm	250-700 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$200
FSW17Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, Uncoated	UNIVERSAL	40.0 mm	Uncoated	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$201
FSW17AR.10Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 250-450 nm	UNIVERSAL	40.0 mm	250-450 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$224
FSW17AR.14Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 425-675 nm	UNIVERSAL	40.0 mm	425-675 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$224
FSW17AR.15Parallel Optical Window, UV Fused Silica, 40.0 mm, λ/10, 250-700 nm	UNIVERSAL	40.0 mm	250-700 nm	4.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$224
FSW18Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, Uncoated	UNIVERSAL	50.0 mm	Uncoated	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$252
FSW18AR.10Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 250-450 nm	UNIVERSAL	50.0 mm	250-450 nm	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$273
FSW18AR.14Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 425-675 nm	UNIVERSAL	50.0 mm	425-675 nm	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$273
FSW18AR.15Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, 250-700 nm	UNIVERSAL	50.0 mm	250-700 nm	5.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$273
FSW19AR.10Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-425 nm, 2 mm	UNIVERSAL	12.5 mm	250-425 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$205
FSW19AR.14Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 425-675 nm, 2 mm	UNIVERSAL	12.5 mm	425-675 nm	2.00 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$195
FSW19AR.15Parallel Optical Window, UV Fused Silica, 12.5 mm, λ/10, 250-700 nm, 2 mm	UNIVERSAL	12.5 mm	250-700 nm	2.0 mm	λ/10 @ 632.8 nm	20-10 scratch-dig	$174

Show Less

Features

UV Fused Silica for UV, Laserline & Broadband Applications

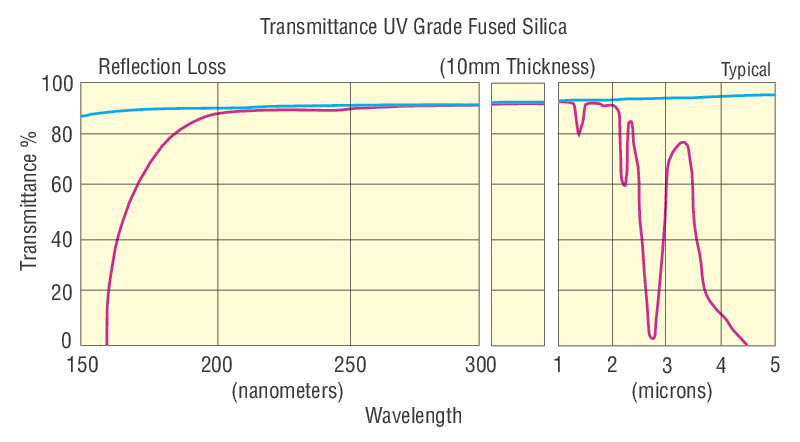

UV Grade Fused Silica is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities, and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage. Compared with other optical glasses (like N-BK7), UV Fused Silica has very low autofluoresence and scattering.
