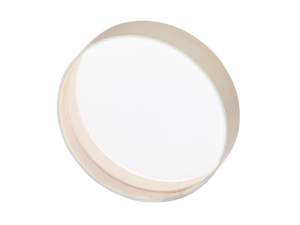

High-Energy Nd:YAG Laser 50/50 Beamsplitters
High-Energy Nd:YAG Laser 50/50 Beamsplitters
Our high-energy Nd:YAG laser 50/50 beamsplitters are manufactured using high purity fused silica substrates and ultrahard dielectric coatings. These beamsplitters have been tested and certified to withstand high-energy pulses and have a high damage threshold.
- Designed for Nd:YAG laser fundamental and harmonics
- Equal 50/50 (R/T) beam split for S or P polarization
- Low wavefront distortion
- Hard refractory coatings for high damage threshold
- 10-5 scratch-dig surface quality
- AR coated back surface eliminates ghosting See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 10Q20HBS.11P High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 266 nm, P-Pol | |||||
 | 10Q20HBS.11S High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 266 nm, S-Pol | |||||
| 10Q20HBS.13P High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 355 nm, P-Pol | |||||

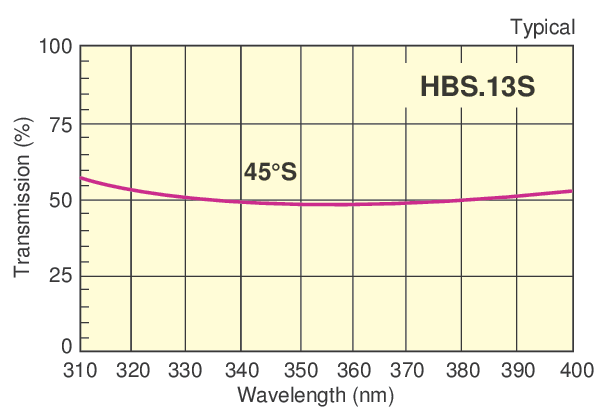

| 10Q20HBS.13S High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 355 nm, S-Pol | |||||
| 10Q20HBS.27P High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 532 nm, P-Pol | |||||
| 10Q20HBS.27S High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 532 nm, S-Pol | |||||
| 10Q20HBS.33P High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 1064 nm, P-Pol | |||||
| 10Q20HBS.33S High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 1064 nm, S-Pol | |||||
 | 20Q20HBS.11P High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 50.8 mm, 266 nm, P-Pol | |||||
| 20Q20HBS.11S High-Energy Nd:YAG Laser 50 Percent BeamsplittersNd:YAG Beamsplitter, High-Energy, 50/50, 50.8 mm, 266 nm, S-Pol |
Features
Versatile Coating Options

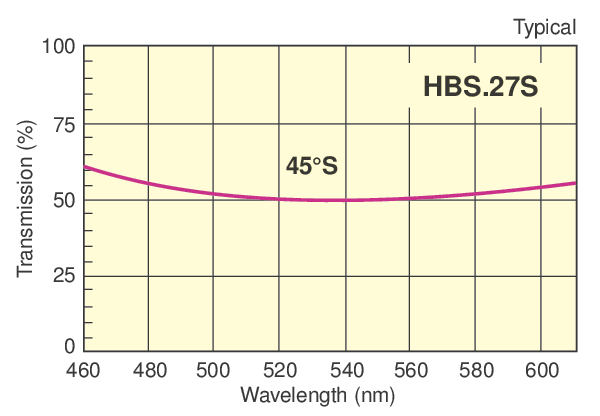

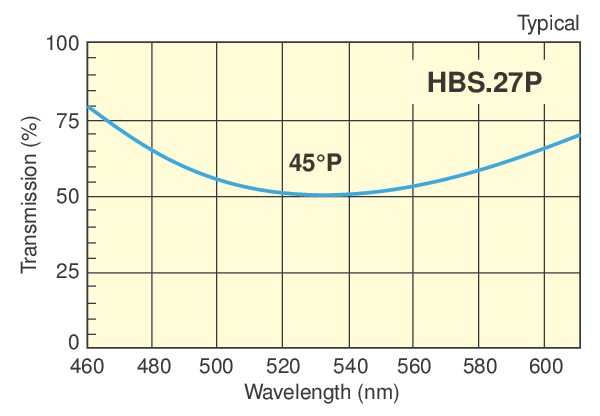

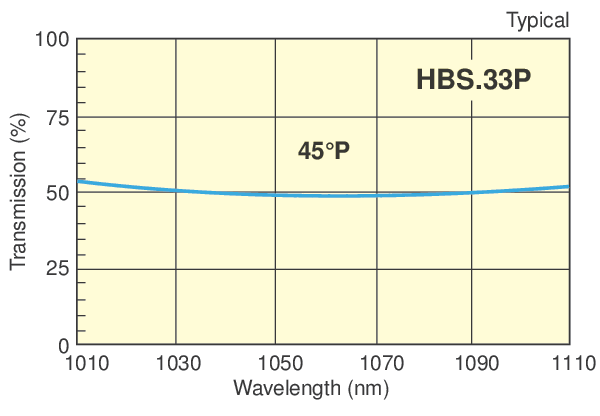

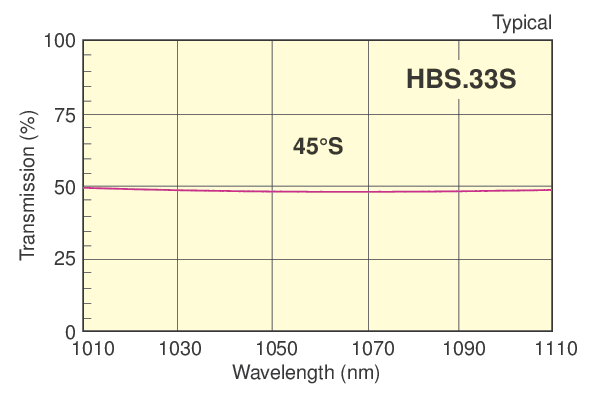

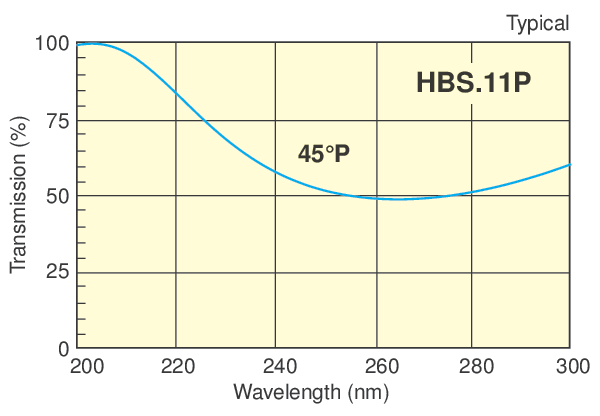

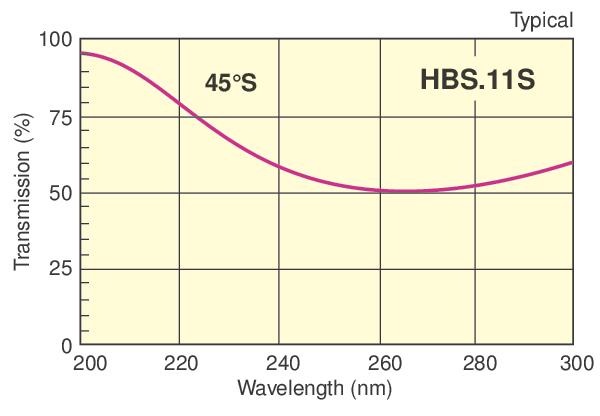

Beamsplitter coatings are available with a choice of wavelengths corresponding to each of the harmonics of the Nd:YAG (1064nm, 532nm, 355nm, 266nm) and optimized for equal 50/50 (R/T) split of P- or S- polarization. A V-coat antireflection coating optimized for 45° angle of incidence beams is applied on the back surface to minimize ghost reflections.
UV Fused Silica Substrate
UV Grade Fused Silica is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.
Slight Wedge Suppresses Unwanted Fringes

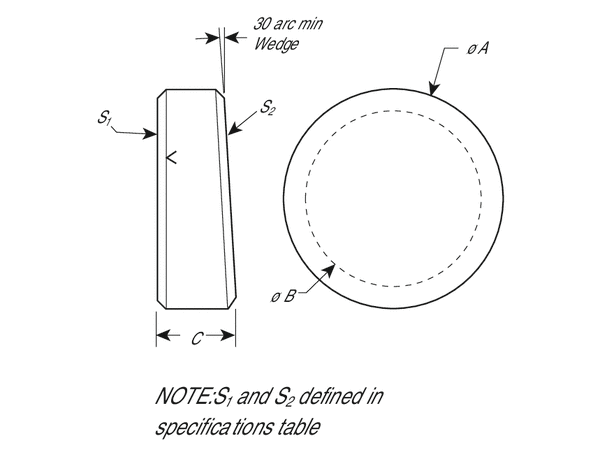

Optics with perfectly parallel faces are unsuited for use as reference elements in laser setups as reflections from both surfaces would be collinear resulting in undesired large period fringes. The introduction of a slight wedge causes unwanted reflections from the second surface to be deflected from the optical path. The back surface (S2) of these beam samplers is slightly wedged and an arrow on the side points to the non-wedged side (S1).
High Damage Threshold
High fluence Nd:YAG lasers may be used safely with these splitters. Extra durable multilayer coatings are used for both the front beamsplitting surface, and the AR-coated back surface. This results in typical damage threshold at 1064nm of 5 MW/cm2 for CW, 5 J/cm2 for 0.1–100 nsec pulses. Typical damage threshold at 532nm is 2.5 MW/cm2 for CW, 2.5 J/cm2 for 0.1–100 nsec pulses.
