High-Energy Laser Line Polarizing Cube Beamsplitters

High-energy polarizing cube beamsplitters provide efficient narrowband polarization for use with Nd:YAG lasers. Each polarizer consists of a pair of precision right-angle prisms optically contacted together. No cement is used. Cubes are optimized for either 532 or 1064 nm, with a damage threshold of up to 10 J/cm² is a achievable.

Damage threshold up to 10 J/cm²
No cement, optically contacted, Extinction ratio >200:1
Low wavefront distortion

See All Features

Description	Compatibility	Avail.	Price
05BC15PH.1 High Energy Laser Line Polarizing Cube BeamsplittersPolarizing Cube Beamsplitter, High Energy Nd:YAG, 12.7 mm, 248 nm	UNIVERSAL	Discontinued
05BC15PH.10 High Energy Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, High Energy Nd:YAG, 5.0 mm, 1550 nm	UNIVERSAL		$1,059
05BC15PH.13 High Energy Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, High Energy Nd:YAG, 12.7 mm, 405 nm	UNIVERSAL		$1,006
05BC15PH.2 High Energy Laser Line Polarizing Cube BeamsplittersPolarizing Cube Beamsplitter, High Energy Nd:YAG, 12.7 mm, 266 nm	UNIVERSAL		$1,080
05BC15PH.3 High Energy Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, High Energy Nd:YAG, 12.7 mm, 532 nm	UNIVERSAL		$1,006
05BC15PH.4 High Energy Laser Line Polarizing Cube BeamsplittersPolarizing Cube Beamsplitter, High Energy Nd:YAG, 12.7 mm, 355 nm	UNIVERSAL		$1,199
05BC15PH.9 High Energy Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, High Energy Nd:YAG, 12.7 mm, 1064 nm	UNIVERSAL		$1,006
07BC15PH.10 High Energy Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, High Energy Nd:YAG, 10.0 mm, 1550 nm	UNIVERSAL		$1,332
10BC15PH.4 High Energy Laser Line Polarizing Cube BeamsplittersPolarizing Cube Beamsplitter, High Energy Nd:YAG, 25.4 mm, 355 nm	UNIVERSAL		$1,626

Mounting Options

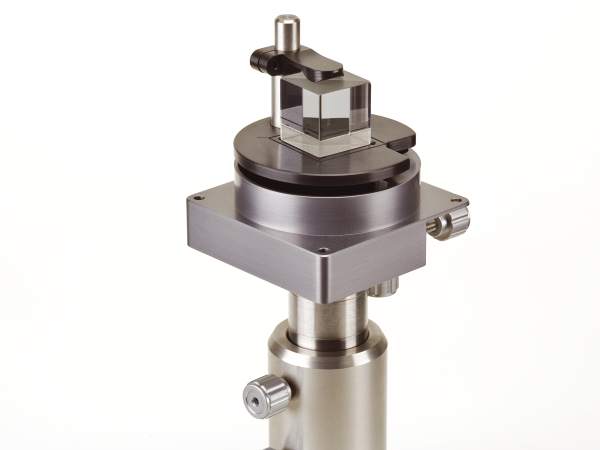

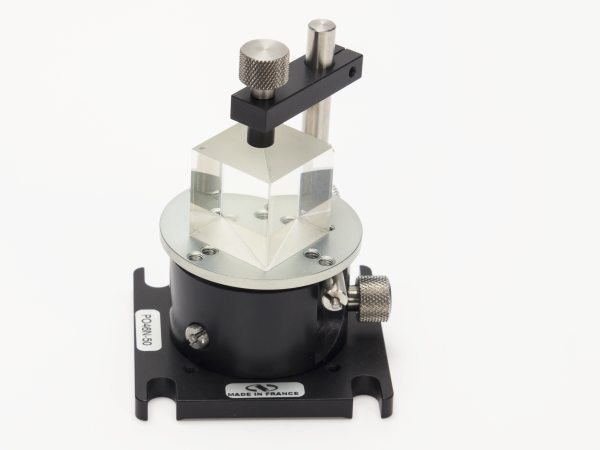

Mount Type	Platform Mount		Prism Stage

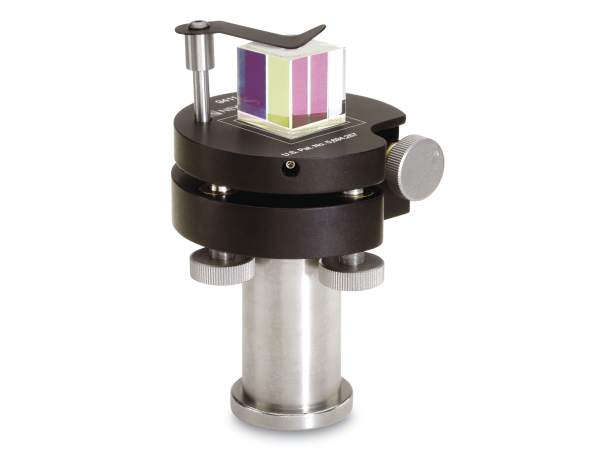

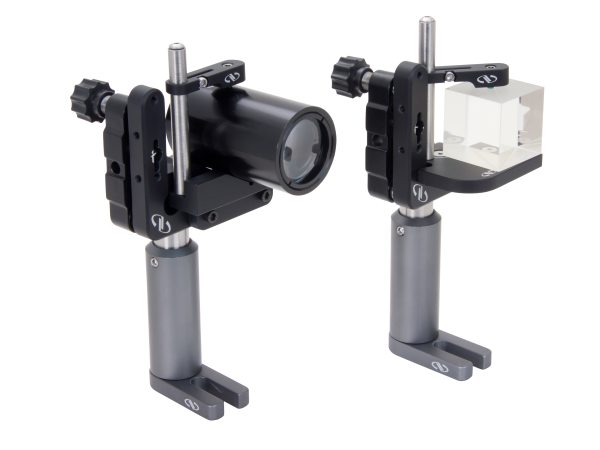

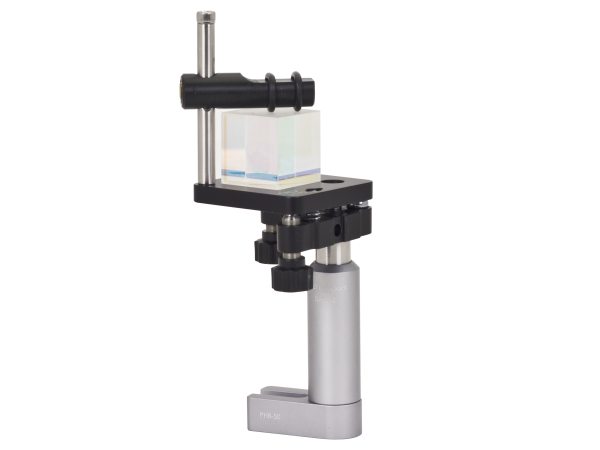

Models	M1-P2	M1-PT	PO46-50 Series	9411 9481	UGP-1	Q-IBC-1
Accessories	Requires PT-1C	Included TC-1 & OC1-GR-2	–	–	Optional UGP-KIT-1
Adjustments	2-axis		3-axis
Compatible Cube Sizes	5.0-50.8 mm	5.0-25.4 mm		6.35-25.4 mm	12.7-25.4 mm
Special Features	–	–	Table Mount	–	Gimbal	Gimbal, AegisQube™ System Compatibility


Mount Type	Cube Mount

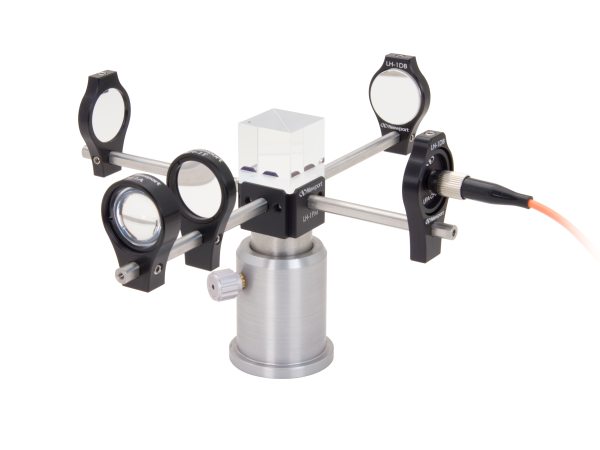

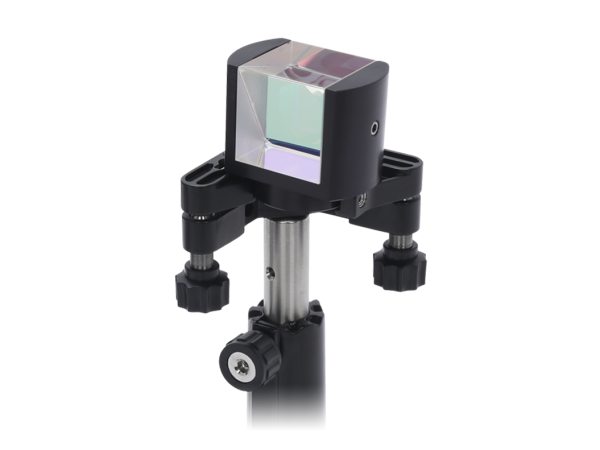

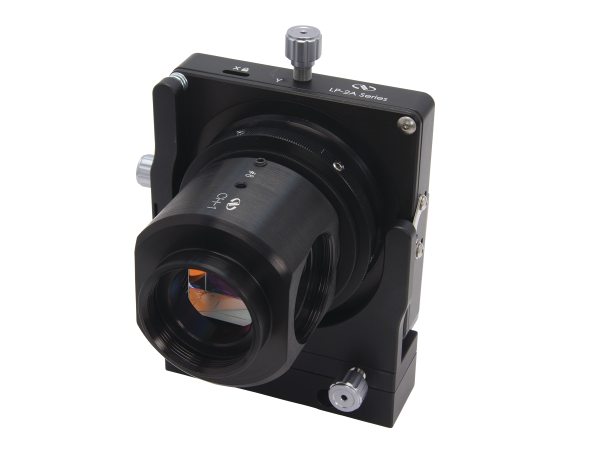

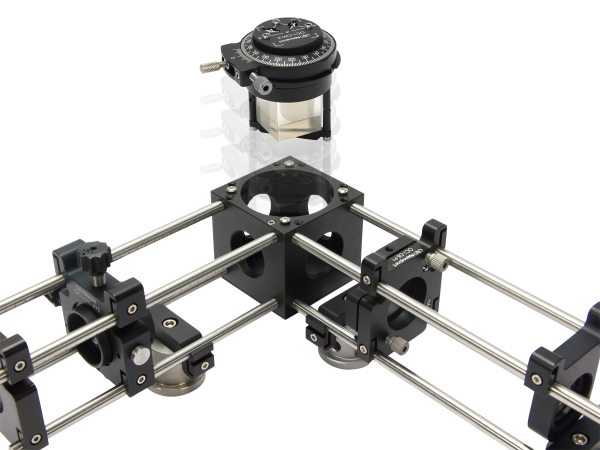

Models	LH-1PM	CH-0.5 CH-1	UPA-CH.5 UPA-CH1	OC1-CM-P	OC1-CM-A
Accessories	–	–	–	–	Optional UGP-KIT-1
Adjustments	Fixed¹				1-axis
Compatible Cube Sizes	25.4 mm	12.7, 25.4 mm		25.4 mm	12.7, 25.4 mm

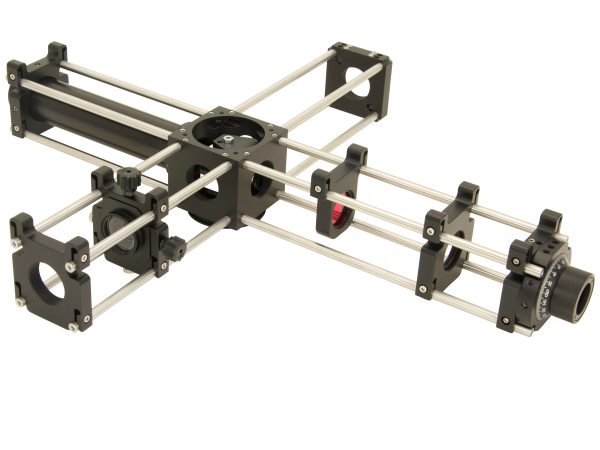

Special Features	A-Line™ System Compatibility	Lens or Rotation Mount Compatibility	OpticsCage+™ or Mirror Mount Compatibility	OpticsCage+™ System Compatibility

¹Adjustments are added to the CH and UPA-CH series cube mounts when being held by a kinematic or rotary mount.

Features

Multilayer V-Coatings

The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for wavelength at 405, 532, 1064, or 1550 nm.

Optical Contact for High Damage Threshold

These high power cube beamsplitters are formed by optically contacting two right angle prisms together. One of the two prisms has the partially reflective dielectric coating applied to its hypotenuse. Then a special process allows for the two surfaces to be contacted. Optical contacting is a difficult procedure and will work only if the two mating surfaces are very flat and very clean. Because of the extra labor involved in optical contacting, this process is reserved only for higher power, more demanding applications.

High Polarization Extinction Ratio

An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 200:1. This unique component provides all the benefits of a thin film plate polarizer in a standard cube configuration.
