Cube Beamsplitter Holders
Cube Beamsplitter Holders

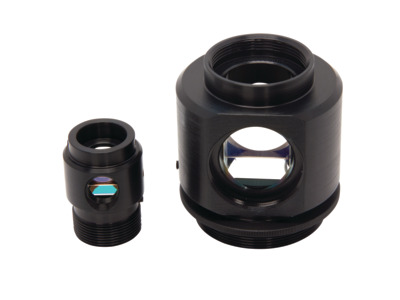

These cube beam splitter adaptors can be used as stand-alone fixed mounts, but are designed to work with LP-Series Lens Mounts. Their modular design allows optics that are commonly used with beamsplitters, such as wave plates, polarizers, filters, lenses, and mirrors to be quickly attached to create variable attenuators, optical isolators or T-splitters.
- Adapt optical cubes to Newport's lens and rotation mounts
- Integrate cube beamsplitters & round optics into a single unit
- Post-mountable for simple fixed Cube mounting See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BSP025 Cube Beamsplitter Holders Cube Beamsplitter Holder, 0.25 in. Cube, 1.035-40 Threaded Mounts | |||||
 | BSP05 Cube Beamsplitter Holders Cube Beamsplitter Holder, 0.5 in. Cube, 1.035-40 Threaded Mounts | |||||

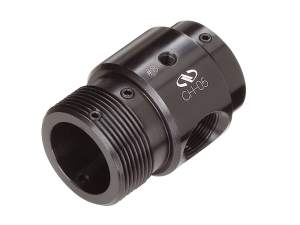

 | CH-0.5 Cube Beamsplitter Holders Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts | |||||

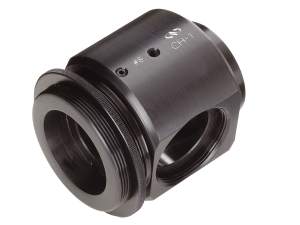

 | CH-1 Cube Beamsplitter Holders Cube Beamsplitter Holder, 1.0 in. Cubes, 2.063-20 Threaded Mounts |
Features
Build Useful Optical Assemblies

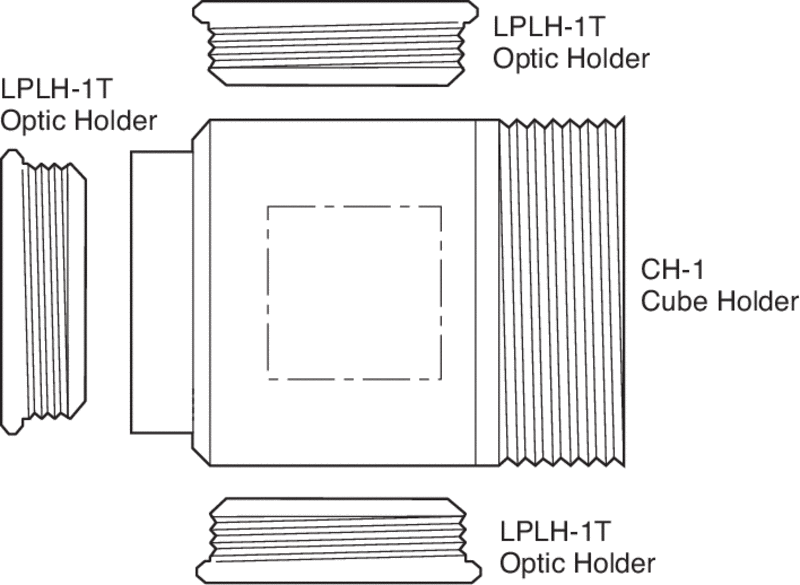

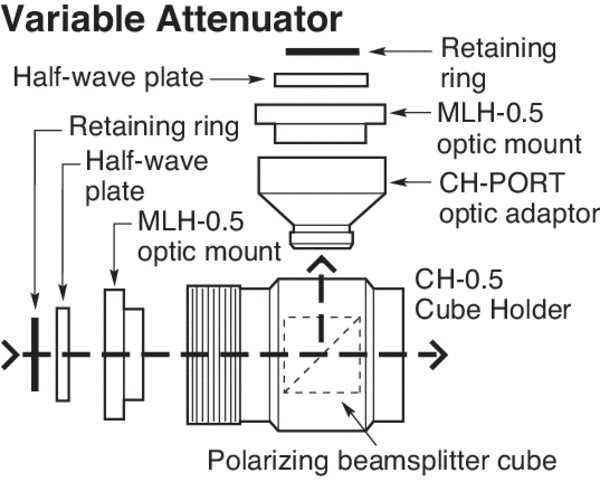

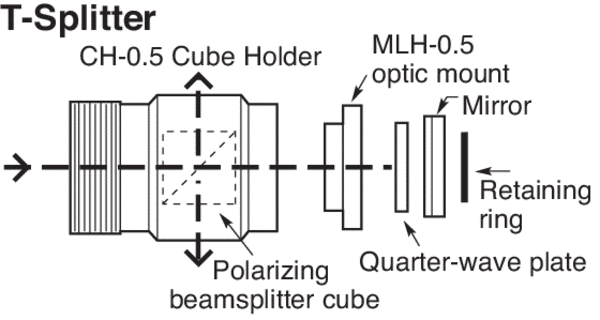

The modular design of the CH Series cube mounts allows additional optics that are commonly used with beamsplitters, such as wave plates, polarizers, filters, lenses, and mirrors to be quickly attached to create variable attenuators, optical isolators, or T-splitters.

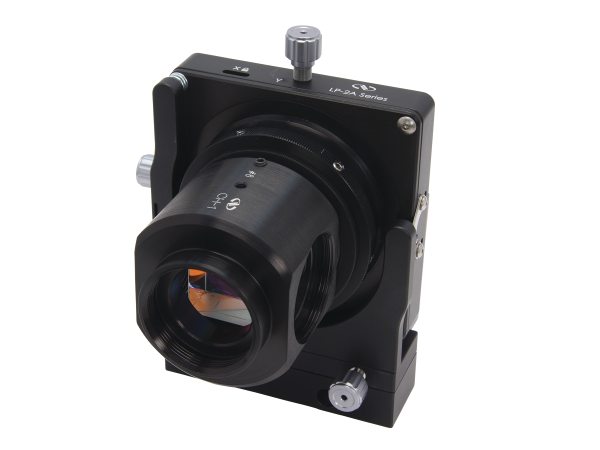

These cube beam splitter adaptors are also compatible with LP-A Series precision multi-axis lens positioners and a variety of rotation stages with matching threads, which include high-performance 481-A, RSP, and low-profile RS65 Series.
Integrate Standard Optics with Ease
Quarter and Half Inch Cube Beamsplitter Holders
