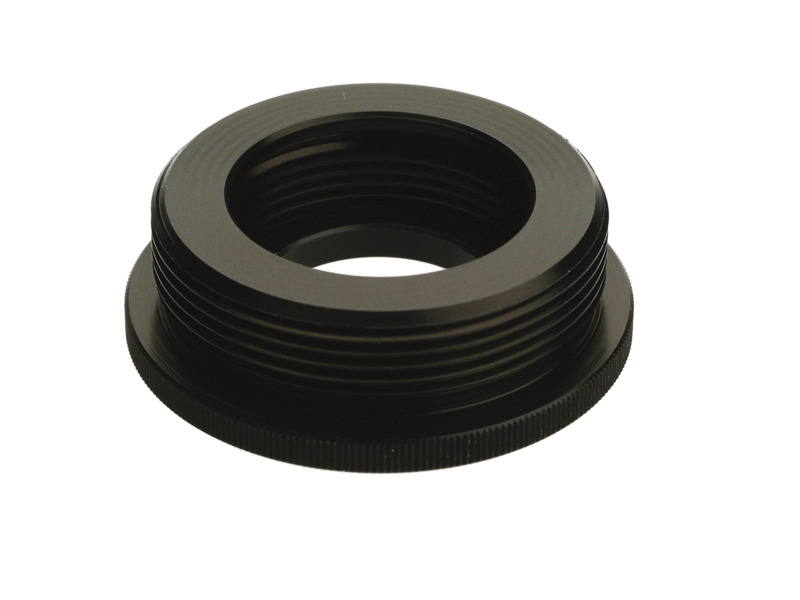

Optic Holder, 1.0 inch Diameter, 1.438-20 Thread, For LP-1A Series

The LPLH-1T Optic Holder is useful for precision positioning 1.0 inch (25.4 mm) diameter optics. It features 1.438-20 threads for use in LP-1A Series multi-axis lens positioners. It includes a reataing ring to secure the 1 in. optic.

Specifications

Technical Specs

Type
Optic Holder
Optic Diameter
25.4 mm
Use
LP-1A Lens Positioners

Retaining Ring Thread
1.063-20
Thread Type
1.438-20

Type
Optic Holder
Optic Diameter
25.4 mm
Use
LP-1A Lens Positioners

Retaining Ring Thread
1.063-20
Thread Type
1.438-20

Resources & Downloads

3D Product Models

2D Product Drawings

LPLH-751-5TA-S(126.7 kB, PDF)

Other

LPLH-1T RoHS Certificate(277.3 kB, PDF)
LPLH-1T_RoHS2021.pdf(679.3 kB, PDF)
