Optic Holder, 0.5 in. Diameter, 0.875-20Thread, For LP-05A Series

Precision Multi-Axis Lens Positioners

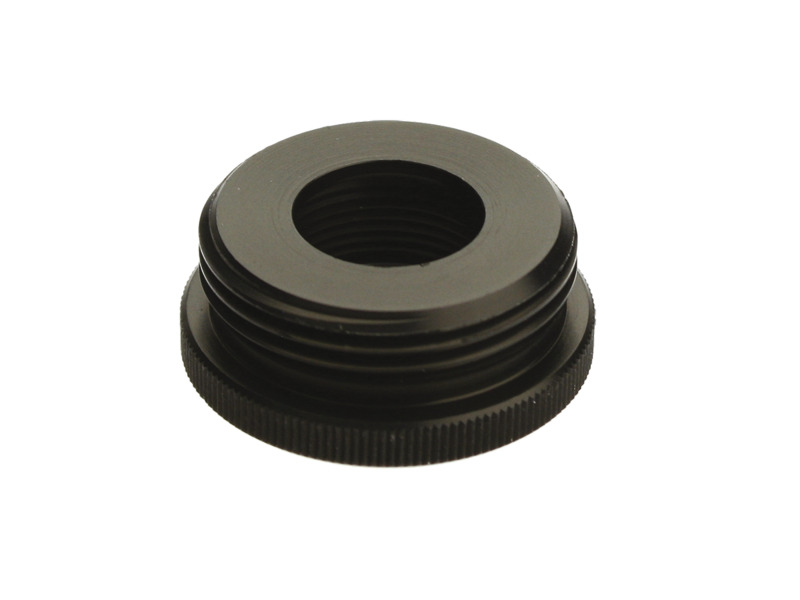

The LPLH-50T Optic Holder is useful for precision positioning 1/2 inch (12.7 mm) diameter optics. It features 0.875-20 threads for use in LP-05A Series multi-axis lens positioners. It includes a reataing ring to secure the 0.5 in. optic.

Specifications

Technical Specs

Type
Optic Holder
Optic Diameter
12.7 mm
Use
LP-05A Lens Positioners
Retaining Ring
(Included)

Retaining Ring Thread
0.546-32
Thread Type
0.875-20

Type
Optic Holder
Optic Diameter
12.7 mm
Use
LP-05A Lens Positioners
Retaining Ring
(Included)

Retaining Ring Thread
0.546-32
Thread Type
0.875-20

Resources & Downloads

Drawings And Cad

LPLH-751-5TA-S(126.7 kB, PDF)

Other

LPLH-50T RoHS Certificate(277.8 kB, PDF)
LPLH-50T_RoHS2021.pdf(681.3 kB, PDF)
