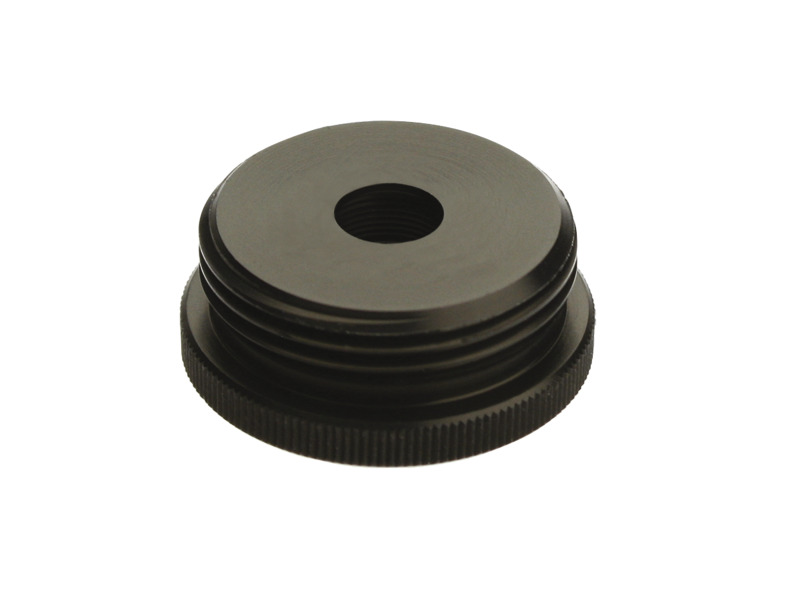

Optic Holder, 0.25 in. Diameter, 0.875-20 Thread, For LP-05A Series

The LPLH-25T Optic Holder is useful for precision positioning 1/4 inch (6.35 mm) diameter optics. It features 0.875-20 threads for use in LP-05A Series multi-axis lens positioners. It includes a reataing ring to secure the 0.25 in. optic.

Specifications

Technical Specs

Type
Optic Holder
Optic Diameter
6.35 mm
Use
LP-05A Lens Positioners

Retaining Ring Thread
0.281-32
Thread Type
0.875-20

Type
Optic Holder
Optic Diameter
6.35 mm
Use
LP-05A Lens Positioners

Retaining Ring Thread
0.281-32
Thread Type
0.875-20

Resources & Downloads

3D Product Models

2D Product Drawings

LPLH-751-5TA-S(126.7 kB, PDF)

Other

LPLH-25T RoHS Certificate(278.6 kB, PDF)
LPLH-25T_RoHS2021.pdf(684.4 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL				Learn More

Similar

Description	Compatibility
C-Mount Lens Holder, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	Learn More
Blank Insert, Machinable, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	Learn More
Optic Holder, 1.5 in. Diameter, 2.063-20 Thread, For LP-2A Series	UNIVERSAL	Learn More
Optic Holder, 1.0 inch Diameter, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	Learn More
Optic Holder, 0.5 in. Diameter, 0.875-20Thread, For LP-05A Series	UNIVERSAL	Learn More
Optic Holder, 0.75 in. Diameter, 0.875-20 Thread, For LP-05A Series	UNIVERSAL	Learn More
Blank Insert, Machinable, 0.875-20 Thread, For LP-05A Series	UNIVERSAL	Learn More
Blank Insert, Machinable, 2.063-20 Thread, For LP-2A Series	UNIVERSAL	Learn More
Objective Lens Holder, RMS, 0.875-20 Thread, For LP-05A Series	UNIVERSAL	Learn More
Objective Lens Holder, RMS, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	Learn More

Compatible

Description	Compatibility

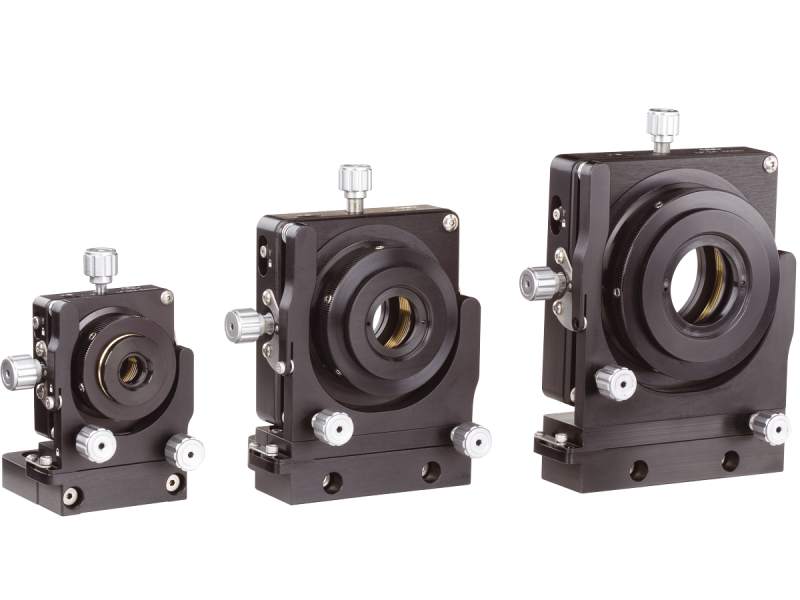

Precision Lens Positioner, 0.5 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	Learn More
