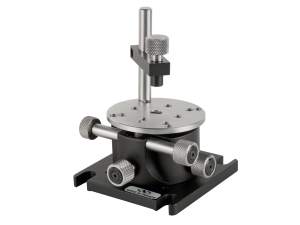

Three-Axis High-Resolution Prism Tilt Mount

PO series mounts provide the industries highest adjustment sensitivity for a prism mount. Independent tilt adjustments plus the added versatility of an in-plane rotation adjustment make these mounts ideal for positioning optical components like prisms or acousto-optic modulators.

Orthogonal, coplanar angular adjustment
Uncoupled tilt adjustments with sensitivity up to 1 arc sec
Standard or lockable adjustment screws or differential micrometer

See All Features

Description	Compatibility	Price
M-PO46BD-50 High-Resolution Three-Axis Tilt Mounts3 Axis Tilt & Rotation Stage, ±2.5°, Micrometer, Metric	METRIC	$1,471
M-PO46BL-50 High-Resolution Three-Axis Tilt Mounts3 Axis Tilt & Rotation Stage, ±2.5°, Locking Screws, Metric	METRIC	$857
M-PO46N-50 High-Resolution Three-Axis Tilt Mounts3 Axis Tilt & Rotation Stage,±2.5°, Adjustment Screws, Metric	METRIC	$571
PO46BD-50 High-Resolution Three-Axis Tilt Mounts3 Axis Tilt & Rotation Stage, ±2.5°, Micrometers	IMPERIAL	$1,471
PO46BL-50 High-Resolution Three-Axis Tilt Mounts3 Axis Tilt & Rotation Stage, ±2.5°, Locking Adjustment Screws	IMPERIAL	$857
PO46N-50 High-Resolution Three-Axis Tilt Mounts3 Axis Tilt & Rotation Stage, ±2.5°, Adjustment Screws	IMPERIAL	$571

Features

Two Independent Tilt Adjustments Plus Rotation

PO Tilt and Rotation Stages provide two independent tilt adjustments plus the added versatility of an in-plane rotation adjustment. These adjustments allow optical components like prisms and acousto-optic modulators to be oriented parallel to a desired plane, and then rotated within that plane. Three high-resolution drive options are available All three axes are spring-loaded to eliminate backlash

Differential Micrometers Option for Exceptional Sensitivity

The Differential Micrometers used on these stages provide sensitivity that is 10X better than that from a standard adjustment screws.

Easy Mounting of Optical Components

For easy insertion and removal of optical components, a mounting clamp is included. The spring-loaded clamp securely, yet gently, holds optics to the platform.

Easily Combined for Multi-axis Motion

With base plate being removed, the Three-Axis Prism Tilt Mounts can be integrated with UMR5.16 or UMR5.25 High Load Linear Stages to provide multi-axis motion in a compact profile and can be easily adapted to fit a specific system's needs.

Locking Actuators

For long-term stability, (M-)PO46BL-50 Three-Axis High-Resolution Prism Tilt Mount features lockable actuators. To lock the tip and tilt adjustment, simply tighten the knob at the corner of the mount to prevent unintended adjustments. The knob aligned with the rotation adjuster locks the in-plane rotation.
