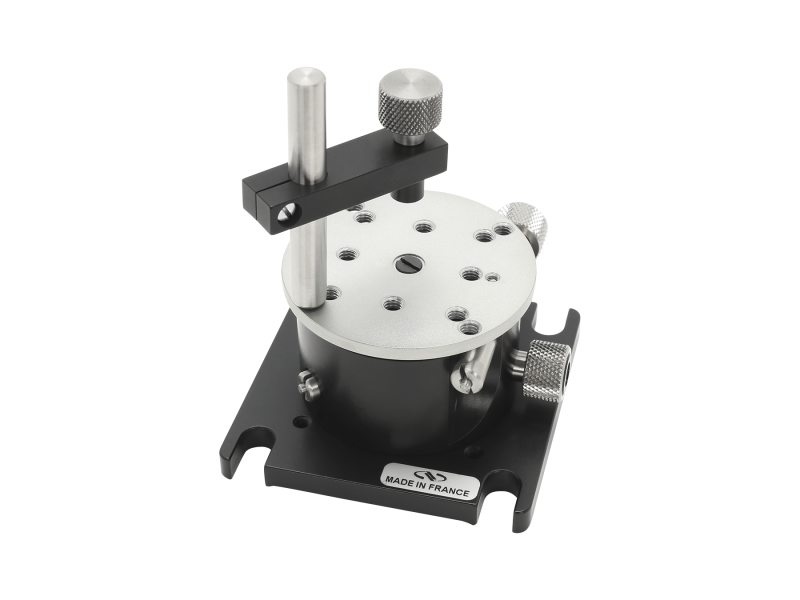

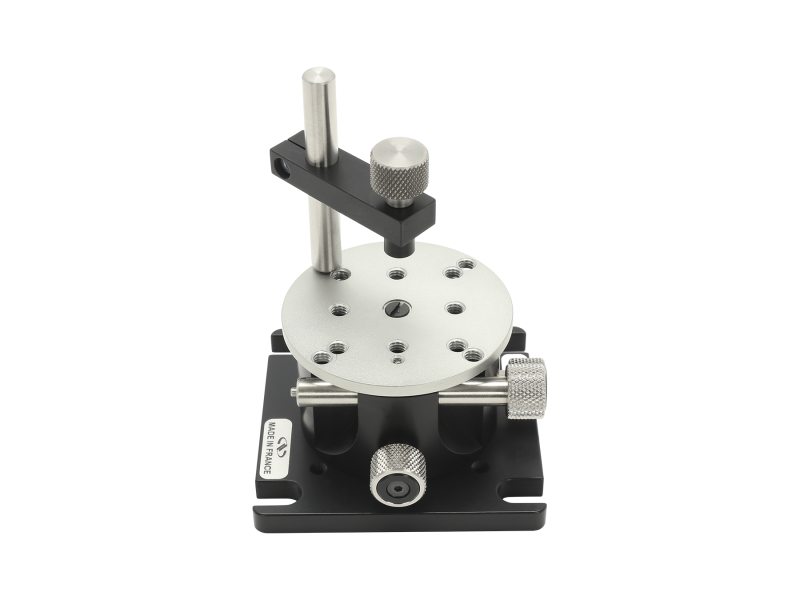

3 Axis Tilt & Rotation Stage, ±2.5°, Adjustment Screws

The PO46N-50 Tilt and Rotation Stage provides two independent tilt adjustments plus the added versatility of an in-plane rotation adjustment. These adjustments allow optical components like prisms and acousto-optic modulators to be oriented parallel to a desired plane, and then rotated within that plane. Standard adjustment screws provide exceptional resolution. All three axes are spring-loaded to eliminate backlash. For easy insertion and removal of optical components, a mounting clamp is included. The spring-loaded clamp securely, yet gently, holds optics to the platform.For mounting to other positioners, BR3 Bridles can be used for PO46 in lieu of the removable base plate.

Specifications

Technical Specs

Adjustment Type
Adjustment Screw
Angular Range
±2.5°

Load Capacity
50 N
Mounting
Base Plate

Adjustment Type
Adjustment Screw
Angular Range
±2.5°

Load Capacity
50 N
Mounting
Base Plate
