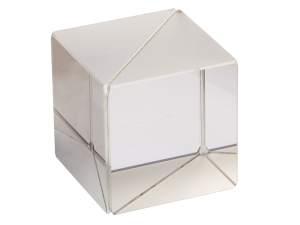

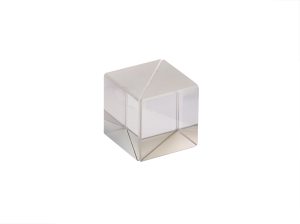

Laser Line Polarizing Cube Beamsplitters

Laser line polarizing cube beamsplitters provide efficient, narrowband polarization for higher power lasers. Their extinction ratio is better than 1000:1, and they are recommended for use in pulsed laser systems and for purifying the polarization state in multimode lasers.

Optimized for higher-power lasers
Extinction Ratio > 1000:1 for laser line beamsplitters
Extinction Ratio > 100:1 for UV laser line beamsplitters
Low wavefront distortion

See All Features

Description	Compatibility	Price
05BC16PC.1 Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, 12.7 mm, 441-458 nm Laser Line	UNIVERSAL	$308
05BC16PC.12 Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, 12.7mm, 670 nm Laser Line	UNIVERSAL	$308
05BC16PC.13 Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, 12.7 mm, 405 nm Laser Line	UNIVERSAL	$446
05BC16PC.2 Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, 12.7 mm, 488-514.5 nm Laser Line	UNIVERSAL	$308
05BC16PC.3 Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, 12.7 mm, 532 nm Laser Line	UNIVERSAL	$308
05BC16PC.4 Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, 12.7 mm, 632.8 nm Laser Line	UNIVERSAL	$308
05BC16PC.6 Laser Line Polarizing Cube BeamsplittersCube Beamsplitter, Polarizing, 12.7 mm, 780 nm Laser Line	UNIVERSAL	$308
05SC16PC.21 Laser Line Polarizing Cube BeamsplittersUV Cube Beam Splitter, Polarizing, 12.7 mm, 248 nm Laser Line	UNIVERSAL	$953
05SC16PC.22 Laser Line Polarizing Cube BeamsplittersUV Cube Beam Splitter, Polarizing, 12.7 mm, 266 nm Laser Line	UNIVERSAL	$953
05SC16PC.24 Laser Line Polarizing Cube BeamsplittersUV Cube Beam Splitter, Polarizing, 12.7 mm, 351-355 nm Laser Line	UNIVERSAL	$953

Show All

Mounting Options


Mount Type	Platform Mount		Prism Stage
Models	M1-P2	M1-PT	PO46-50 Series	9411 9481	UGP-1	Q-IBC-1
Accessories	Requires PT-1C	Included TC-1 & OC1-GR-2	–	–	Optional UGP-KIT-1
Adjustments	2-axis		3-axis
Compatible Cube Sizes	5.0-50.8 mm	5.0-25.4 mm		6.35-25.4 mm	12.7-25.4 mm
Special Features	–	–	Table Mount	–	Gimbal	Gimbal, AegisQube™ System Compatibility


Mount Type	Cube Mount
Models	LH-1PM	CH-0.5 CH-1	UPA-CH.5 UPA-CH1	OC1-CM-P	OC1-CM-A
Accessories	–	–	–	–	Optional UGP-KIT-1
Adjustments	Fixed¹				1-axis
Compatible Cube Sizes	25.4 mm	12.7, 25.4 mm		25.4 mm	12.7, 25.4 mm
Special Features	A-Line™ System Compatibility	Lens or Rotation Mount Compatibility	OpticsCage+™ or Mirror Mount Compatibility	OpticsCage+™ System Compatibility

¹Adjustments are added to the CH and UPA-CH series cube mounts when being held by a kinematic or rotary mount.

Features

Constructed With Pair of Right-Angle Prisms

These beamsplitters consist of a pair of precision right-angle prisms carefully cemented or optically contacted (models with PC.21, PC.22, and PC.24 coating) together to minimize wavefront distortion. The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for laser lines. The four faces are antireflection coated with a multilayer dielectric coating to minimize surface reflection losses.

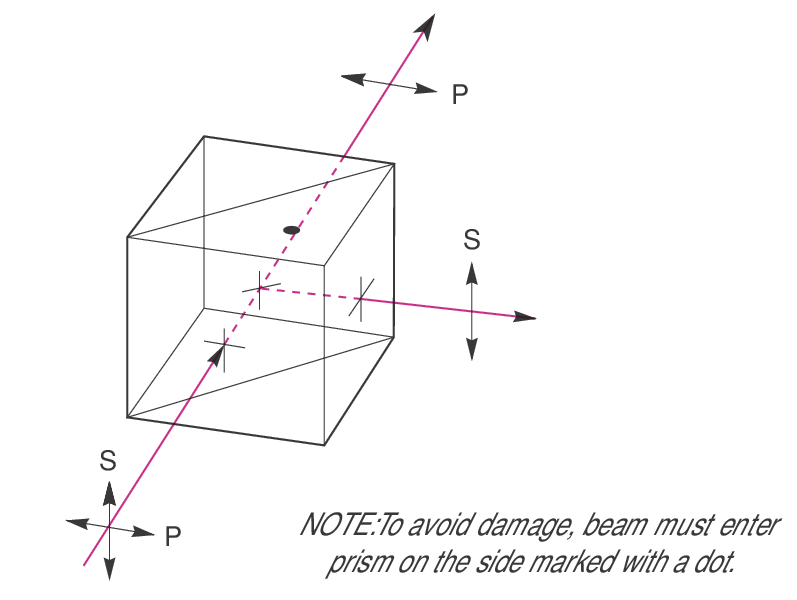

Proper Orientation

Cube beamsplitters are formed by cementing two right angle prisms together. One of the two prisms has the partially reflective metal-dielectric coating applied to its hypotenuse. In Newport's cube beamsplitters the coated prism is marked with a visible dot. Incident light should enter the prism with the coated hypotenuse in order to minimize power passing through the optical cement. Alternatively, a beam entering via the uncoated prism results in more than triple the fluence in the cement (the transmitted component, plus a double pass by the reflected component). With higher power beams this can result in degradation of the cement.

High Polarization Extinction Ratio

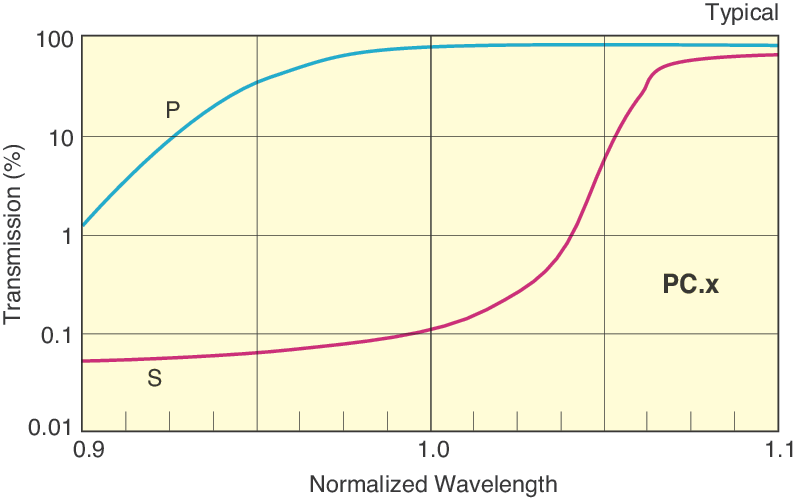

An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 1000:1 for beamsplitter made with N-BK7 glass, and better than 100:1 for beamsplitter made with UV fused silica. These cubes are recommended for use in pulsed laser systems and for purifying polarization in multimode, high-power lasers. Multilayer laser line coatings are offered for 13 laser wavelengths.
