ILX Precision Fiber Optic Measurement Heads
ILX Precision Fiber Optic Measurement Heads
The FMH-8715 and FMH-87107 fiber optic power measurement heads use integrating sphere technology to virtually eliminate sensitivity to laser polarization state or fiber orientation. By combining the FPM-8220 with one of the FMH-8700 Series Fiber Optic Measurement Heads, the system provides better than +2.5% accuracy with +0.01 dB repeatability for precise fiber optic component power measurement.
- Adapters available for FC, SC, LC, bare FC ferrule and bare fiber
- Power Measurement range from -85 to +30 dBm
- Wavelength Measurement range 800-1650 nm See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | FMH-8705 Fiber Optic Sensors for ILX Optical MetersFiber Optic Measurement Head, -85 to +1.5dBm, 800-1650nm, InGaAs | |||||
| FMH-87107 Fiber Optic Sensors for ILX Optical MetersFiber Optic Measurement Head, -60 to +30dBm, 800-1650nm, InGaAs | |||||
| FMH-8715 Fiber Optic Sensors for ILX Optical MetersFiber Optic Measurement Head, -70 to +20dBm, 800-1650nm, InGaAs |
Features
Optical Measurement Head to Fit Your Application
The FMH-8700 Series Fiber Optic Measurement Heads have the calibration stored in the connector to allow rapid interchanging of measurement heads during different test setups. The measurement heads cover a wavelength range of 800nm to 1650nm with a power range of -85 dBm to +30 dBm.
Precision Fiber Optic Measurement

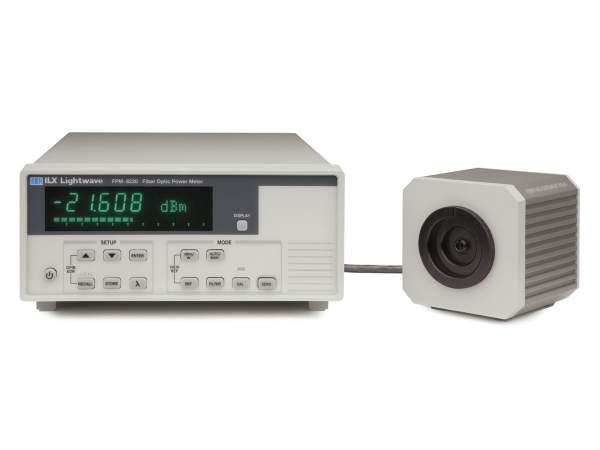

The FMH-8700 Series Fiber Optic Measurement Head and the FPM-8220 Fiber Optic Power Meter were designed to provide precise fiber optic measurement in demanding test and measurement applications for fiber optic components. The FPM-8220 Fiber Optic Power Meter incorporates a low noise pico-ammeter capable of measuring over a wide dynamic range with high stability and repeatability necessary for precise measurement. Designed for production environments, the FPM-8220 Fiber Optic Power Meter incorporates an intuitive front panel and includes GPIB and USB as standard remote interfaces. By combining the FPM-8220 with one of the FMH-8700 Series Fiber Optic Measurement Heads, the system provides better than +2.5% accuracy with +0.01dB repeatability for precise fiber optic component power measurement.
Adapters for ILX Measurement Heads
Newport offers a variety of interchangeable fiber optic adapters which allow the FMH-8700 series Fiber Optic Measurement Head to be compatible with a wide range of connectors including FC, SC, LC, bare FC ferrule, and bare fiber.
Accessories
Related Adapters
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BF820 Bare Fiber Holder, CA120 or AO120 / AO122 Fiber Adapter Mount | |||||
 | CA100 FC Fiber Adapter, For FMH Series and OMH-6790B | |||||
 | CA120 Bare Fiber Adapter Mount, For FMH Series and OMH-6790B | |||||
 | CA150 SC Fiber Adapter, For FMH Series and OMH-6790B | |||||
 | CA20001 LC Fiber Adapter, For FMH Series and OMH-6790B | |||||
 | CA250 Bare Ferrule Adapter, For FMH Series and OMH-6790B |
Resources
Application Notes
Technical Notes
CA250 Bare Ferrule Fiber Optic Adapter Repeatability(132.3 kB, PDF) Determining the Polarization Response of the FPM-8220(165.9 kB, PDF)
Literature
Manuals
FPM-8220 Power Meter User's Manual(5.8 MB, PDF)
Software
FPM-8220 LabVIEW Driver Version 1.0(327 kB, ZIP)
