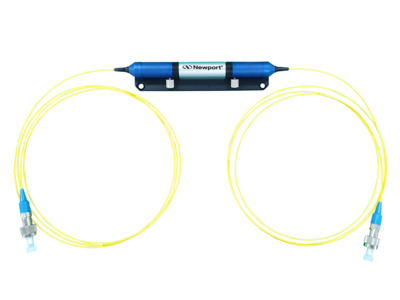

Compact In-Line Polarization Controllers

The F-ILPC Series Compact In-Line Polarization Controllers are designed for fiber optic system where small size is specially needed. It uses quarter waveplates to change the polarization within the fiber.

Super compact size
Easy to integrate into fiber optic systems
Low insertion loss
High shock endurance

See All Features

Description	Compatibility	Avail.	Price
F-ILPC-13 In-Line Polarization ControllersIn-Line Polarization Controller, 1280-1340nm, Bare	UNIVERSAL	Discontinued
F-ILPC-13-APC In-Line Polarization ControllersIn-Line Polarization Controller, 1280-1340 nm, FC/APC.	UNIVERSAL		$438
F-ILPC-13-PC In-Line Polarization ControllersIn-Line Polarization Controller, 1280-1340 nm, FC/PC.	UNIVERSAL		$438
F-ILPC-15 In-Line Polarization ControllersIn-Line Polarization Controller, 1520-1620 nm, Bare	UNIVERSAL	Discontinued
F-ILPC-15-APC In-Line Polarization ControllersIn-Line Polarization Controller, 1520-1620 nm, FC/APC.	UNIVERSAL		$490
F-ILPC-15-PC In-Line Polarization ControllersIn-Line Polarization Controller, 1520-1620 nm, FC/PC.	UNIVERSAL		$460

Features

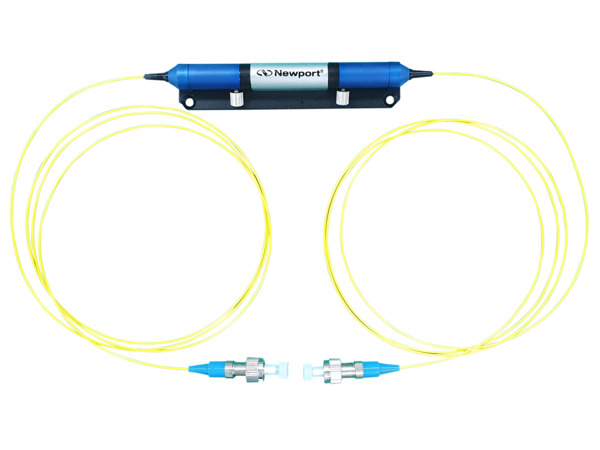

Pigtailed In-Line Polarization Controller

Our new all-fiber In-line polarization controller is ideal for fiber optic system where small size is especially needed. They fit in most rack mountable housings and electronic circuit boards. With conventional communication fiber pigtails, these polarization controllers can be easily installed in the system.

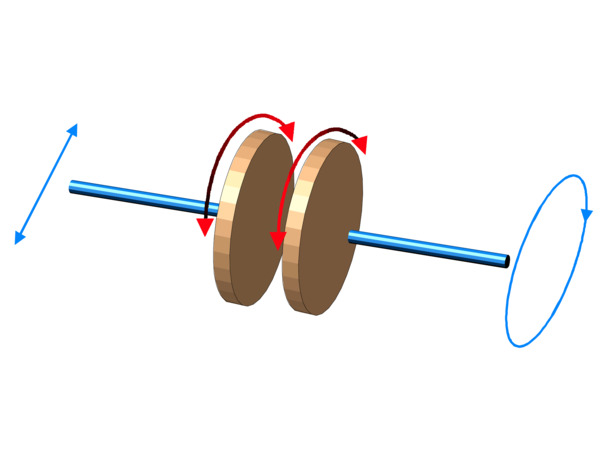

Precision Polarization Control by Quarter Waveplates

These In-line polarization controllers are composed of two fiber-made quarter waveplates. It has all fiber configuration, and low insertion loss. For arbitrary input polarization, linear combination of the two independently controlled waveplates can generate any output state of polarization.
