Motorized XY Fiber Positioners
Motorized XY Fiber Positioners
By motorizing our XY fiber positioners , we’ve improved their resolution from 1.0 µm to finer than 0.1 µm. Combining one of these stages with our Model 9092 coupler body and clamp gives you a good motorized multimode-fiber positioner.
- Unique flexure design
- Picomotor actuators
- <30 nm minimum incremental motion See All Features
Specifications
- Axes of TravelX,Y
- Minimum Incremental Motion30 nm
- Connector Type6 pin
- Operating Temperature10-40 C
- Thread Type8-32
- Travel Range+/- 1.5 mm
Features
Flexure Design for Smooth and Reliable XY Positioning

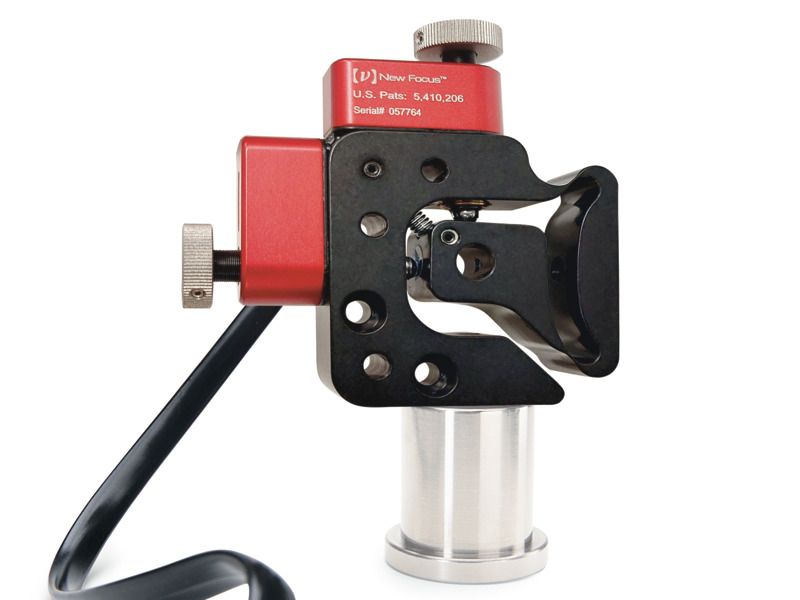

The 8051 motorized XY fiber launcher’s unique flexure design doesn't rely on bearings to provide smooth, stictionless motion when coupling light from free-space into multimode fibers. The positioner can be mounted to an optical post or pedestal riser, as well as a flat surface using a threaded 8-32 hole (or M4 for metric versions). A nylon-tipped setscrew secures the fiber chuck for alignment. The Model 9092 coupler body is compatible with this positioner for coupling to microscope objectives.
Accessories
Recommended Controller/Drivers
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8742-4-KITPicomotor Controller Kit, Four-Axis | |||||
 | 8742Motion Controller, Picomotor, Open-Loop, 4 Channel | |||||
 | 8758Hand Control Pad, 875x Picomotor Controller/Drivers | |||||
 | 8725Multi-Axis Adapter, Picomotor, 6 pin to 3x 4 pin |
Resources
Technical Notes
Literature
Picomotor FAQ(3.1 MB, PDF)
