The ability to mount a monochromator or spectrograph to an optical table simplifies setup and alignment of the optical system. The mounting plate also helps ensure consistent results over time, as the instrument cannot be accidentally moved out of position.
- Secure Instruments to Optical Tables
- Conveniently Attach Light Sources
- Available for Popular Oriel® Monochromators and Spectrographs See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 74006 Mounting AccessoriesMounting Plate, Cornerstone 130B Monochromator | |||||
 | 74017 Mounting AccessoriesMounting Kit, Cornerstone 130B Monochromator to Research Lamp Housing | |||||
 | 74104 Mounting AccessoriesMounting Kit, Cornerstone 260 Monochromator to Research Lamp Housing | |||||
| 74104B Mounting AccessoriesMounting Kit, Cornerstone 260B Monochromator to Research Lamp Housing | |||||
 | 74105 Mounting AccessoriesMounting Plate, Cornerstone 260 Monochromator or MS260i Spectrograph | |||||
| 74105B Mounting AccessoriesMounting Plate, Cornerstone 260B Monochromator | |||||
 | 77387 Mounting AccessoriesMounting Kit, 77250 and 77250B Monochromators, Imperial | |||||
| 77775 Mounting AccessoriesMounting Plate, MS257 Monochromator and Spectrograph | Discontinued | ||||

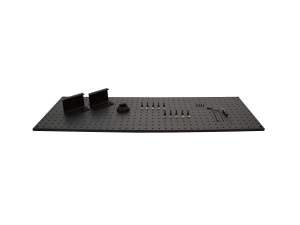

 | APEX2-CS1-KIT Mounting AccessoriesMounting Kit, APEX2 Illuminator to CS130B Monochromator | |||||
 | APEX2-CS2-KIT Mounting AccessoriesMounting Kit, APEX2 Illuminator to CS260 Monochromator | |||||
Features
Secure Instruments to Optical Tables
Conveniently Attach Light Sources

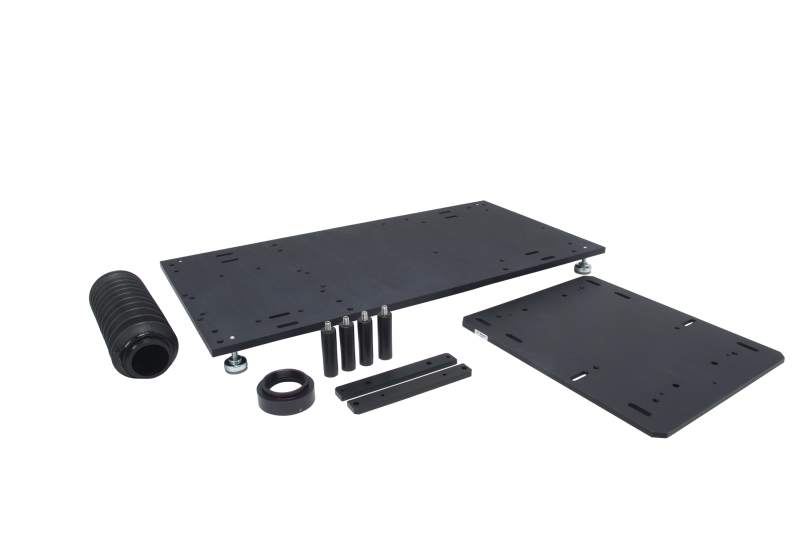

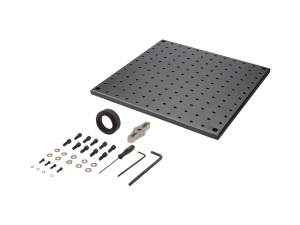

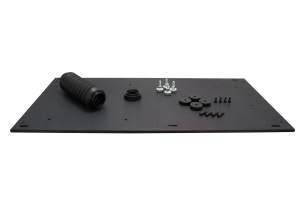

Mounting kits feature a larger area than the mounting plates to allow securing of a light source to the same base plate as the monochromator or spectrograph. These kits are compatible with Oriel Research Lamp Housings using 50 to 250 watt lamps. They include the base plate, a flexible light shield, a 1.5-in. diameter focusing lens and lens holder. All the hardware required to mount the lamp housing and instrument to the base plate is provided. Four adjustable leveling feet are included and may be used as an alternative to direct table mounting for easier portability.
Available for Popular Oriel Monochromators and Spectrographs
Mounting accessories are available for all Oriel monochromators and spectrographs, with the exception of the MS125 spectrograph. This model is small and lightweight, allowing it to be easily rod mounted.
Resources
Manuals
Oriel 74104B Mounting Kit Instruction Sheet(180.8 kB, PDF)
