The MS Series offers unmatched performance in an extremely small package. Ideal for applications where precision is required but space is limited. These micropositioners are provided in X, XY and XYZ configurations.
- Low profile
- Precision 80 TPI adjustment
- High load/size ratio
- Zero backlash
- <0.01 mrad wobble
- Over 16 unique configurations See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

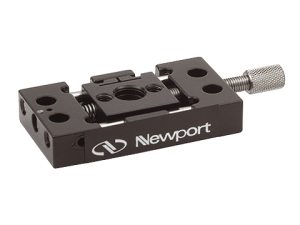

 | MS-125-X Dowel Pin Bearing with Aperture StagesManual Linear Stage, Miniature, 0.125 in. Travel, 0.55 lb. Load | |||||
 | MS-125-XY Dowel Pin Bearing with Aperture StagesXY Linear Stage, Miniature, 0.125 in. Travel, 0.55 lb. Load | |||||
 | MS-125-XYZ Dowel Pin Bearing with Aperture StagesXYZ Linear Stage, Miniature. 0.125 in. Travel, 0.55 lb. Load Capacity | |||||

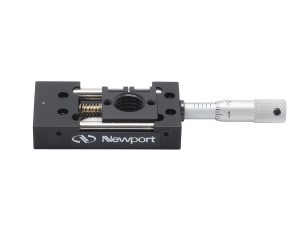

 | MS-200M-X Dowel Pin Bearing with Aperture StagesManual Linear Stage, Miniature, Micrometer, 0.2 in. Travel, 0.75 lb. Load | |||||

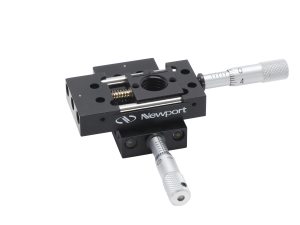

 | MS-200M-XY Dowel Pin Bearing with Aperture StagesXY Linear Stage, Miniature, Micrometer, 0.2 in. Travel, 0.75 lb. Load | |||||

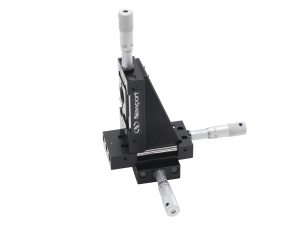

 | MS-200M-XYZ Dowel Pin Bearing with Aperture StagesXYZ Linear Stage, Miniature, Micrometer, 0.2 in. Travel, 0.75 lb. Load | |||||

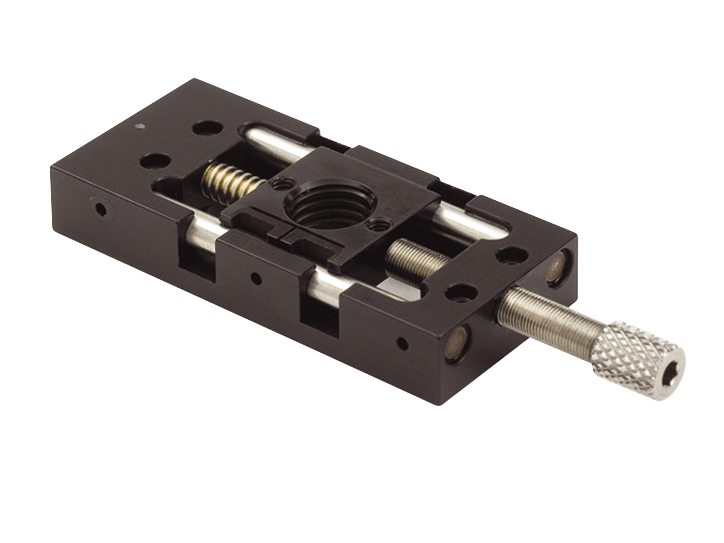

 | MS-500-X Dowel Pin Bearing with Aperture StagesManual Linear Stage, Miniature, 0.5 in. Travel, 0.75 lb. Load Capacity | |||||

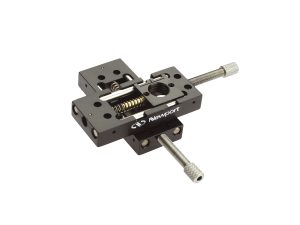

 | MS-500-XY Dowel Pin Bearing with Aperture StagesXY Linear Stage, Miniature, 0.50 in, Travel, 0.75 lb. Load Capacity | |||||

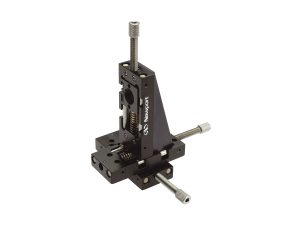

 | MS-500-XYZ Dowel Pin Bearing with Aperture StagesXYZ Linear Stage, Miniature, 0.50 in. Travel, 0.75 lb. Load Capacity |
Features

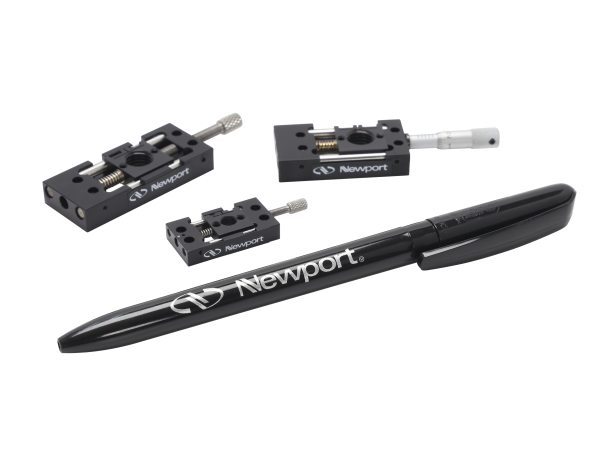

Miniature Size
MS Series linear stages are great for space limited optical set-ups. MS-125 and MS-500 Series are equiped with precision 80 TPI adjustment screws. MS-200M Series are actuated by micrometers.
Wear Resistant Motion
Wide Variety of Accessories

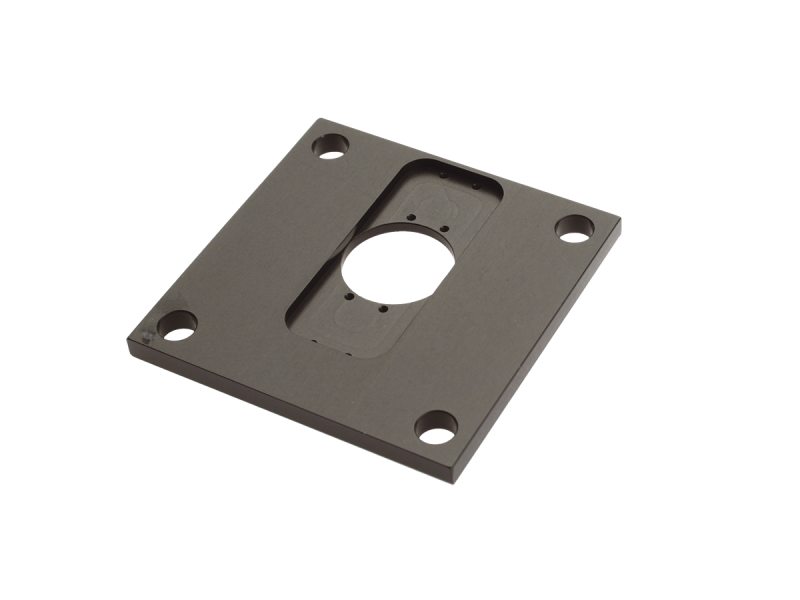

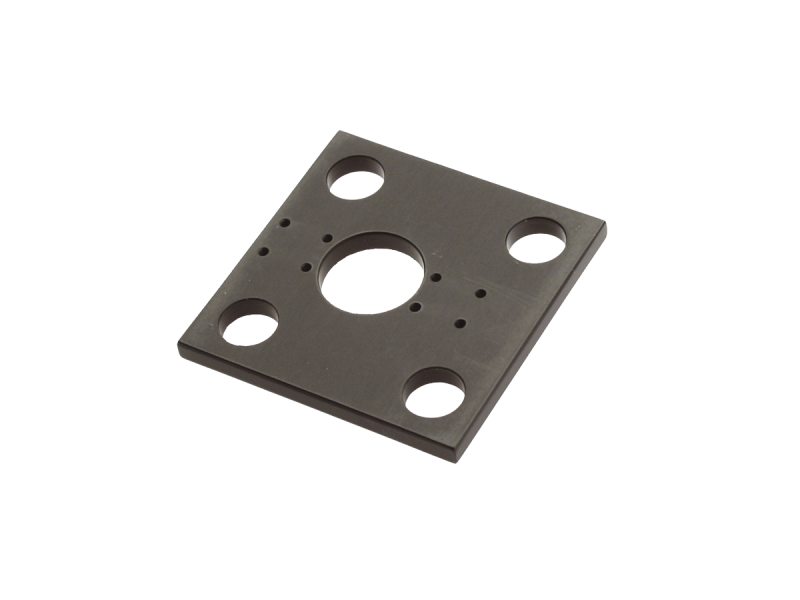

The multi-position adapter plates MS-AP-1 and MS-AP-3 interface with standard optical tables and can provide additional footprint to free-standing stages.

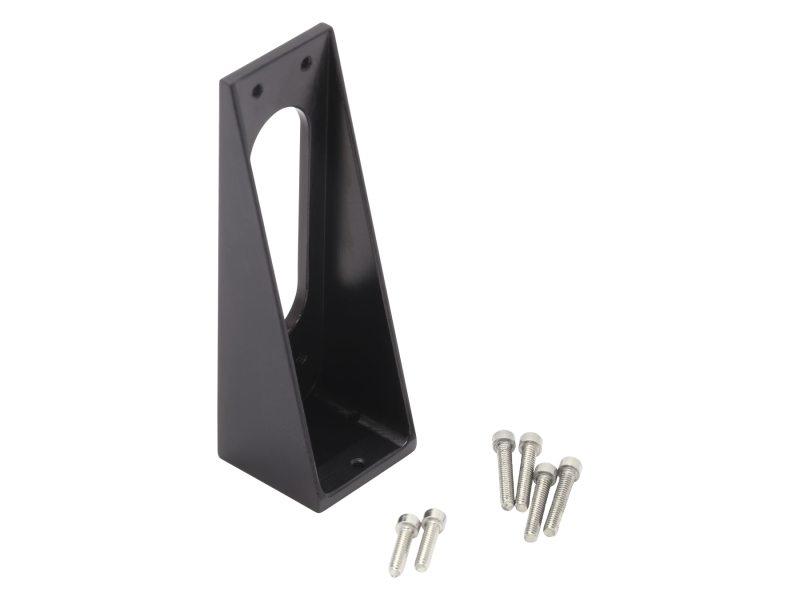

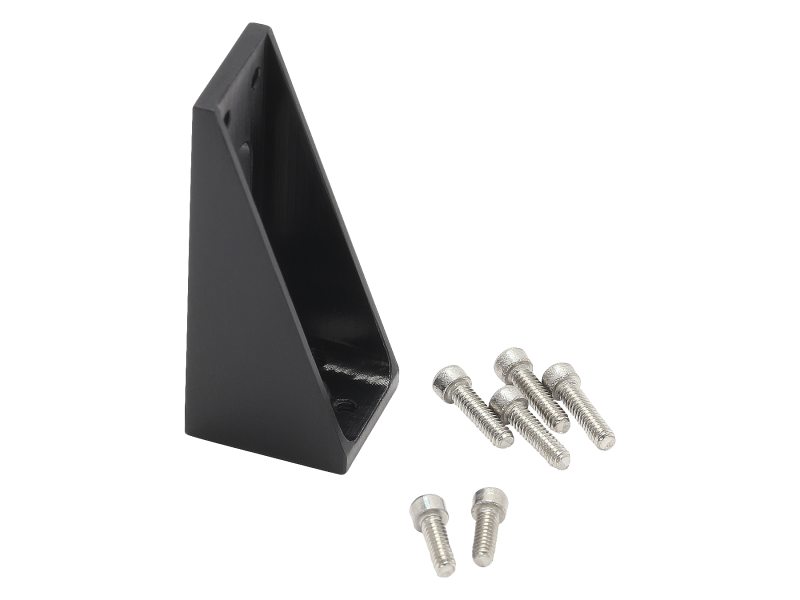

The Z-bracket and screw kits MS-KIT-Z-1 and MS-KIT-Z-3 are used to build XZ configuration of MS-125 and MS-500 Series miniature linear stages.

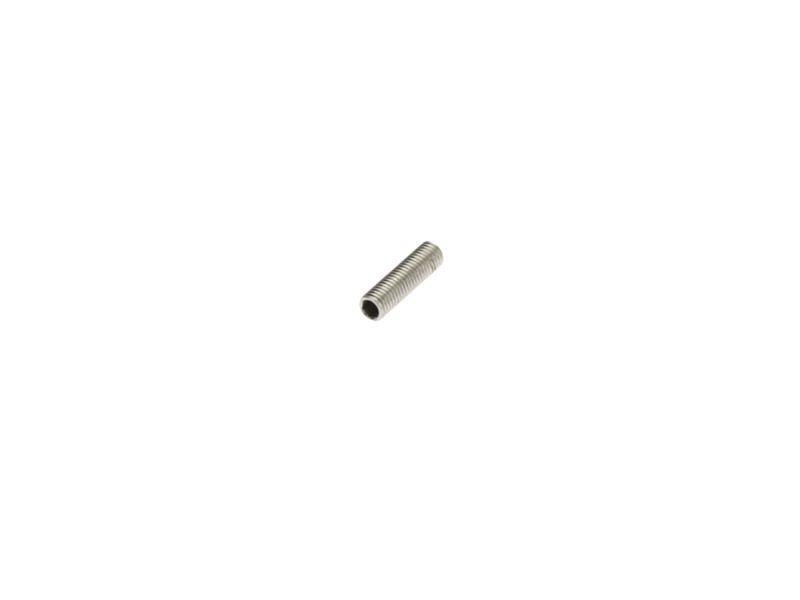

The headless adjusting screws MS-SS-1 and MS-SS-3 replace a standard thumb screw in MS-125 or MS-500. They provide full linear travel while reducing the length of the stage by 0.4 or 0.5 in. respectively.

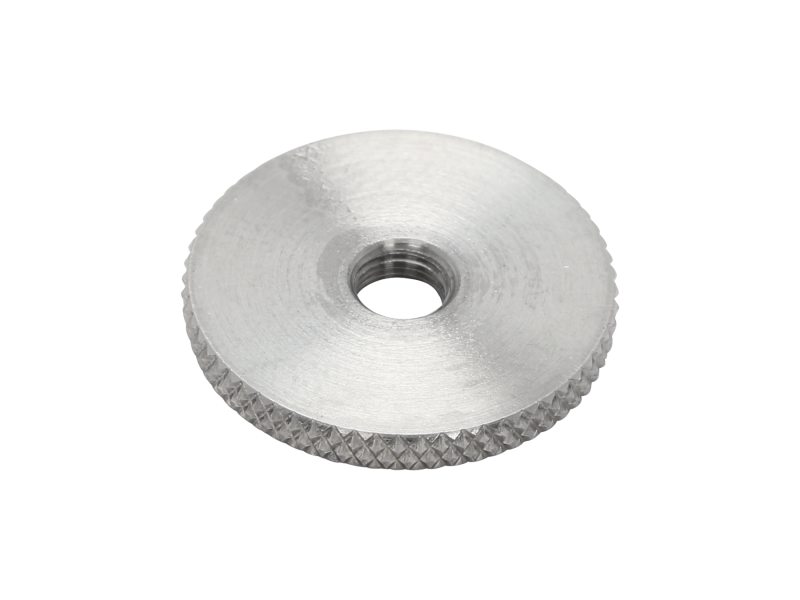

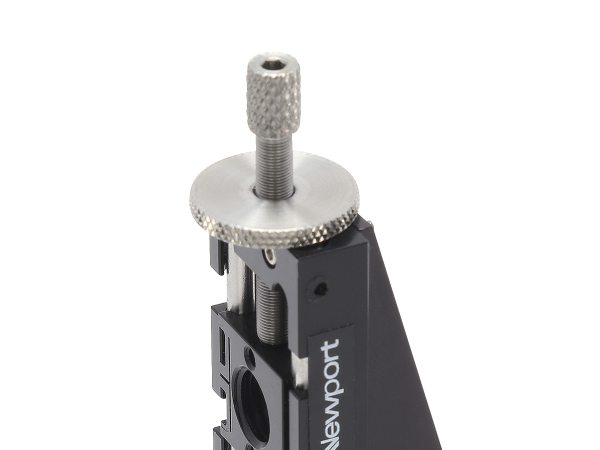

The knurled thumb grips MS-TG-1 and MS-TG-3 can be added to MS-125 and MS-500 stages to enhance resolution and alternatively can be used as a locking nut.

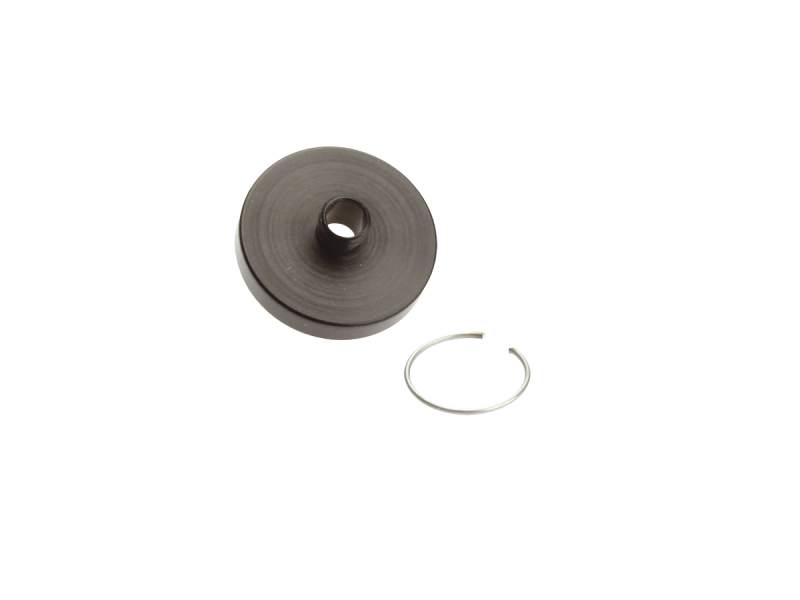

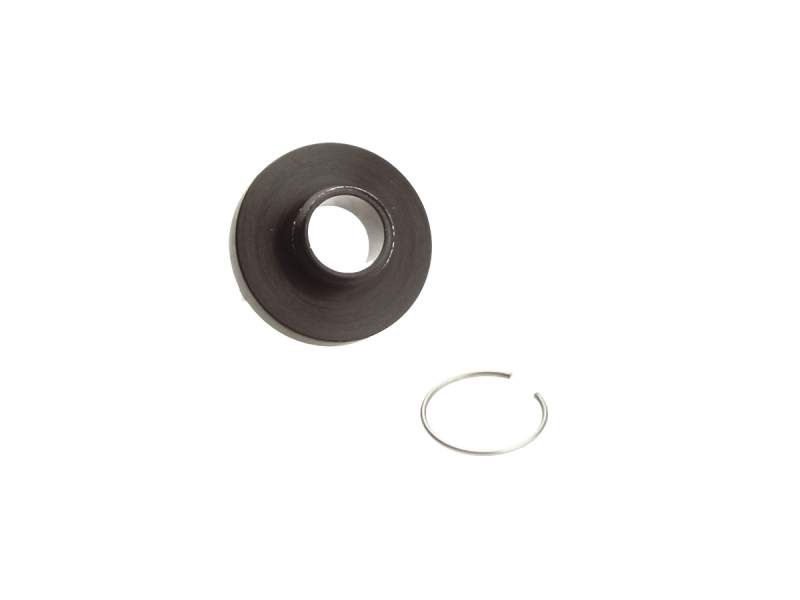

With the pinhole adapter MS-PA-1 or MS-PA-3, apertures can be changed by replacing the entire adapter or by removing and replacing the aperture only. A soft rubber washer can be used under the adapter for slit aperture orientation.
Objective Lens Positioning Application

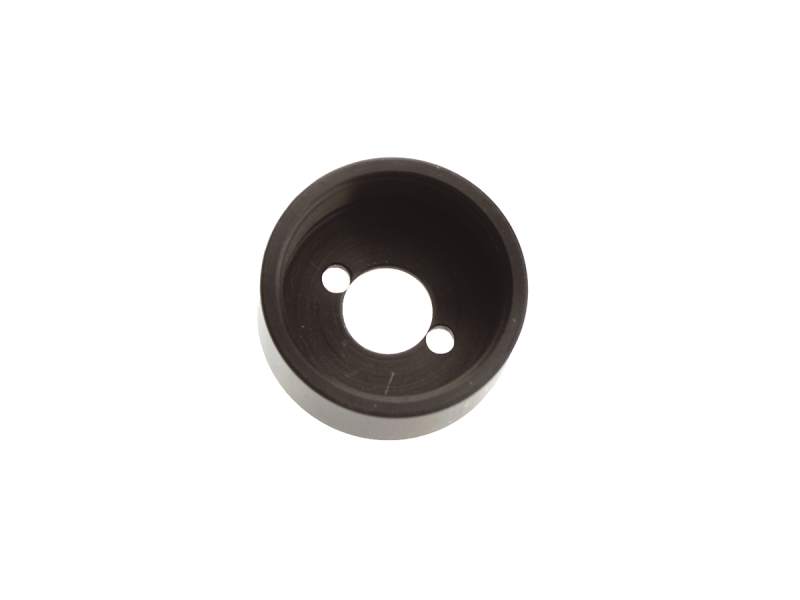

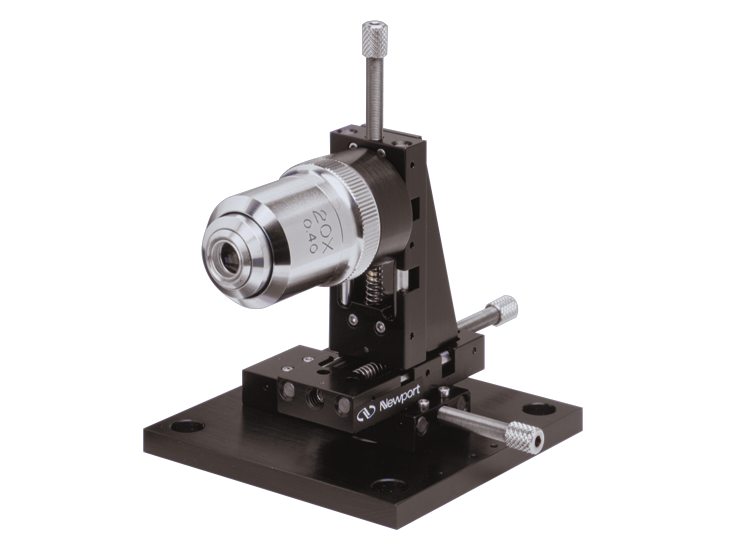

The objective adapter MS-OA-3 allows mounting of standard microscope objectives to MS-500 stages. A Newport M Series Objective Lens is shown with Model MS-500-XYZ stage to create a miniature XYZ objective lens positioner.
Accessories

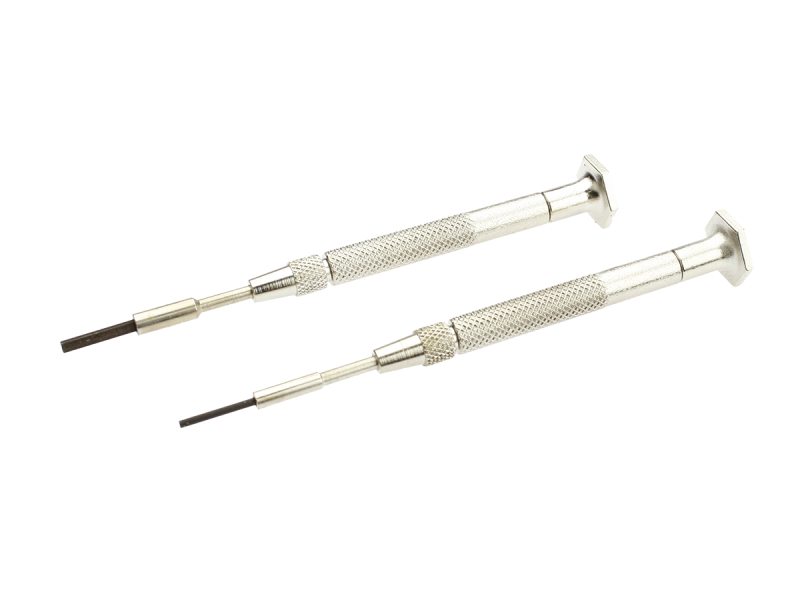

Tool Kit
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MS-ATK Tool Kit, Assembly & Mounting, MS Series |
MS-125 Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MS-AP-1 Adaptor Mounting Plate, MS-125 Series | |||||
 | MS-KIT-XY-1 XY Screw Kit, MS-125 Series | |||||
 | MS-KIT-Z-1 Z Bracket and Screw Kit, MS-125 Series | |||||
 | MS-PA-1 Pinhole Adaptor, MS-125 Series | |||||
 | MS-SS-1 Adjustment Screw, Headless, MS-125 Series | |||||
 | MS-TG-1 Knurled Thumb Grip, MS-125 Series |
MS-500 Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MS-AP-3 Adaptor Mounting Plate, MS-500 Series | |||||

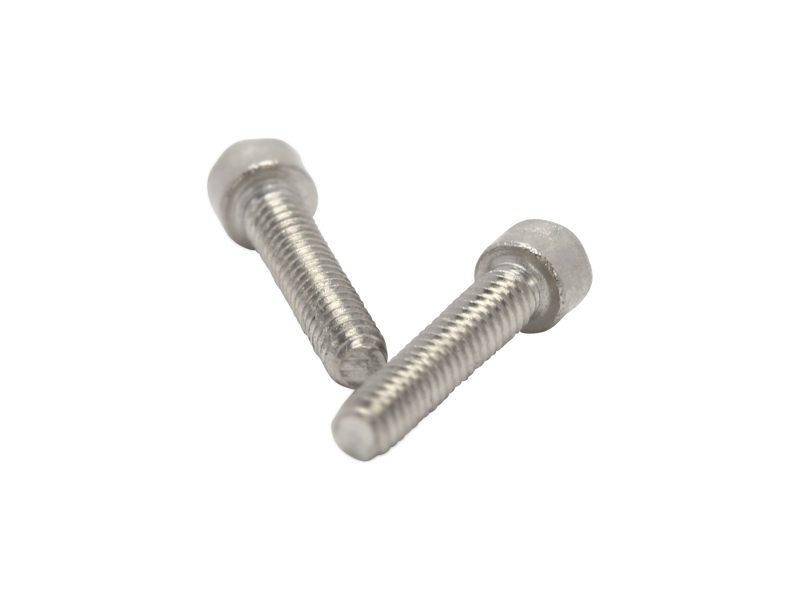

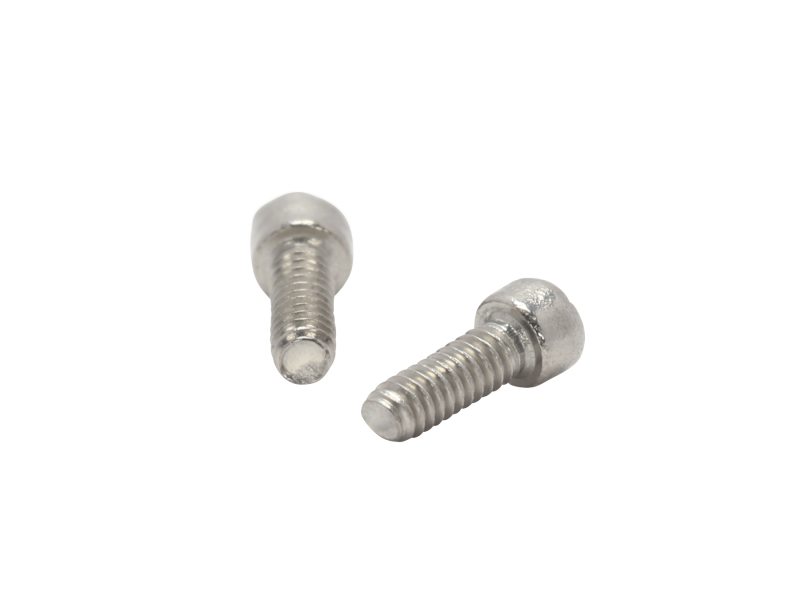

 | MS-KIT-XY-3 XY Screw Kit, MS-500 Series | |||||
 | MS-KIT-Z-3 Z Bracket and Screw Kit, MS-500 Series | |||||
 | MS-OA-3 Objective Adaptor, MS-500 Series | |||||
 | MS-PA-3 Pinhole Adaptor, MS-500 Series | |||||
 | MS-SS-3 Adjustment Screw, Headless, MS-500 Series | |||||
| MS-TG-3 Knurled Thumb Grip, MS-500 Series |
