Compare Description Drawings, CAD & Specs Avail. Price

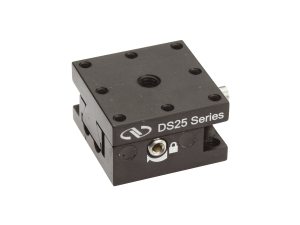

Industrial Dovetail Linear Stages DS25-X Industrial Dovetail Linear StagesManual Linear Stage, Compact, Dovetail, 0.25 in., 0.98x0.98 x 0.59 in.
$143

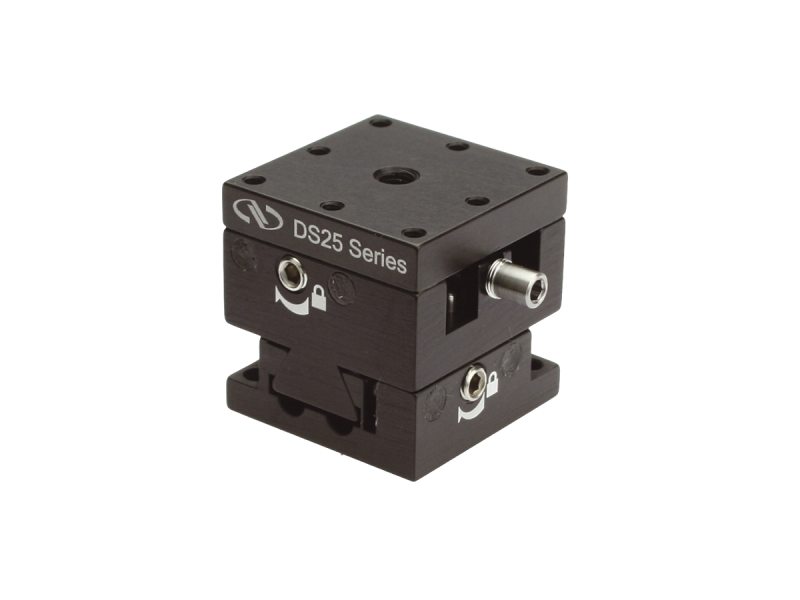

Industrial Dovetail Linear Stages DS25-XY Industrial Dovetail Linear StagesXY Linear Stage, Compact, Dovetail, 0.25 in., 0.98 x 0.98 x 1.02 inch
$237

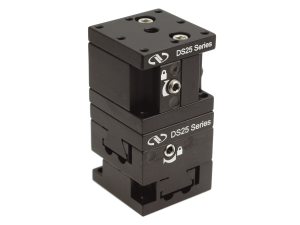

Industrial Dovetail Linear Stages DS25-XYZ Industrial Dovetail Linear StagesXYZ Linear Stage, Dovetail, 0.25 in. XY, .12 in. Z, 0.98 x 0.98 in.
$416

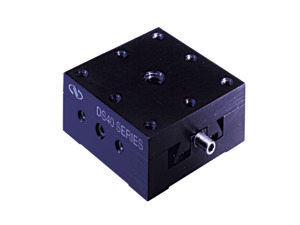

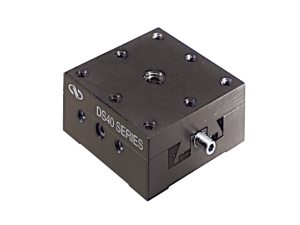

Industrial Dovetail Linear Stages DS40-X Industrial Dovetail Linear StagesManual Linear Stage, Dovetail, 0.55 in. Travel, 1.57 x 1.57 in.
$184

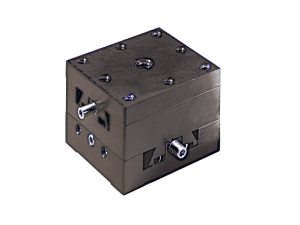

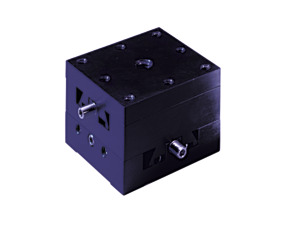

Industrial Dovetail Linear Stages DS40-XY Industrial Dovetail Linear StagesXY Linear Stage, Dovetail, 0.55 in. Travel, 1.57 x 1.57 in.
$288

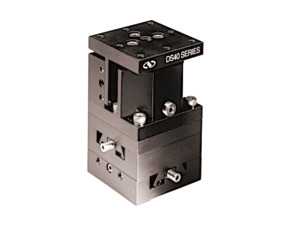

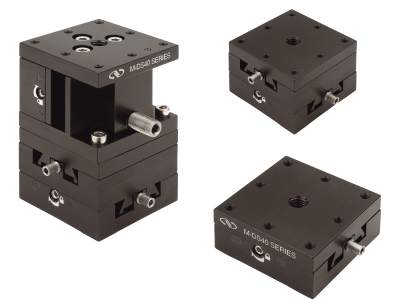

Industrial Dovetail Linear Stages DS40-XYZ Industrial Dovetail Linear StagesXYZ Linear Stage, Dovetail, 0.55 in XY, .20 in Z, 1.57 x 1.57 in.
$571

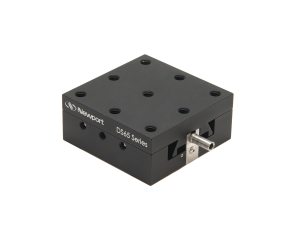

Industrial Dovetail Linear Stages DS65-X Industrial Dovetail Linear StagesManual Linear Stage, Compact, Dovetail, 1.0 in., 2.56x2.56 x 1.11 in.
$222

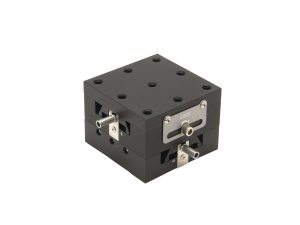

Industrial Dovetail Linear Stages DS65-XY Industrial Dovetail Linear StagesXY Linear Stage, Dovetail, 1.0 in. Travel, 2.56 x2.56 in.
$438

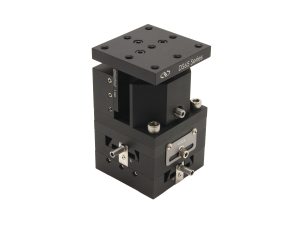

Industrial Dovetail Linear Stages DS65-XYZ Industrial Dovetail Linear StagesXYZ Linear Stage, Dovetail, 1.0 in XY, .55 in Z, 2.56 x2.56 in.
$694
Industrial Dovetail Linear Stages M-DS25-X Industrial Dovetail Linear StagesManual Linear Stage, Compact, Dovetail, 6.3 mm, 25 x 25 x 15mm, Metric
$143
Show All

Specifications

[calculators:text.product.notes]

M- metric version have the same specifications as the imperial versions shown.

Features

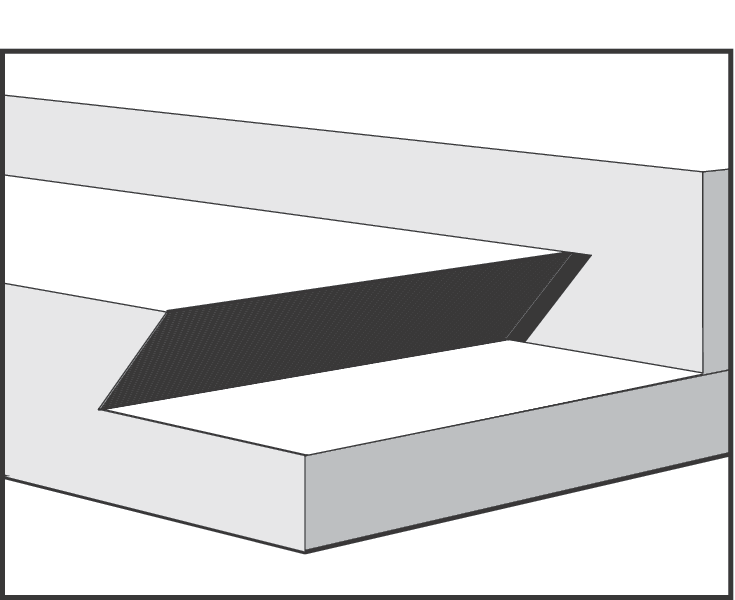

Dovetail Slide Bearings for Smooth Motion in a Compact Size

Dovetail stages are ideal for small, controlled travel to eventually remain locked in place for long time periods. These further compact version of the MT Dovetail stages also do not employ typical roller bearings of cylindrical rails, which makes them less susceptible to shock and vibration. These DS series dovetail stages slide along precision preloaded dovetail slides, whose unique shape ensures accurate, repeatable motion. These compact, modular stages are available in X, XY, or XYZ configurations with a lower footprint than the MT Dovetail series for the DS25 version.

Precise, 1 µm Step Control With Secure Hold Over Long Lifetimes

Each stage come equipped with an 80 TPI hex-driven drive screw for precision positioning of 1 µm while maintaining a low footprint. The motion can then be locked in place using an additional hex-screw controlled locking mechanism that insures placement over long times.

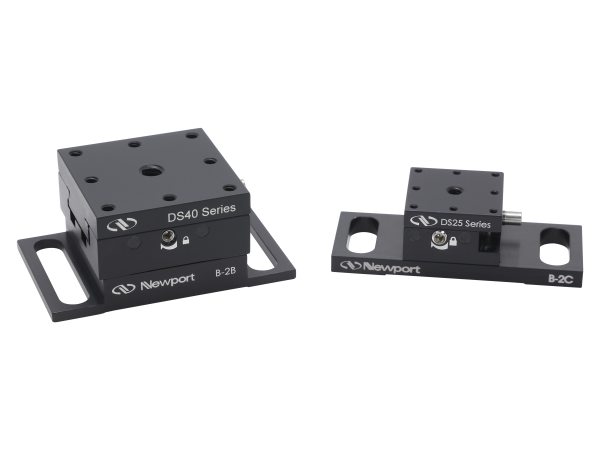

Slotted Base Plates

Slotted base plates are available for versatile mounting of DS stages to optical tables or other stages. Please see the accessory section for more information.

Left or Right Handed Configurations

DS65 stages come in mirror-image right and left-hand versions for more flexibility in how you lay out your experiment on the table, so there's never a need to reach over your work to make adjustments on the far side. All adjustments can be made with the hand resting on the table for maximum comfort, added stability, and increased sensitivity.

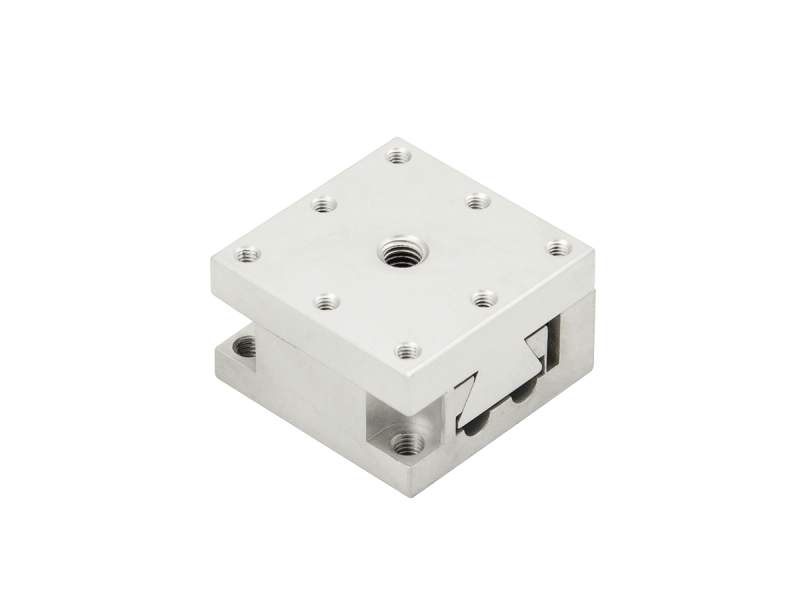

LaserClean™ Low VOC Versions Available

DS Series are available in LaserClean™ low VOC versions with clear anodizefor applications that require extra care to reduce volatile organic compounds (VOC) and ensure added cleanliness. Newport now offers certain Opto-Mechanical components that are specially prepared with clear anodize, nickel plating or stainless steel materials, special lubrication and vacuum-level cleaning. Products are packaged in Class 1000 (ISO 6) cleanroom grade bagging material and then double-bagged for further cleanliness precautions. We call these products, LaserClean™ and designate them with a -LC suffix. For more information please visit LaserClean Low VOC Optical Components Page.

Easily Combined for Multi-axis Motion

The DS Series Linear Stages are compatible with RS Series Rotation Stages and GON Series Goniometric Stages of matching size (for example, RS40 with DS40, RS65 with DS65). They can be combined to provide multi-axis motion and can be easily adapted to fit a specific system's needs. A six-axis manual positioning system is shown using matched 65 x 65 mm stages.

Accessories

Left-handed Versions

Compare Description Drawings, CAD & Specs Avail. Price
DS65-XY-LH XY Linear Stage, Left-Handed, Dovetail, 1.0 in. Travel, 2.56 x2.56 in.
$438

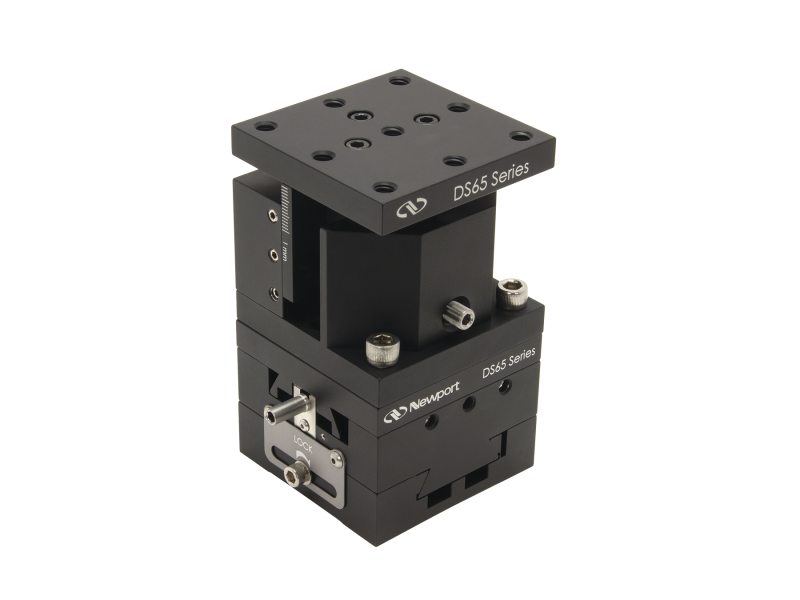

 DS65-XYZ-LH XYZ Linear Stage, Left-Handed, Dovetail, 1.0 in XY, .55 in Z, 2.56 x2.56 in.
$694
 M-DS65-XY-LH XY Linear Stage, Compact, Dovetail, Left-Handed, 25 mm, 65x65x48 mm, M6
$438
 M-DS65-XYZ-LH XYZ Linear Stage, Left-Handed, Dovetail, 25 mm XY, 14 mm Z, 65 x 65 mm, M6
$694

LaserClean Versions

Compare Description Drawings, CAD & Specs Avail. Price
DS25-X-LC Manual Linear Stage, 25 x 25 mm, LaserClean, Imperial
$188
 DS40-X-LC Manual Linear Stage, 40 x 40 mm, LaserClean, Imperial
$256
 M-DS25-X-LC Manual Linear Stage, 25 x 25 mm, LaserClean, Metric
$188
 M-DS40-X-LC Manual Linear Stage, 40 x 40 mm, LaserClean, Metric
$256

DS Series Vertical Stages

Compare Description Drawings, CAD & Specs Avail. Price

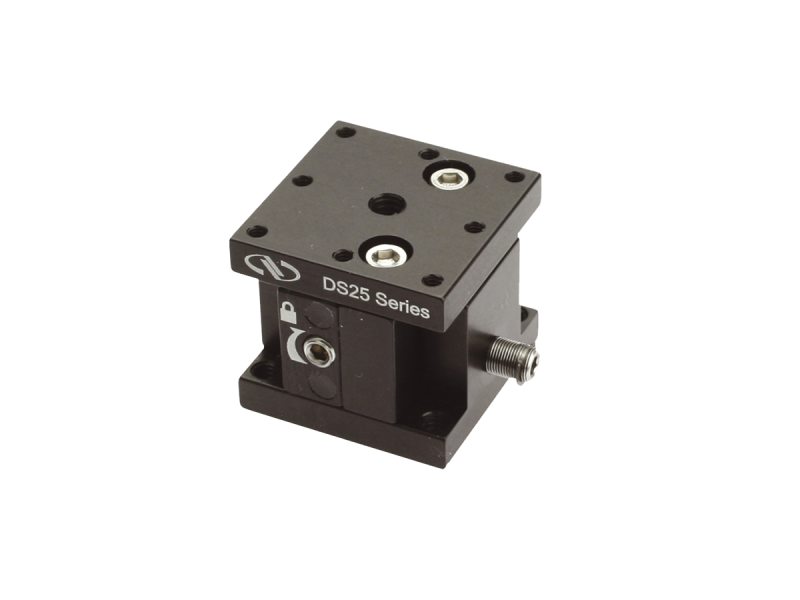

DS25-Z Vertical Linear Stage, Dovetail, 0.12 in. Travel, 0.98 x 0.98 in. Platform
$209

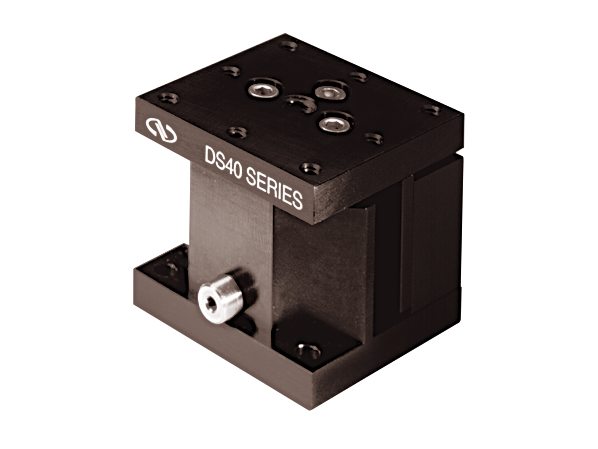

 DS40-Z Vertical Linear Stage, Dovetail, 0.20 in. Travel, 1.57 x 1.57 in. Platform
$243

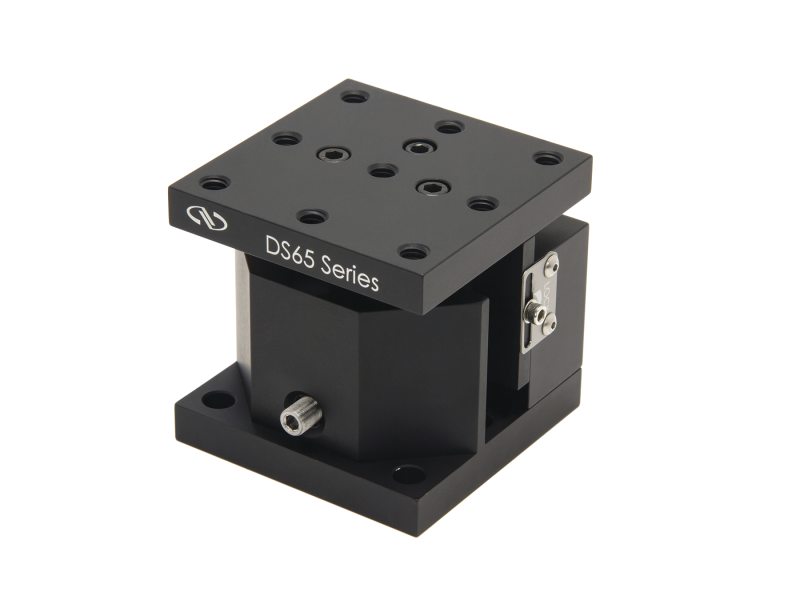

 DS65-Z Vertical Linear Stage, Dovetail, 0.55 in. Travel, 2.56 x 2.56 in. Platform
$355
 M-DS25-Z Vertical Linear Stage, Dovetail, 3 mm Travel, 25 x 25 mm Platform, M2 and M4
$209

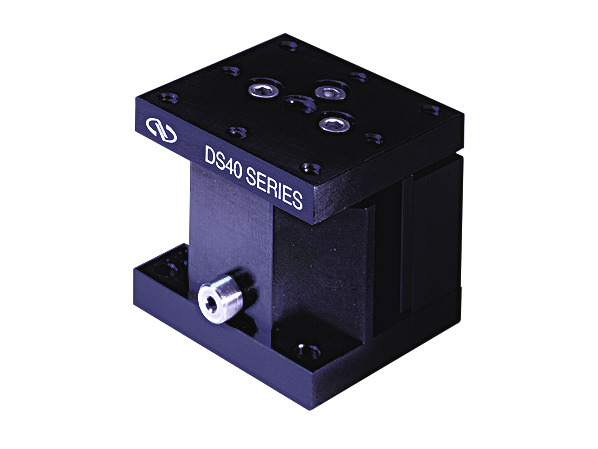

 M-DS40-Z Vertical Linear Stage, Dovetail, 5 mm Travel, 40 x 40 mm Platform, M3 and M6
$243
 M-DS65-Z Vertical Linear Stage, Dovetail, 14 mm Travel, 65 x 65 mm Platform, M6
$355

Bases

Compare Description Drawings, CAD & Specs Avail. Price
B-2B Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage
$48
 B-2C Adaptor Plate, 25x25 mm Stage to Optical Table or 65x65 mm Stage
$56
 M-B-1.25 Adaptor Plate, 25x25 mm Stage to 40x40 mm Stage
$56
 M-B-2B Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage
$48
 M-B-2C Adaptor Plate, 25x25 mm Stage to Optical Table or 65x65 mm Stage
$56

90 Degree Angle Brackets

Compare Description Drawings, CAD & Specs Avail. Price
M-SDS25-BK 90 Degree Angle Bracket, M-SDS25, M2 Thread
$151
 M-SDS40-BK 90 Degree Angle Bracket, M-SDS40, M3 Thread
$166
 M-SDS65-BK 90 Degree Angle Bracket, M-SDS65, M6 Thread
$203
 SDS40-BK 90 Degree Angle Bracket, SDS40 Stage
$166
 SDS65-BK 90 Degree Angle Bracket, SDS65 Stage
$203

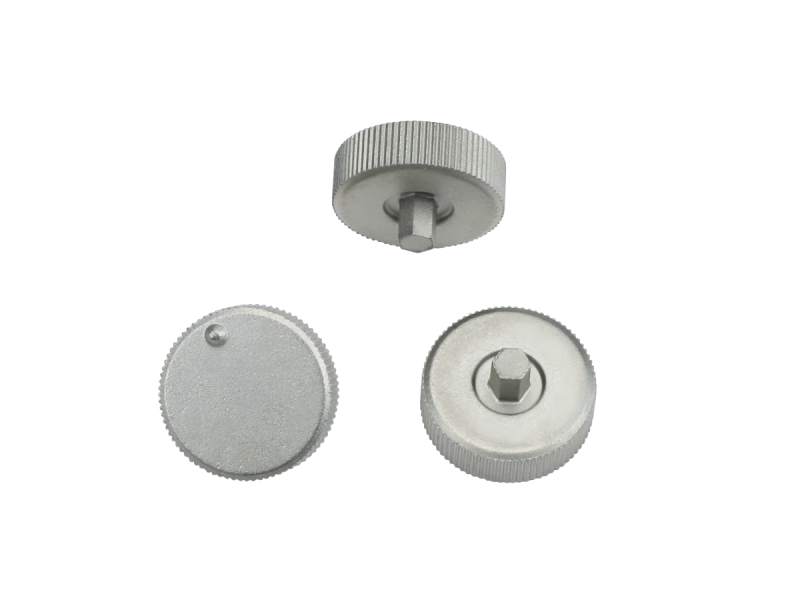

Knob for Adjustment Screws

KD.37 for DS25 and DS40, 9361 for DS65.

Compare Description Drawings, CAD & Specs Avail. Price
9361 Adjustment Knob Set, 3.175 mm Hex Key, Set of 3
$23
 KD.37 Small Adjustment Knob, 2.0 mm Hex Key, Silver
$9.30

Resources

Technical Notes

Selection Guides

Similar Products

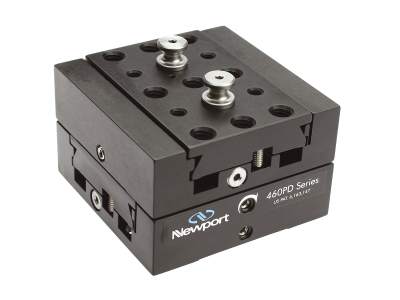

Modular Peg-Joining Dovetail Aluminum Linear Stages

Modular Peg-Joining, Dovetail Stages

Industrial Dovetail Aluminum Vertical Stages

Dovetail Slide Aluminum Vertical Stages

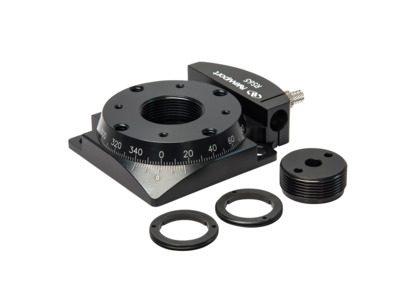

RS Low-Profile Rotation Stages
