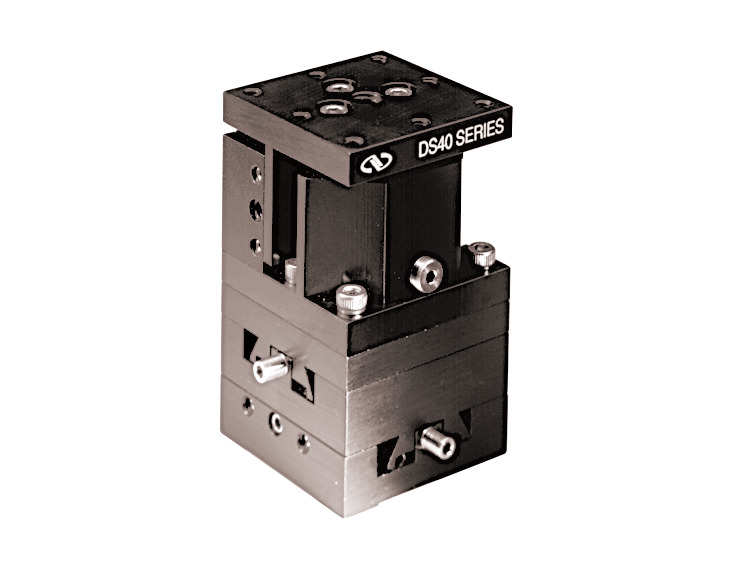

XYZ Linear Stage, Dovetail, 14 mm XY, 5 mm Z, 40 x 40 mm, Metric

The M-DS40-XYZ Compact Metric Dovetail Linear Stage is preferred for small 14 mm XYZ travel applications where set, lock, and forget is required. It is much less susceptible to shock and vibration than bearing stages. The DS series incorporates precision preloaded dovetail slides with an 80 TPI drive screw for precision positioning, hex head adjustment for tamper resistance, and an integral locking mechanism for high stability. The compact 40 x 40 x 65 mm size and critical features of this stage makes it ideal for OEM applications.

Dovetail Slide Bearings for Smooth Motion in a Compact Size

Dovetail stages are ideal for small, controlled travel to eventually remain locked in place for long time periods. These further compact version of the MT Dovetail stages also do not employ typical roller bearings of cylindrical rails, which makes them less susceptible to shock and vibration. These DS series dovetail stages slide along precision preloaded dovetail slides, whose unique shape ensures accurate, repeatable motion. These compact, modular stages are available in X, XY, or XYZ configurations with a lower footprint than the MT Dovetail series for the DS25 version.

Precise, 1 µm Step Control With Secure Hold Over Long Lifetimes

Each stage come equipped with an 80 TPI hex-driven drive screw for precision positioning of 1 µm while maintaining a low footprint. The motion can then be locked in place using an additional hex-screw controlled locking mechanism that insures placement over long times.

Slotted Base Plates

Slotted base plates are available for versatile mounting of DS stages to optical tables or other stages. Please see the accessory section for more information.

Easily Combined for Multi-axis Motion

The DS Series Linear Stages are compatible with RS Series Rotation Stages and GON Series Goniometric Stages of matching size (for example, RS40 with DS40, RS65 with DS65). They can be combined to provide multi-axis motion and can be easily adapted to fit a specific system's needs. A six-axis manual positioning system is shown using matched 65 x 65 mm stages.

Specifications

Technical Specs

Axes of Travel
X, Y, Z
Maximum Stage Travel
14 mm
Travel Range X, Y, Z
14 mm, 14 mm, 5 mm
Centered Normal Load Capacity
36 N
Recommended Actuators
Included
Sensitivity
1 µm
Material
Aluminum

Bearings
Dovetail Slide
Drive Location
Center drive
Platform Size
40 x 40 mm
Thread Type
M3 and M6

Axes of Travel
X, Y, Z
Maximum Stage Travel
14 mm
Travel Range X, Y, Z
14 mm, 14 mm, 5 mm
Centered Normal Load Capacity
36 N
Recommended Actuators
Included
Sensitivity
1 µm
Material
Aluminum

Bearings
Dovetail Slide
Drive Location
Center drive
Platform Size
40 x 40 mm
Thread Type
M3 and M6

Resources & Downloads

Drawings And Cad

DS40-XYZ-S(168.1 kB, PDF)

Other

DS Series_RoHS2021.pdf(651.5 kB, PDF)
REACH Supplier Statement - DS Series.pdf(498.3 kB, PDF)
