Manual Linear Stage, 16 mm Travel, Ball Bearings, M3 and M6 Threads

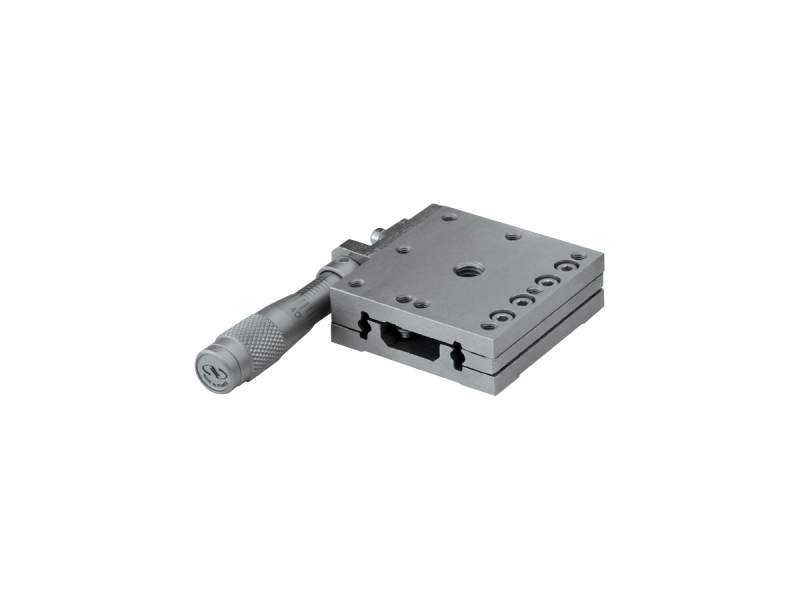

The M-SDS40 Metric Linear Translation Stage incorporates maximum performance and 16mm travel into a 40 x 40 x 13 mm footprint. Especially designed for industrial OEM system integration, the stainless steel construction features higher rigidity, superior clean room acceptability, and better long-term stability than aluminum stages. Our novel manufacturing methods, based on fewer machined parts, allows for a low-profile design with higher performance. The M-SDS40 has a 67 N load capacity and can be directly stacked into an XY-configuration, and an XYZ assembly can be built using the available 90° angle brackets. For mounting M-SDS40 stages to optical tables with a 25 mm grid or to other larger scale components, use our slotted base plates. For rotational movement, these stages are compatible with the RS Series Rotation Stages and GON Series Goniometers.

Sturdy Travel for Moderate Loads

Our novel manufacturing methods, based on fewer machined parts, allows for a low-profile design with higher performance for moderate load capacities up to 36 lbs. (160 N). They can be stacked into multi-axis configurations with 90° angle brackets available for vertical motion. (To mount M-SDS25 and SDS40 stages to optical tables having 1 in. (25 mm) or larger grid, Slotted Bases are needed and sold separately.)

Optimized Bearing Contact Profile for Smooth Travel

Compared to classic single-row ball bearing V-groove profile, SDS stages feature unique bearing way profile which provides extended contact with the stainless steel ball bearings to achieve improved stiffness, higher load capacity and optimized stress distribution at the end of the contacts.

Side Mounted Actuators for Minimum Footprint

Side-mounted micrometers minimizes the overall stage footprint while maintaining a low profile. These stages also feature an easy access locking mechanism for each axis. SDS Stages are available in three square sizes with sides measuring 25 mm, 40 mm, and 65 mm, and are supplied with a BM Series Micrometer already installed.

Slotted Base Plates

Slotted base plates are available for versatile mounting of SDS stages to optical tables or other stages. Please see the accessory section for more information.

Specifications

Technical Specs

Axes of Travel
X
Maximum Stage Travel
16 mm
Centered Normal Load Capacity
60 N
Vertical Axial Load Capacity
30 N
Graduations
20 µm
Sensitivity
1 µm
Angular Deviation
Pitch: <200 µrad
Yaw: <150 µrad
Material
Stainless Steel

Bearings
Single-Row Ball Bearings
Drive Location
Side drive
Platform Size
40 x 40 mm
Height
13 mm
Thread Type
M3 and M6
Recommended BM Micrometer
Included

Axes of Travel
X
Maximum Stage Travel
16 mm
Centered Normal Load Capacity
60 N
Vertical Axial Load Capacity
30 N
Graduations
20 µm
Sensitivity
1 µm
Angular Deviation
Pitch: <200 µrad
Yaw: <150 µrad
Material
Stainless Steel

Bearings
Single-Row Ball Bearings
Drive Location
Side drive
Platform Size
40 x 40 mm
Height
13 mm
Thread Type
M3 and M6
Recommended BM Micrometer
Included

Resources & Downloads

Drawings And Cad

SDS40-S(111.3 kB, PDF)
