Precision N-BK7 Right-Angle Prisms
Precision N-BK7 Right-Angle Prisms

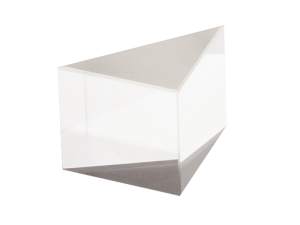

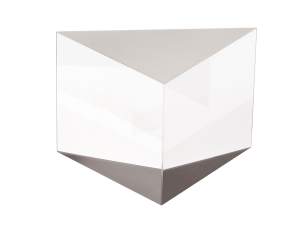

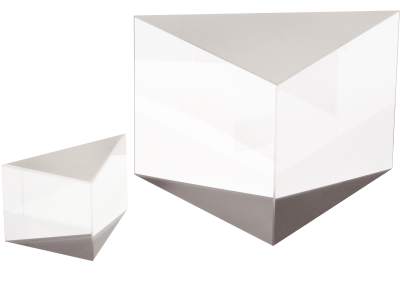

Precision N-BK7 prisms offer λ/4 surface flatness and several AR coatings for the most demanding applications, such as interferometry or holography in the visible and near IR range.
- Precision N-BK7 Substrates
- 20-10 scratch-dig
- λ/4 surface flatness
- 4 AR coatings to improve transmission
- Excellent for beam bending and retroreflection See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 05BR08 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 12.7 mm, λ/4, Uncoated | |||||
| 05BR08AR.14 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 12.7 mm, λ/4, 430-700 nm | |||||
| 05BR08AR.16 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 12.7 mm, λ/4, 650-1000 nm | |||||
| 05BR08AR.18 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 12.7 mm, λ/4, 1000-1550 nm | |||||
| 05BR08AR.33 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 12.7 mm, λ/4, 1064 nm | |||||
 | 10BR08 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 25.4 mm, λ/4, Uncoated | |||||
| 10BR08AR.14 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 25.4 mm, λ/4, 430-700 nm | |||||
| 10BR08AR.16 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 25.4 mm, λ/4, 650-1000 nm | |||||
| 10BR08AR.18 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 25.4 mm, λ/4, 1000-1550 nm | |||||
| 10BR08AR.33 Precision N-BK7 Right-Angle PrismsRight-Angle Prism, Precision, N-BK7, 25.4 mm, λ/4, 1064 nm |
Features
Total Internal Reflection
By means of total internal reflection (TIR), a right-angle prism may be used as a 90° reflector or as a 180° retroreflector. Except for reflection losses from the entry and exit faces, TIR exhibits 100% reflectivity over a very broad wavelength range. The reflecting surface should be coated with protected aluminum if the incidence angle exceeds that acceptable for TIR or if the environment does not allow the reflecting surface to be kept clean, as TIR requires.
N-BK7 for VIS and NIR Applications
High Quality Precision Prism Surfaces

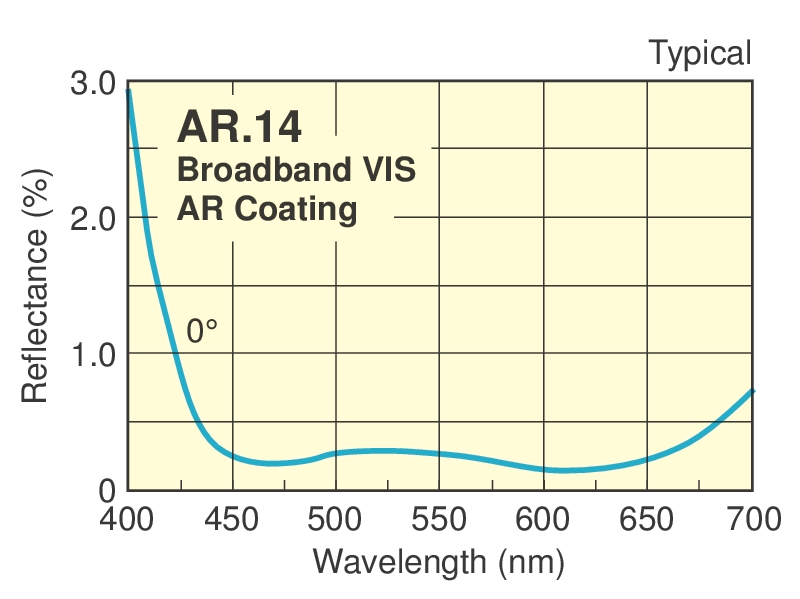

Broadband Visible Antireflection Coating
Broadband Multilayer NIR Antireflection Coating
Our AR.16 coating is recommended for NIR applications in the 650-1000 nm range.
Broadband Multilayer IR Antireflection Coating
Our AR.18 coating is for IR applications in the 1000-1550 nm range.
1064 nm Laser Line Antireflection V-Coating

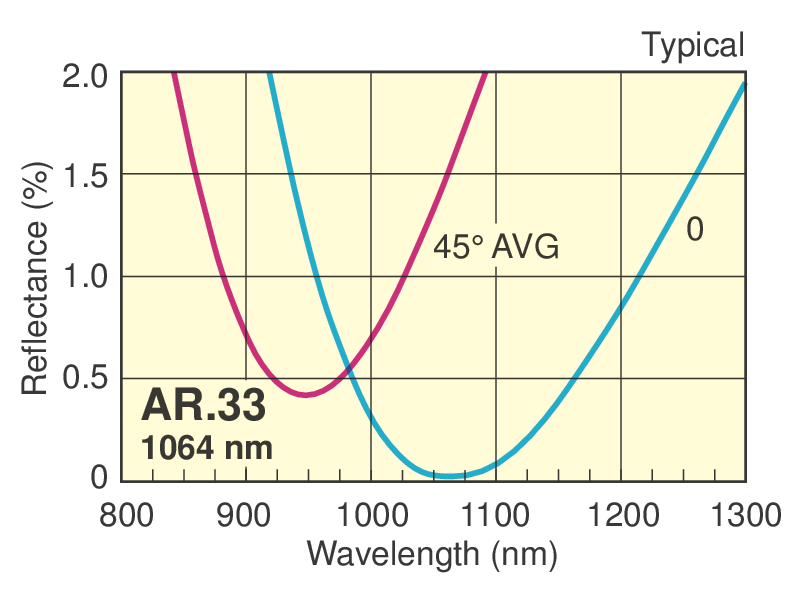

Our AR.33 laser line V-coating offers the lowest reflectance (maximum reflectivity per surface <0.25%, 0º-15º AOI) at 1064 nm for maximum transmission while maintaining high durability and high damage resistance. Valuable laser energy is efficiently transmitted rather than lost to surface reflection and scattering. The trade off to its superior performance is the minimal laser line wavelength range.
RoHS Compliant
