Precision Singlet Lens Sets

Available in either fused silica or N-BK7 materials, Newport's Precision Singlet Lens Sets can speed up assembly of complex optical setups and facilitate engineering prototype evaluation.

N-BK7 or UV grade fused silica substrates
Uncoated or AR coated optics
Master or introductory sets
Plano-convex, bi-convex, plano-concave, and bi-concave shapes,Easy to identify edge-marked product numbers
Conveniently organized in a protective hardwood case

See All Features

Show Filters:

Showing 24 of 24 total products

Compatibility:

Description	Compatibility	Antireflection Coating	Diameter	Quantity	Material	Avail.	Price
20LKT-1-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, Uncoated	UNIVERSAL	Uncoated	50.8 mm	41	N-BK7		$3,711
20LKT-1AR.14-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	50.8 mm	41	N-BK7		$4,771
20LKT-1AR.16-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, 650-1000 nm	UNIVERSAL	650-1000 nm	50.8 mm	41	N-BK7		$5,159
20LKT-1AR.18-PPrecision Singlet Lens Kit, Master, N-BK7, 50.8 mm, 41 Lenses, 1000-1550 nm	UNIVERSAL	1000-1550 nm	50.8 mm	41	N-BK7		$5,159
20LKT-2-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, Uncoated	UNIVERSAL	Uncoated	50.8 mm	20	N-BK7		$2,120
20LKT-2AR.14-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	50.8 mm	20	N-BK7		$2,636
20LKT-2AR.16-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, 650-1000 nm	UNIVERSAL	650-1000 nm	50.8 mm	20	N-BK7		$3,095
20LKT-2AR.18-PPrecision Singlet Lens Kit, Intro, N-BK7, 50.8 mm, 20 Lenses, 1000-1550 nm	UNIVERSAL	1000-1550 nm	50.8 mm	20	N-BK7		$3,095
LKIT-1-PPrecision Singlet Lens Kit, Master, N-BK7, 25.4 mm, 44 Lenses, Uncoated	UNIVERSAL	Uncoated	25.4 mm	44	N-BK7		$1,591
LKIT-1AR.14Singlet Lens Kit, Precision, N-BK7, 25.4 mm, 44 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	25.4 mm	44	N-BK7	Contact Us	$2,332
LKIT-1AR.14-PPrecision Singlet Lens Kit, Master, N-BK7, 25.4 mm, 44 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	25.4 mm	44	N-BK7		$2,332
LKIT-1AR.16-PPrecision Singlet Lens Kit, Master, N-BK7, 25.4 mm, 44 Lenses, 650-1000 nm	UNIVERSAL	650-1000 nm	25.4 mm	44	N-BK7		$3,180
LKIT-1AR.18Singlet Lens Kit, Precision, N-BK7, 25.4 mm, 44 Lenses, 1000-1550 nm	UNIVERSAL	1000-1550 nm	25.4 mm	44	N-BK7	Contact Us	$3,180
LKIT-1AR.18-PPrecision Singlet Lens Kit, Master, N-BK7, 25.4 mm, 44 Lenses, 1000-1550 nm	UNIVERSAL	1000-1550 nm	25.4 mm	44	N-BK7		$3,180
LKIT-2-PPrecision Singlet Lens Kit, Intro, N-BK7, 25.4 mm, 20 Lenses, Uncoated	UNIVERSAL	Uncoated	25.4 mm	20	N-BK7		$947
LKIT-2AR.14-PPrecision Singlet Lens Kit, Intro, N-BK7, 25.4 mm, 20 Lenses, 430-700 nm	UNIVERSAL	430-700 nm	25.4 mm	20	N-BK7		$1,059
LKIT-2AR.16-PPrecision Singlet Lens Kit, Intro, N-BK7, 25.4 mm, 20 Lenses, 650-1000 nm	UNIVERSAL	650-1000 nm	25.4 mm	20	N-BK7		$1,590
LKIT-2AR.18-PPrecision Singlet Lens Kit, Intro, N-BK7, 25.4 mm, 20 Lenses, 1000-1550 nm	UNIVERSAL	1000-1550 nm	25.4 mm	20	N-BK7		$1,612
LKIT-FS1Singlet Lens Kit, Precision Master, UVFS, 25.4 mm, 30 Lenses, Uncoated	UNIVERSAL	Uncoated	25.4 mm	30	UV Fused Silica		$4,953
LKIT-FS1-PPrecision Singlet Lens Kit, Master, UVFS, 25.4 mm, 30 Lenses, Uncoated	UNIVERSAL	Uncoated	25.4 mm	30	UV Fused Silica		$4,953
LKIT-FS1AR.10-PPrecision Singlet Lens Kit, Master, UVFS, 25.4 mm, 30 Lenses, 245-440 nm	UNIVERSAL	245-440 nm	25.4 mm	30	UV Fused Silica		$6,299
LKIT-FS2-PPrecision Singlet Lens Kit, Intro, UV Silica, 25.4 mm, 15 Lenses, Uncoated	UNIVERSAL	Uncoated	25.4 mm	15	UV Fused Silica		$2,633
LKIT-FS2AR.10Singlet Lens Kit, Precision, UV Silica, 25.4 mm, 15 Lenses, 245-440 nm	UNIVERSAL	245-440 nm	25.4 mm	15	UV Fused Silica		$3,298
LKIT-FS2AR.10-PPrecision Singlet Lens Kit, Intro, UV Silica, 25.4 mm, 15 Lenses, 245-440 nm	UNIVERSAL	245-440 nm	25.4 mm	15	UV Fused Silica		$3,298

Show Less

Features

Standard Optics Sets with Edge Marked Optics

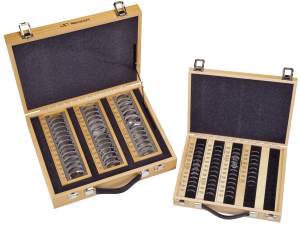

Our standard optic sets include a wood case organized by part number and key optic information. Confusion in identifying optical components is eliminated with edge marked part numbers on every optic in the OptiSet™. All edge markings are impervious to standard optical cleaning solutions.

N-BK7 Master Sets

These lens sets provide a comprehensive selection of lens shapes and focal lengths in N-BK7 optical glass. Plano-convex and bi-convex lenses are provided with focal lengths from 19 to 1000 mm for the 25.4 mm set and 38.1-1000 mm for the 50.8 mm set. Focal lengths from -25 to -200 mm for the 25.4 mm set and -75 to -500 mm for the 50.8 mm set are provided in plano-concave and bi-concave lens shapes.

N-BK7 Introductory Sets

These lens sets provide a more economical selection of lenses that can be expanded upon special request. Like the N-BK7 Master Sets, the lenses in these sets are made from quality N-BK7 optical glass. All four basic shapes are included in this streamlined version of the Master Set.

Model	Plano-Convex	Bi-Convex	Plano-Concave	Bi-Concave
LKIT-1 Master	KPX076, KPX079, KPX082, KPX085, KPX088, KPX091, KPX094, KPX097, KPX100, KPX103, KPX106, KPX109, KPX112, KPX115, KPX118, KPX121, KPX124	KBX043, KBX046, KBX049, KBX052, KBX055, KBX058, KBX061, KBX064, KBX067, KBX070, KBX073, KBX076, KBX079, KBX082, KBX088	KPC028, KPC031, KPC034, KPC037, KPC040, KPC043	KBC031, KBC034, KBC037, KBC040, KBC043, KBC046
LKIT-2 Intro	KPX076, KPX079, KPX082, KPX088, KPX094, KPX100, KPX106, KPX112, KPX118, KPX124	KBX046, KBX052, KBX058, KBX064, KBX076, KBX082	KPC031, KPC040, KPC043	KBC046
20LKT-1 Master	KPX178, KPX181, KPX184, KPX187, KPX190, KPX193, KPX196, KPX199, KPX202, KPX205, KPX208, KPX211, KPX214, KPX217	KBX139, KBX142, KBX145, KBX148, KBX151, KBX154, KBX157, KBX160, KBX163, KBX166, KBX169, KBX172, KBX175, KBX178, KBX184	KPC064, KPC067, KPC070, KPC073, KPC076, KPC079	KBC070, KBC073, KBC076, KBC079, KBC082, KBC085
20LKT-2 Intro	KPX187, KPX193, KPX199, KPX202, KPX205, KPX208, KPX211, KPX214, KPX217	KBX139, KBX142, KBX148, KBX154, KBX160, KBX166, KBX178	KPC064, KPC070, KPC076	KBC085

UV Fused Silica Master Sets

These are comprehensive collections of 25.4 mm diameter UV grade fused silica lenses. Focal lengths range from 25.4 to 1000 mm in plano-convex and bi-convex lenses and -50 to -1000 mm in plano-concave and bi-concave lens shapes.

UV Fused Silica Introductory Sets

These sets contain more limited collections of UV grade fused silica lenses. They are economical selections of all four lens shapes that can be expanded upon special request.

Model	Plano-Convex	Bi-Convex	Plano-Concave	Bi-Concave
LKIT-FS1 Master	SPX016, SPX019, SPX022, SPX025, SPX028, SPX031, SPX035	SBX019, SBX022, SBX025, SBX028, SBX031, SBX034, SBX037, SBX040, SBX043	SPC016, SPC019, SPC022, SPC025, SPC028, SPC031, SPC034	SBC016, SBC019, SBC022, SBC025, SBC028, SBC031, SBC034
LKIT-FS2 Intro	SPX016, SPX019, SPX022, SPX025, SPX028, SPX031, SPX034	SBX016, SBX022, SBX025, SBX028	SPC025, SPC028, SPC034	SBC034

Antireflection Coatings

Antireflection coatings can significantly improve the transmission of a multi-element optical system. Any of our standard broadband AR coatings are available as lens set options. Laser line V-coatings are available on special request. See Broadband Multilayer Antireflection Coatings and Laser Line Antireflection V-Coatings for antireflection coating specifications.

-P Optics Sets with Laser Etched Optics

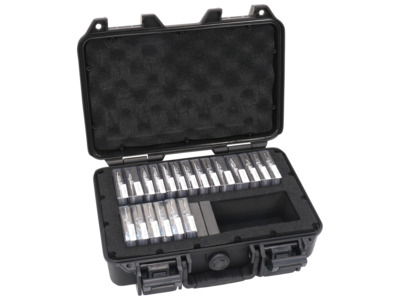

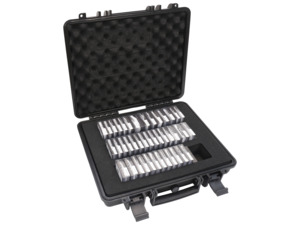

Our -P optic sets include a plastic carrying case with individual protective plastic cases for each optic marked with the part number and key optic information. Confusion in identifying optical components is eliminated with laser etched part numbers on the edge of every optic in the set.
