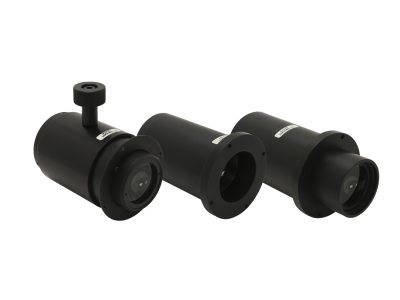

Q Series Condenser Lenses
Q Series Condenser Lenses
Q series condensing lens assemblies are compatible with the model 60000 Q series lamp housing. Up to four condensers may be installed, which can provide simultaneous illumination of multiple samples. The lens assemblies can be used to create a unique light source configuration or reconfiguring an existing light source system.
- Condenser Lenses for Q Series lamp housings
- Up to 4 can be installed for simultaneous illumination
- Asphere or plano-convex lenses
- 1.5 Inch flange for beam routing See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 60006 Q Series Housing Condenser LensesCondensing Lens Assembly, Q Series Lamp Housing, F/1.5 Plano-Convex | |||||
 | 60008 Q Series Housing Condenser LensesCondensing Lens Assembly, Q Series Lamp Housing, F/0.85 Asphere | |||||

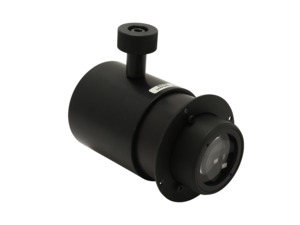

 | 60076 Q Series Housing Condenser LensesCondensing Lens Assembly, Q Series Lamp Housing, F/1 Plano-Convex | |||||

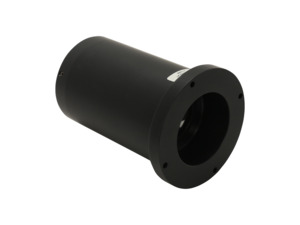

 | 67008 Q Series Housing Condenser LensesCondensing Lens Assembly, Q Series Lamp Housing, F/2.2 Asphere | Discontinued | ||||

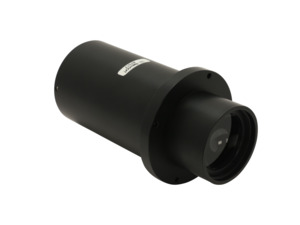

 | 67017 Q Series Housing Condenser LensesCondensing Lens Assembly, Q Series Lamp Housing, F/1 Asphere | |||||
Resources
Literature
Light Sources(1.6 MB, PDF)
