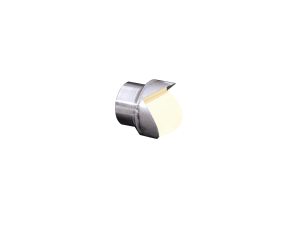

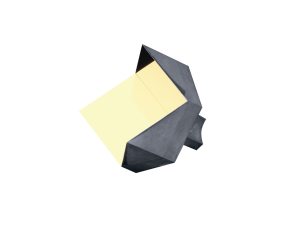

Replicated Hollow Metal Retroreflectors
Replicated Hollow Metal Retroreflectors
Our replicated hollow metal retro reflectors are fabricated from a single solid piece of aluminum, resulting in return beam accuracy unaffected by vibration. Mirrors are front surface coated with gold for maximum IR reflectivity.
- Monolithic, all metal retro reflector construction
- As low as 2 arc second return beam accuracy
- Rugged, impact resistant construction
- -40 to 100 °C operating temperature range
- Coating Adhesion/humidity resistance MIL-F-48616
- Integral mount See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 50326-0505 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 12.7 mm OD, 5 arc sec RBA | |||||
| 50326-0510 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 12.7 mm OD, 10 arc sec RBA | |||||
 | 50326-0802 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 19.1 mm OD, 2 arc sec RBA | |||||
| 50326-0805 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 19.1 mm OD, 5 arc sec RBA | |||||
| 50326-0810 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 19.1 mm OD, 10 arc sec RBA | |||||
 | 50326-1002 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 25.4 mm OD, 2 arc sec RBA | |||||
| 50326-1005 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 25.4 mm OD, 5 arc sec RBA | |||||
| 50326-1010 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 25.4 mm OD, 10 arc sec RBA | |||||
 | 50326-1502 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 38.1 mm OD, 2 arc sec RBA | |||||
| 50326-1505 Replicated Hollow Metal RetroreflectorsHollow Metal Retroreflector, Replicated, 38.1 mm OD, 5 arc sec RBA |
Features
Stable Monolithic Construction
Our replicated hollow metal retroreflectors are monolithic, fabricated from a single piece of aluminum, resulting in return beam accuracy unaffected by vibration. Vibration sensitivity is reduced further by employing an integrated mount in the design.

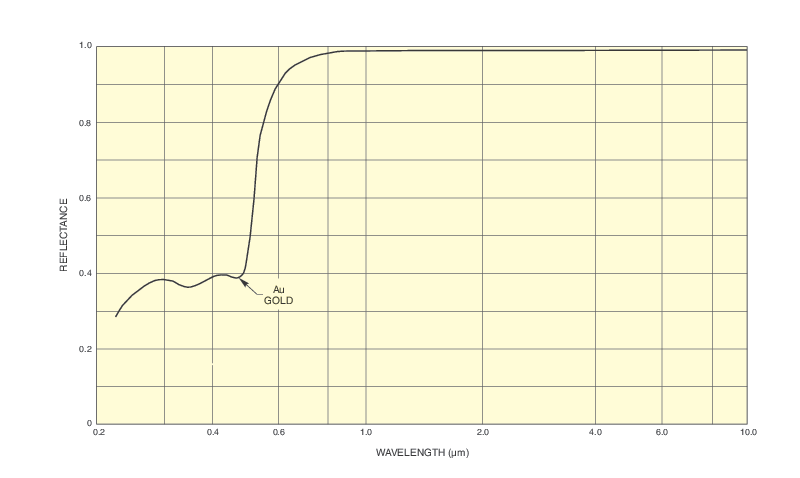

Gold Coating with High IR Reflectivity
Front surface coated with gold for high reflectivity in the IR and deep IR.
Advantages vs. Glass Retro Reflectors
Unlike solid glass retroreflectors, the optical path is entirely in air so efficient performance is obtained without antireflection coatings which limit the operating wavelength range. Using a novel patented fabrication technique, return beam accuracy as low as 2 arc sec. is economically achieved. These retroreflectors are offered in 12.7, 19.1, 25.4, 38.1, or 63.5 mm diameter and 30, 10, 5, or 2 arc sec return beam accuracy.
Alignment Free 180 Degree Reflection
Retroreflectors, also known as corner cubes as all three mirror surfaces are perpendicular, will reflect all incoming light 180° regardless of incidence angle. This enables 180 degrees reflection of a beam without requiring prior alignment (as with a flat mirror). Images reflected by a corner cube are reversed and inverted.
