Miniature Platform Mirror Mounts
Miniature Platform Mirror Mounts
Space-saving miniature platform mounts are half the size of our standard mounts, yet they provide the same high level of performance you’ve come to count on.
- 1 in. and smaller platform sizes
- Knob adjustment screws
- Compatible with UPA mirror cup holders See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9771 Miniature Platform Mirror MountsPlatform Mirror Mount, 0.5 or 1.0 in., 2 Knob Adjustment, 8-32 Thread | |||||
| 9771-K Miniature Platform Mirror MountsEC Platform Mirror Mount, 0.5 or 1.0 in., 2 Allen-Key Adjustment, 8-32 | Discontinued | ||||
| 9771-K-M Miniature Platform Mirror MountsEC Platform Mirror Mount, 0.5 or 1.0 in., 2 Allen-Key Adjustment, M4 | Discontinued | ||||
| 9771-M Miniature Platform Mirror MountsPlatform Mirror Mount, 0.5 or 1.0 in., 2 Knob Adjustment, M4 Thread | |||||

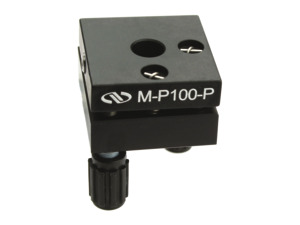

 | M-P100-P Miniature Platform Mirror MountsPlatform Optical Mount, Performa, 1.0 in., 2 Knob Adjustment, M4 | |||||

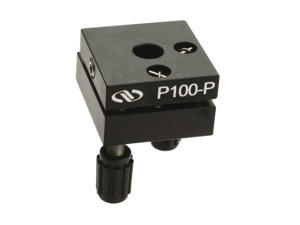

 | P100-P Miniature Platform Mirror MountsPlatform Optical Mount, Miniature, 1.0 in., 2 Knob Adjustment, 8-32 | |||||
Features
Miniature Platform Mounts
Miniature Platform Mounts are available in three compact sizes: 1.00-, 0.75-, and 0.50-in. These mounts cover the most frequently used OEM mirror sizes.

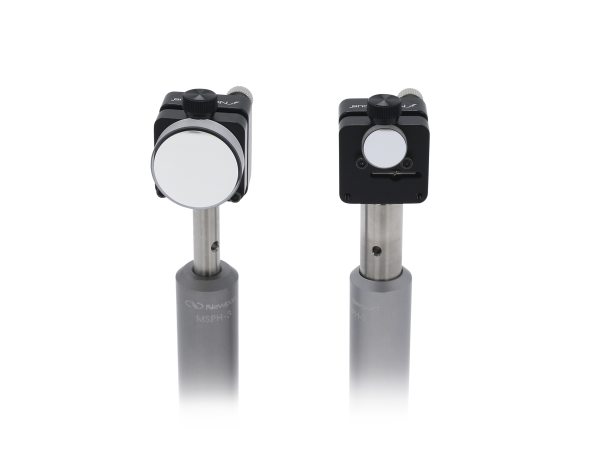

EC Platform Mounts
9771 and 9771-M EC Platform mounts are designed to be space saving and versatile. These mounts can hold Ø1 in. as well as Ø0.5 in. mirrors without the addition of any adaptors. Their small 1 in. square frame with mounting pegs provides a configurable platform for quickly mounting mirrors. The EC Platform mirror mount can also be used in a horizontal orientation for aligning prisms and beam splitters.
Horizontal or Vertical Mounting
P100-P platform mounts can be post mounted as a horizontal tip/tilt platform using the threaded hole in the center or a vertical mount using the threaded hole on the side.

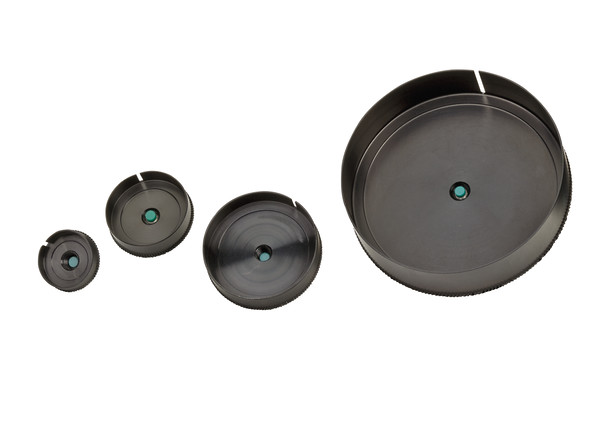

Mirror Cup Adapters
P100-P platform mounts are compatible with Mirror Cup Adaptors which provide a convenient and stable method to hold the optic. The adapter attaches to the face of the platform mount through the 1/4-in. hole in the center of the platform and is locked in place by a set screw from the side.
