Standard Periscopes

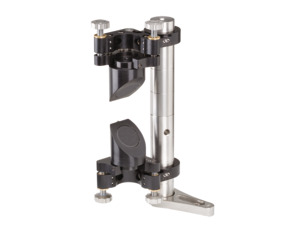

Standard pedestal periscopes have two fully adjustable ULTIMA^® Mirror Mounts with 45° mirror holders for 1 in. diameter mirrors for precise beam positioning. Sliding clamps on an 8 in. high stainless steel optical pedestal provide easy height adjustment, as well as a secure mounting. Extension posts are also available for building taller periscopes.

ULTIMA mirror mounts & 1 in. stainless steel pedestal posts for top performance
66 to 156 mm optical axis height adjustment
Removable 45 degree mirror holders work with other ULTIMA adaptors
Easily removable actuators to allow upgrades to micrometers or other actuators

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		BSD-2A Standard PeriscopesPedestal Periscope, 6.1-in.(156-mm) Max Height, 1-in. Mirrors, English	IMPERIAL			$636
		M-BSD-2A Standard PeriscopesPedestal Periscope, 156 mm Max Height, 25.4 mm Mirrors, Metric	METRIC			$636

Features

ULTIMA Mirror Mounts for Top Performance

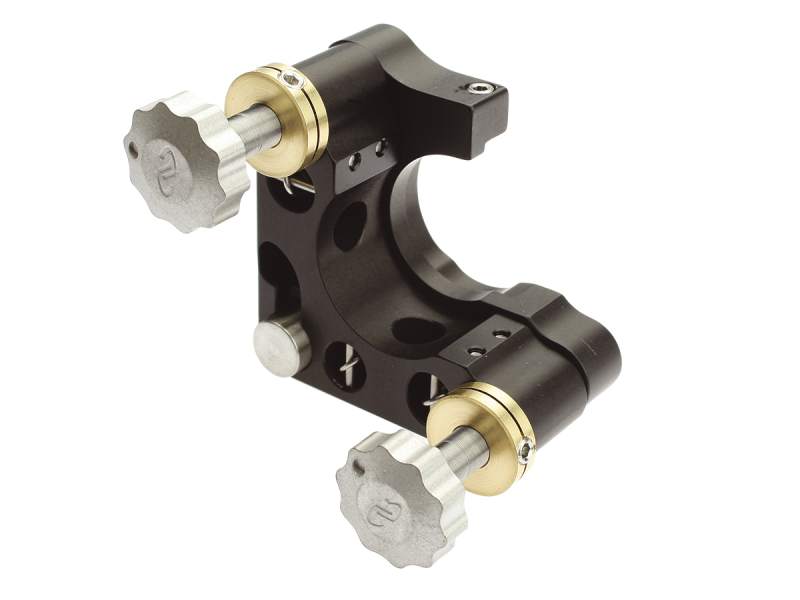

ULTIMA Mirror Mounts used offer unsurpassed functionality. Thick front and rear plates and optimized, stiff springs improve the long-term stability and provide greater protection against vibrations. Hard carbide pads enable smooth, repeatable motion. This optical mount includes two 100 TPI non-locking actuators with knob providing ±7° of tip/tilt adjustment.

Easily Extend Height Adjustment Range

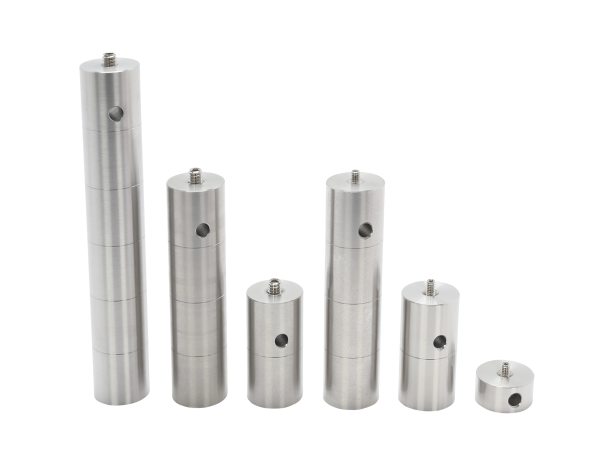

BSD periscope is built with 1 in. diameter solid stainless steel pedestail and post. If a taller beam steerer is required, simply attach a PS series extension post on top.

Quick Change Actuators

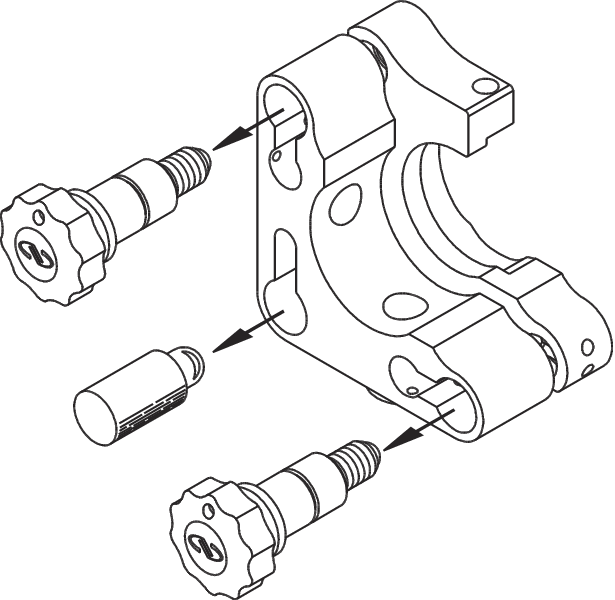

The actuators can be quickly changed to accommodate a broad selection of adjustment screws, micrometers, and motorized actuators. See compatible actuators in Accessories section below.

Compatible With ULTIMA Optic Adaptors

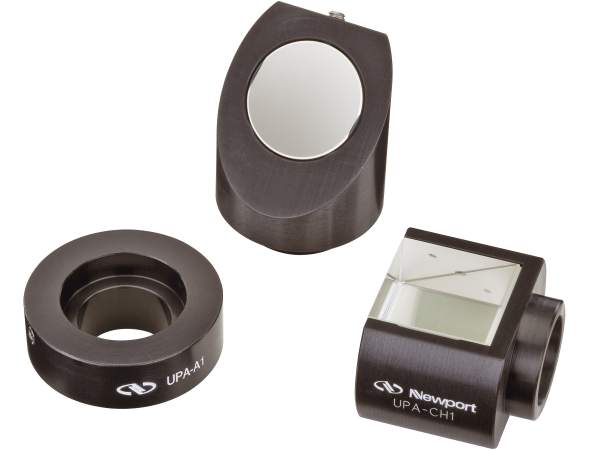

The 45-degree mirror holders used on the BSD-2A periscope are easily removable allowing other ULTIMA series optic adaptors to be used in their place.

Accessories

Description	Compatibility	Price
M-PS-4E Optical Post, 101.6 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	$38
M-PS-SC Post Clamp, Sliding, 25.4 mm Diameter Posts, M4 Thread	METRIC	$42
PS-4E Optical Post, 4.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	$38
PS-SC Post Clamp, Sliding, 1.0 in. Diameter Posts, 8-32 Thread	IMPERIAL	$42

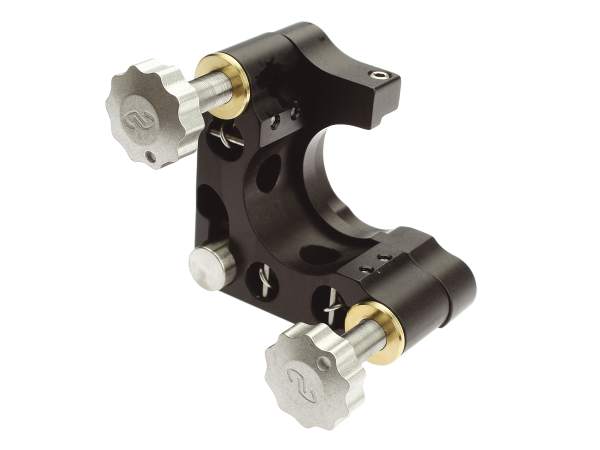

U100-A2K Mirror Mount, ULTIMA<sup>®</sup>, Clear Edge, 1.0 in., 2 Locking Knobs	UNIVERSAL	$147
U100-A3K Mirror Mount, ULTIMA<sup>®</sup>, Clear Edge, 1.0 in., 3 Locking Knobs	UNIVERSAL	$181
UPA-45D1 45 Degree Mirror Holder, 25.4 mm Diameter	UNIVERSAL	$58

Compatible

Description	Compatibility	Price
AJS100-0.5H Hex Adjustment Screw, 100 TPI, 12.7 mm Travel, End Lock	UNIVERSAL	$39
AJS100-0.5K Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock	UNIVERSAL	$39
AJS100-0.5K-NL Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob	UNIVERSAL	$32
HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel	UNIVERSAL	$229
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	$103
TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor	UNIVERSAL	$1,065
TRA12PPD Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	$1,065
