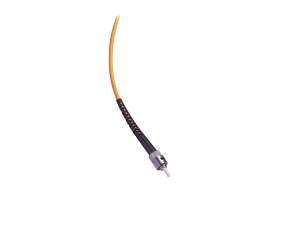

Single Mode Standard Patch Cables

Newport’s Single Mode Standard Patch cables are all-glass fibers supporting single-mode light propagation for many wavelength ranges.

Popular patch cords available off-the shelf
Single-mode operation at from 300 to 1550 nm
Many available fiber connectors and lengths
Custom patch cables are also available

See All Features

Show Filters:

Showing 28 of 28 total products

Compatibility:

Description	Compatibility	Operating Wavelength	Fiber Length	Fiber Connector	Numerical Aperture	Core Diameter	Price
F-SA-C-10FCFiber Patch Cord, Singlemode, 488/514nm, F-SA-C, 10m, FC/UPC Connectors.	UNIVERSAL	488/633 nm	10 m	FC/UPC	0.10-0.14	3.4 µm	$255
F-SA-C-3FCFiber Patch Cord, Singlemode, 488/514nm, F-SA-C, 3m, FC/UPC Connectors.	UNIVERSAL	488/633 nm	3 m	FC/UPC	0.10-0.14	3.4 µm	$130
F-SA-C-3FCAFiber Patch Cord, Singlemode, 488/514nm, F-SA-C, 3m, FC/APC Connectors	UNIVERSAL	488/633 nm	3 m	FC/APC	0.10-0.14	3.4 µm	$120
F-SA-C-5FCFiber Patch Cord, Singlemode, 488/514nm, F-SA-C, 5m, FC/UPC Connectors.	UNIVERSAL	488/633 nm	5 m	FC/UPC	0.10-0.14	3.4 µm	$160
F-SBC-C-1FCFiber Patch Cord, Singlemode, F-SBC, 1310/1550 nm, 1 m, FC/UPC	UNIVERSAL	1310/1550 nm	1 m	FC/UPC	0.16		$80
F-SC-C-3FCFiber Patch Cord, Singlemode, 980/1550nm, F-SC-C, 3m, FC/UPC Connectors	UNIVERSAL	980/1550 nm	3 m	FC/UPC	0.17-0.19	4.5/7.5 µm	$95
F-SE-C-1FCFiber Patch Cord, Singlemode, 780nm, F-SE-C, 1m, FC/UPC Connectors.	UNIVERSAL	780 nm	1 m	FC/UPC	0.10-0.14	5.4 µm	$90
F-SE-C-1FCAFiber Patch Cord, Singlemode, 780nm, F-SE-C, 1m, FC/APC Connectors	UNIVERSAL	780 nm	1 m	FC/APC	0.10-0.14	5.4 µm	$90
F-SE-C-3FCAFiber Patch Cord, Singlemode, 780nm, F-SE-C, 3m, FC/APC Connectors	UNIVERSAL	780 nm	3 m	FC/APC	0.10-0.14	5.4 µm	$115
F-SF-C-3FCFiber Patch Cord, Singlemode, 820nm, F-SF-C, 3m, FC/UPC Connectors.	UNIVERSAL	820 nm	3 m	FC/UPC	0.10-0.14	5.7 µm	$125
F-SF-C-3FCAFiber Patch Cord, Singlemode, 820nm, F-SF-C, 3m, FC/APC Connectors.	UNIVERSAL	820 nm	3 m	FC/APC	0.10-0.14	5.7 µm	$110
F-SF-C-5FCFiber Patch Cord, Singlemode, 820nm, F-SF-C, 5m, FC/UPC Connectors.	UNIVERSAL	820 nm	5 m	FC/UPC	0.10-0.14	5.7 µm	$130
F-SM-300-SC-C-2FCAFiber Patch Cord, Singlemode, F-SC-C, 320-430 nm, 2 m, FC/APC	UNIVERSAL	320 - 430 nm	2 m	FC/APC	0.10-0.14		$180
F-SM-300-SC-C-3FCFiber Patch Cord, Singlemode, F-SC-C, 320-430 nm, 3 m, FC/UPC	UNIVERSAL	320 - 430 nm	3 m	FC/UPC	0.10-0.14		$175
F-SMF-28-C-10FCAFiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 10m, FC/APC Connectors	UNIVERSAL	1310/1550 nm	10 m	FC/APC	0.14	8.2 µm	$115
F-SMF-28-C-1FCFiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 1m, FC/UPC Connectors	UNIVERSAL	1310/1550 nm	1 m	FC/UPC	0.14	8.2 µm	$24
F-SMF-28-C-1FCAFiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 1m, FC/APC Connectors	UNIVERSAL	1310/1550 nm	1 m	FC/APC	0.14	8.2 µm	$95
F-SMF-28-C-1STFiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 1m, ST/UPC Connectors (RoHS Pending).	UNIVERSAL	1310/1550 nm	1 m	ST/UPC	0.14	8.2 µm	$12.50
F-SMF-28-C-3FCFiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 3m, FC/UPC Connectors	UNIVERSAL	1310/1550 nm	3 m	FC/UPC	0.14	8.2 µm	$24
F-SMF-28-C-3FCAFiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 3m, FC/APC Connectors	UNIVERSAL	1310/1550 nm	3 m	FC/APC	0.14	8.2 µm	$90
F-SMF-28-C-3STFiber Patch Cord, Singlemode, 1310/1550nm, F-SMF-28-C, 3m, ST/UPC Connectors	UNIVERSAL	1310/1550 nm	3 m	ST/UPC	0.14	8.2 µm	$25
F-SV-C-1FCFiber Patch Cord, Singlemode, 633nm, F-SV-C, 1m, FC/UPC Connectors.	UNIVERSAL	633 nm	1 m	FC/UPC	0.10-0.14	4.3 µm	$95
F-SV-C-1FCAFiber Patch Cord, Singlemode, 633nm, F-SV-C, 1m, FC/APC Connectors.	UNIVERSAL	633 nm	1 m	FC/APC	0.10-0.14	4.3 µm	$95
F-SV-C-3FCFiber Patch Cord, Singlemode, 633nm, F-SV-C, 3m, FC/UPC Connectors.	UNIVERSAL	633 nm	3 m	FC/UPC	0.10-0.14	4.3 µm	$110
F-SV-C-3FCAFiber Patch Cord, Singlemode, 633nm, F-SV-C, 3m, FC/APC Connectors.	UNIVERSAL	633 nm	3 m	FC/APC	0.10-0.14	4.3 µm	$115
F-SV-C-5FCFiber Patch Cord, Singlemode, 633nm, F-SV-C, 5m, FC/UPC Connectors.	UNIVERSAL	633 nm	5 m	FC/UPC	0.10-0.14	4.3 µm	$150
F-SY-C-1FCFiber Patch Cord, Singlemode, 980-1550 nm, F-SY-C, 1m, FC/UPC Connectors.	UNIVERSAL	980-1550 nm	1 m	FC/UPC	0.13-0.15	5.8 µm	$90
F-SY-C-3FCFiber Patch Cord, Singlemode, 980-1550nm, F-SY-C, 3m, FC/UPC Connectors	UNIVERSAL	980-1550 nm	3 m	FC/UPC	0.13-0.15	5.8 µm	$115

Show Less

Specifications

Index Profile
Step
(F-SM-300: Depressed-clad)
Fiber Type
Singlemode
Fiber Jacket
Yes
Mode Field Diameter, Nominal
See product page
Cladding Diameter
125 ±1 µm
(F-SBC-C: ±2 µm)

Coating Diameter
245 µm
See product page for tolerance
Cable Diameter
2.5 mm
(F-SMF-28: 3.0 mm)
Cut-off Wavelength
See product page
Buffer Coating Material
Dual Acrylate
Proof Test
100 kpsi

Features

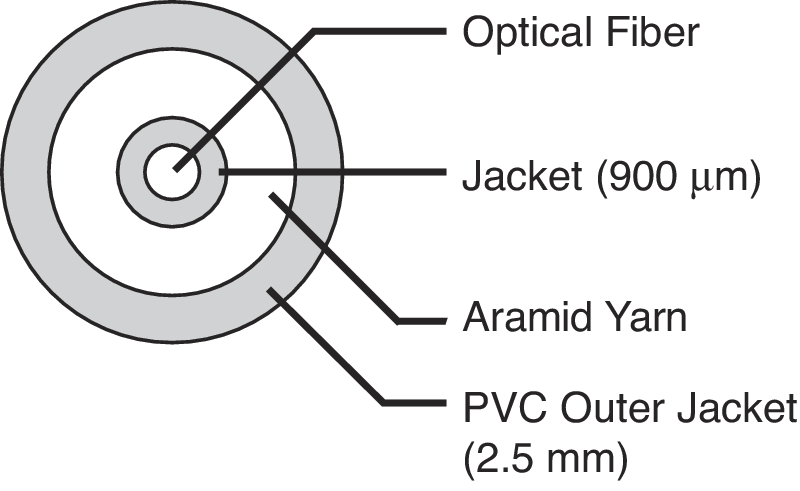

Fiber Construction

Our standard patch cables are available in several different lengths and connector types. These fibers have a 900 µm jacket surrounded by a layer of Aramid yarn for extra protection. A 2.5 mm PVC cable jacket provides additional environmental protection.

Custom Singlemode Patch Cables

Use Model Number to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.

Excellent Performance

Our Standard Patch Cables exhibit low attenuation while utilizing step-index fibers and also have a uniform core refractive index and a matched-clad profile.

Popular Versions Available Off-the-shelf

We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths of near UV 300, visible 488/514, 633, infrared 780, 820, 980, 1060 or 1300/1550 nm. If there is not a standard patch cable available for your application, please try our custom patch cable configurator:

Applications

Sensors
Instrumentation
Device pigtailing
Light delivery

Accessories

Custom Fiber-optic Patch Cords

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		F-PATCH-CUSTOMOptical Fiber Patch Cable, Custom Configurator	UNIVERSAL
