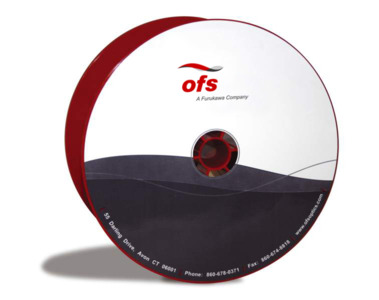

Bend Insensitive Single Mode Fibers

Newport offers an extensive line of bend insensitive specialty optical fiber products.

Reduced bend loss sensitivity versus standard telecom fibers
Good splicing performance
High strength
Available in both 80 and 125 µm clad diameter
Multiple fiber wraps on a mandrel

Description	Compatibility	Avail.	Price
F-SBA Bend Insensitive Single Mode FibersOptical Fiber, Singlemode, 820 nm, Bend Insensitive	UNIVERSAL	Discontinued
F-SBB Bend Insensitive Single Mode FibersOptical Fiber, Singlemode, 820 nm, Bend Insensitive, Reduced Cladding.	UNIVERSAL		$5.30 /meter
F-SBC Bend Insensitive Single Mode FibersOptical Fiber, Singlemode, 1310/1550 nm, Bend Insensitive	UNIVERSAL		$12 /meter
F-SBD Bend Insensitive Single Mode FibersSinglemode Fiber, 1310/1550 nm, Bend Insensitive, Reduced Cladding	UNIVERSAL		$18 /meter

Features

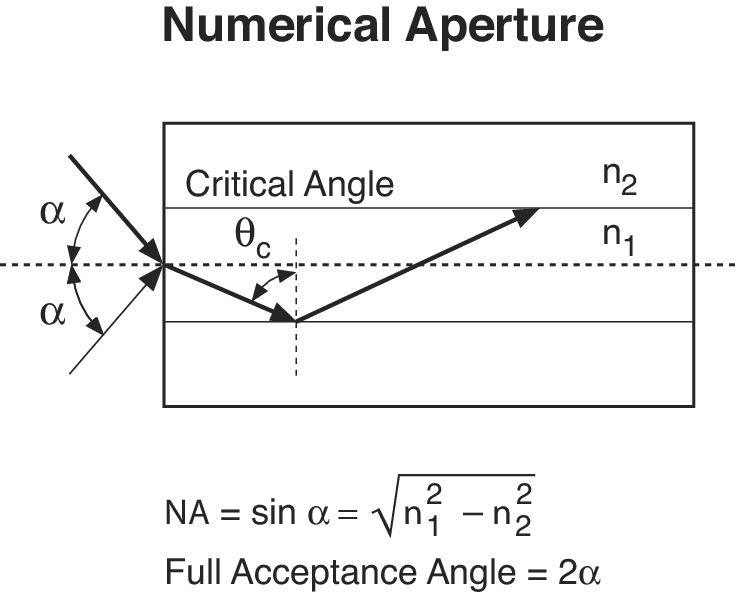

High NA Available

Bend-insensitive, single-mode sensor grade fibers, available with 820, 1310, and 1550 nm cutoff wavelengths, feature a high NA of 0.16, making them suitable for tightly wound fiber spools for a variety of sensing applications. At 1310 nm, for example, the maximum bend induced attenuation, due to 100 fiber turns on a 10 mm mandrel, is only 0.05 dB!

Reduced Cladding Diameter Fiber Available

Both 80 and 125 µm cladding diameters are available, with bend insensitivity increasing with smaller fiber diameter. These fibers are commonly used in fiber optic gyroscope assemblies or in optical fiber payout systems. The reduced cladding diameter fibers are designed to reduce static fatigue when the fiber is coiled, giving a longer mechanical lifetime in small coil diameters. Reduced cladding diameter fibers are offered with a high NA to benefit both from improved bend losses and improved mechanical lifetime when coiled tightly.

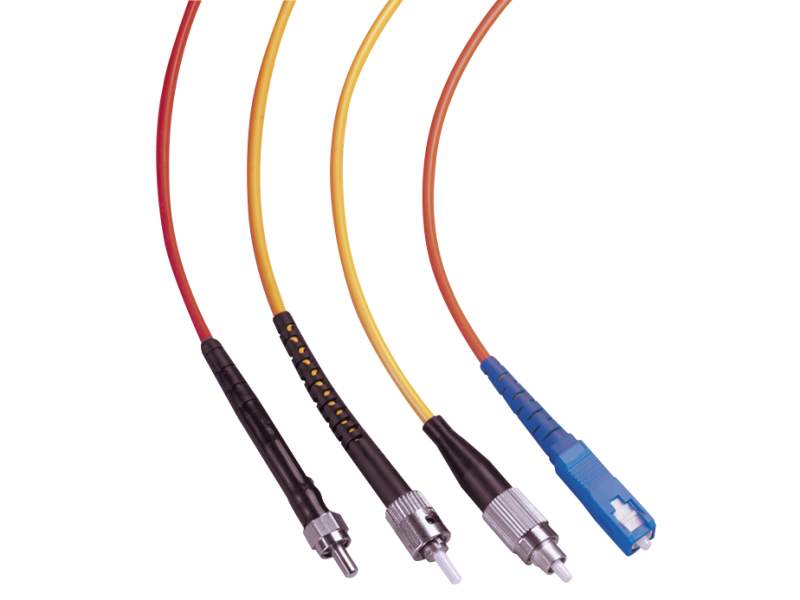

Custom Singlemode Patch Cables

Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.
