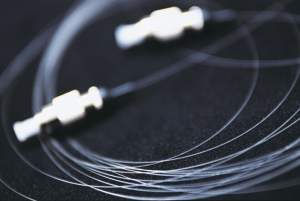

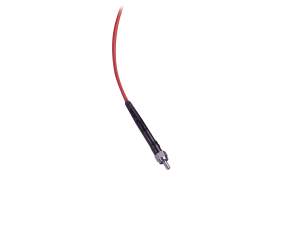

Standard Multimode Fiber Patch Cables
Standard Multimode Fiber Patch Cables
Newport’s Multimode Standard Patch Cables are all-glass fibers supporting multimode light propagation.
- Multimode operation at from 250 to 2100 nm
- Fiber Cables available in many lengths with different connectors
- Custom Patch Cables also available See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-MBB-C-1FCFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBB-C, 1 m, FC | |||||
| F-MBB-C-2FCFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBB-C, 2 m, FC. | |||||
| F-MBB-C-3FCFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBB-C, 3 m, FC | |||||
 | F-MBC-C-5SMAFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBC-C, 5 m, SMA | |||||
| F-MBE-1FCFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBE, 1 m, FC | |||||
| F-MBE-1SMAFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBE, 1 m, SMA. | |||||
| F-MBE-5SMAFiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBE, 5 m, SMA. | |||||
 | F-MCB-T-1FCMultimode Fiber Patch Cord, Step Index, High Temperature, F-MCB-T, 1 m, FC | |||||
| F-MCB-T-1SMAMultimode Fiber Patch Cord, Step Index, High Temperature, F-MCB-T, 1 m, SMA. | |||||
| F-MCC-T-1FCMultimode Patch Cord, Step Index, High Temperature, F-MCC-T,, 1 m, FC. | |||||
| F-MCC-T-1SMAMultimode Patch Cord, Step Index, High Temperature, F-MCC-T, 1 m, SMA. | |||||
| F-MCC-T-2SMAMultimode Patch Cord, Step Index, High Temperature, F-MCC-T, 2 m, SMA | |||||
| F-MCC-T-3SMAMultimode Fiber Patch Cord, Step Index, High Temperature, F-MCC-T, 3 m, SMA. | |||||
| F-MCC-T-5SMAMultimode Patch Cord, Step Index, High Temperature, F-MCC-T, 5 m, SMA. | |||||
| F-MFC-C-1FCFiber Patch Cord, High Power Density, 500-2100 nm, F-MFC, 1 m, FC. | |||||
| F-MFC-C-3FCFiber Patch Cord, High Power Density, 500-2100 nm, F-MFC, 3 m, FC. | |||||
| F-MFC-C-3SMAFiber Patch Cord, High Power Density, 500-2100 nm, F-MFC, 3 m, SMA. | |||||
| F-MFC-C-5SMAFiber Patch Cord, High Power Density, 500-2100 nm, F-MFC, 5 m, SMA. | |||||
| F-MFD-C-1FCFiber Patch Cord, Multimode, F-MFD-C, 850/1300 nm, 1.0 m, FC to FC | |||||
 | F-MFD-C-1STFiber Patch Cord, Multimode, F-MFD-C, 850/1300 nm, 1 m, ST Connectors | |||||
| F-MFD-C-3FCFiber Patch Cord, Multimode, F-MFD-C, 850/1300 nm, 3 m, FC Connectors | |||||
| F-MFD-C-3STFiber Patch Cord, Multimode, F-MFD-C, 850/1300 nm, 3 m, ST Connectors | |||||
| F-MFD-C-5FCFiber Patch Cord, Multimode, F-MFD-C, 850/1300 nm, 5.0 m, FC to FC | |||||
| F-MLD-C-1FCFiber Patch Cord, Multimode, F-MLD-C, 850/1300 nm, 1 m, FC Connectors | |||||
| F-MLD-C-2FCFiber Patch Cord, Multimode, F-MLD-C, 850/1300 nm, 2 m, FC Connectors | |||||
| F-MLD-C-2SMAFiber Patch Cord, Multimode, F-MLD-C, 850/1300 nm, 2 m, SMA Connectors | |||||
| F-MSC-C-1SMAFiber Patch Cord, High Power Density, 500-1100 nm, F-MSC, 1 m, SMA | |||||
| F-MSC-C-3SMAFiber Patch Cord, High Power Density, 500-1100 nm, F-MSC, 3 m, SMA | |||||
| F-MSC-C-5FCFiber Patch Cord, High Power Density, 500-1100 nm, F-MSC-C, 5 m, FC. | |||||
| F-MSC-C-5SMAFiber Patch Cord, High Power Density, 500-1100 nm, F-MSC, 5 m, SMA. | |||||
| F-MSD-C-1FCFiber Patch Cord, Multimode, MSD-C, 850/1300 nm, 1 m, FC Connectors | |||||
| F-MSD-C-3FCFiber Patch Cord, Multimode, MSD-C, 850/1300 nm, 3 m, FC Connectors | |||||
| F-MTC-C-1FCFiber Patch Cord, High Power Density, 500-2100 nm, F-MTC, 1 m, FC. | |||||
| F-MTC-C-2SMAFiber Patch Cord, High Power Density, 500-2100 nm, F-MTC, 2 m, SMA. | |||||
| F-MTC-C-3SMAFiber Patch Cord, High Power Density, 500-2100 nm, F-MTC-C, 3 m, SMA |
Features
Custom Multimode Patch Cables
Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.
Available Off-the-shelf
We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths from 250 to 2100 nm. The standard patch cables are available in several different lengths and connector types. These fibers have an inner jacket surrounded by a layer of Aramid yarn for extra protection. A PVC cable jacket provides additional environmental protection. If there is not a standard patch cable available for your application, please try our custom patch cable configurator:F-PATCH-CUSTOM .
Excellent Performance
Our Standard Patch Cable exhibit low attenuation while utilizing either step-index and graded-index designs and have a uniform core refractive index and a matched-clad profile.
Accessories
Custom Fiber-optic Patch Cords
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-PATCH-CUSTOMOptical Fiber Patch Cable, Custom Configurator |
