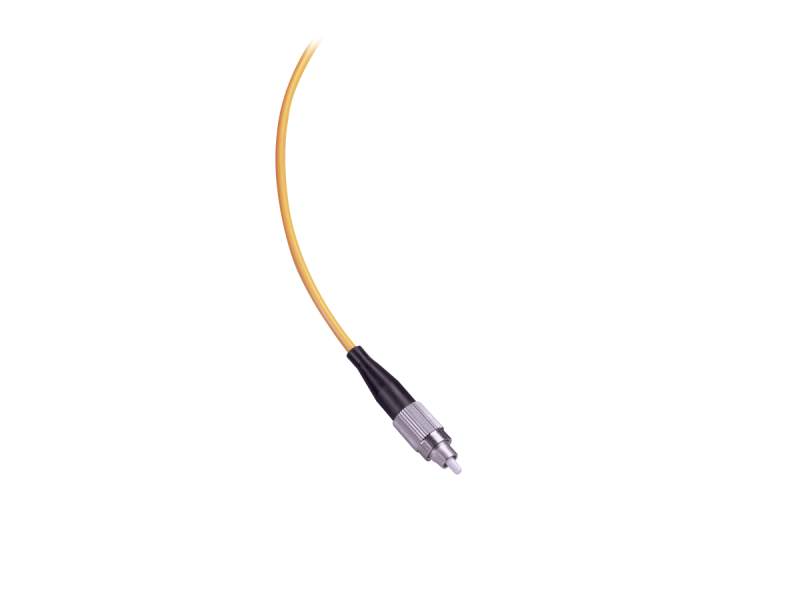

Fiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBB-C, 3 m, FC

The F-MBB-C-3FC is a 3 meter length multimode step index fiber patch cord with FC connectors. A 200 μm core diameter with a hard clad silica 230 μm cladding supports 500-1100 nm operation. A high NA of 0.37 allows greater coupling efficiencies, while a 900 μm outer jacket, surrounded by an Aramid yarn layer and a 3 mm diameter polyurethane cable jacket, provides additional strength and environmental protection.

Specifications

Technical Specs

Index Profile
Step
Fiber Type
Multimode
Core Diameter
200 ±4 µm
Cladding Diameter
230 +0/-10 µm
Coating Diameter
500 ±30 µm
Cable Diameter
2.5 mm
Fiber Connector
FC/UPC

Operating Wavelength
500-1100 nm
Buffer Coating Material
Dual Acrylate
Bandwidth
20 MHz/km
Bend Radius 60 min./20 yrs.
10/16 mm
Numerical Aperture
0.37
Proof Test
100 kpsi

Index Profile
Step
Fiber Type
Multimode
Core Diameter
200 ±4 µm
Cladding Diameter
230 +0/-10 µm
Coating Diameter
500 ±30 µm
Cable Diameter
2.5 mm
Fiber Connector
FC/UPC

Operating Wavelength
500-1100 nm
Buffer Coating Material
Dual Acrylate
Bandwidth
20 MHz/km
Bend Radius 60 min./20 yrs.
10/16 mm
Numerical Aperture
0.37
Proof Test
100 kpsi
