Two-Axis Tilt Platforms with Aperture
Two-Axis Tilt Platforms with Aperture

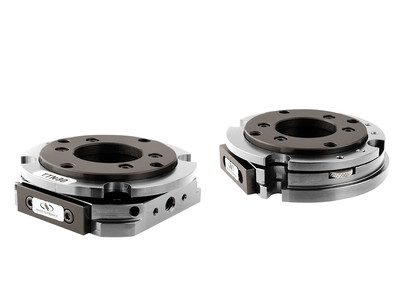

The TTN80 Tilt Platform is a compact module that provide sensitive adjustment of parallelism between a base plate and top plate or optical mount. ±2° tip and tilt are achieved without altering the height of the mount along the central axis. These platforms are adjusted by small thumbwheels that maintain an overall compact form.
- Low profile flexure design
- Extremely stiff, steel construction
- Post or Base Mountable
- Two-axes of tilt See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-TTN80 Two-Axis Steel Tilt Platforms with ApertureTilt Platform, Two-Axis, ±2° Tilt and Tip Range, 20 N Load, M4 and M6 | |||||
| TTN80 Two-Axis Steel Tilt Platforms with ApertureTilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20 |
Specifications
Features
Post or Base Mountable
The TTN80 Tilt Platform can be mounted horizontally to a bread board for adjusting parallelism between a base plate and top plate or post mounted vertically for adjusting optical elements.

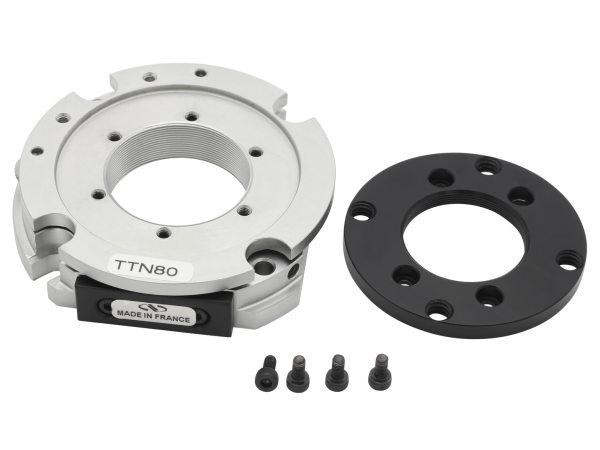

Removable Threaded Aperture Adaptor
Each TTN80 includes an threaded aperture adaptor having M30x0.75 threads. This adaptor can be used for mounting optic barrels B25.4 or B25.4-RT in an X26 optical rail system.
