Tip-Tilt Optic Rotation Mounts
Tip-Tilt Optic Rotation Mounts
Tip/Tilt optic rotation mounts provide precise control of polarizers on all three axes of rotation. 1 in. and 0.5 in. wave plates, polarizers, and beamsplitter cubes rotate over 360° smoothly with exacting tip/tilt control while this mount also offers an easier to read rotation scale and independent lock of just the rotation adjustment.
- Precision pitch, yaw, and roll positioning for 1 and 0.5 in. polarization optics
- Redesigned for easy reading of 360° rotation scale
- Hand-turned knobs for finer rotation control
- 100-TPI adjusters for high precision pitch and yaw adjustment
- Independent, non-influencing locks to maintain stable optical alignment See All Features
Specifications
Features
Gimbaled Tip, Tilt, and Rotation

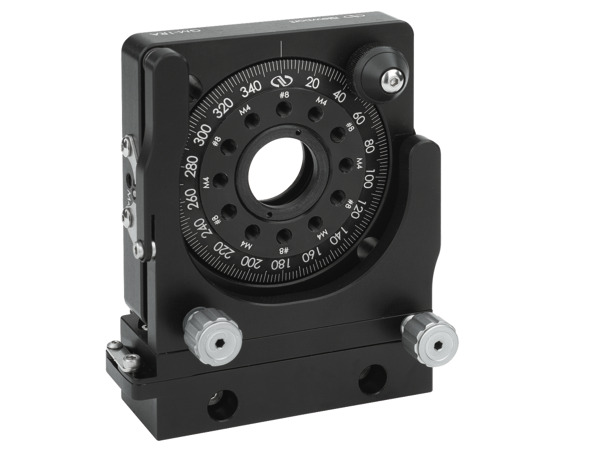

The GM-1RA Gimbal Rotation Mount provides tip/tilt positioning for 1 in. (25.4 mm) wave plates, polarizers, and beamsplitter cubes. This mount is unique due to its gimbaled tip/tilt mechanism which allows angular adjustment of the optic without unwanted translation. The rotation stage can also be removed from the tip/tilt mechanism by removing four screws, allowing the rotation stage to be reversed or used independently.
Independent Non-influencing Locks
The GM-1RA mount features independent locks for all axes, maintaining stable optical alignment. Engaging or disengaging each lock has negligible influence on the other axes.
Removable Slotted Base Plate
The GM-1RA mount features a slotted base plate as well as two threaded holes 1/4-20 and M6 at the bottom for maximized flexibility of mounting. The slotted base can be removed in space-limited applications.
Kinematic Mount Meets Rotation Mount

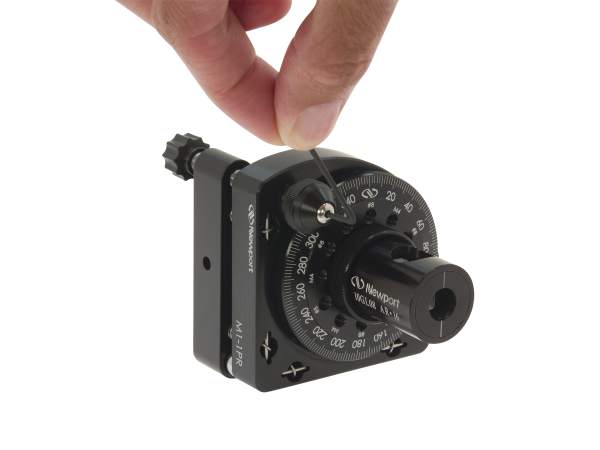

The M1-1PR Kinematic Polarizer Rotation Mount combines the tip/tilt adjustments of a kinematic mirror mount with rotation adjustment of a polarizer rotation mount. The mount features precise 100 TPI adjustment screws for increased pitch and yaw sensitivity. Rotation on full ball bearing races can be coarsely aligned using the knurled edge of the rotating platform while fine adjustment with 4 arc min sensitivity is achieved by the knob. Angular position can be locked in place securely with the little screw in the center of the knob.
Versatile Optic Mounting
Both Tip-Tilt Optic Rotation Mounts hold 1.0 in. optic such as waveplates and polarizers securely in place with included retaining rings. Additionally, a variety of other optic in compatible adapter or holder can directly thread into the central 1.063''-20 aperture, for example, 0.5 in. optic in PRA-05 adapter, 0.5 in. beamsplitting cube in CH-0.5 holder, and Glan-Laser Calcite Polarizers such as 10GL08.
Accessories
Compatible Adaptors
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CH-0.5 Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts | |||||
 | LT10-NP1 Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.063-20 Mount Thread | |||||
 | PRA-05 Polarizer Adaptor, 12.7 mm Optics to 1.063-20 Threaded Mounts | |||||
 | RSA-1TI Solid Insert, RSP-1T Rotation Stage |
Compatible Retaining Rings
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | A-1.25-1RR Retaining Ring, 19.2 mm ID, 1.063-20 Thread | |||||
 | A-1.25-1RR-L Retaining Ring, 22.9 mm ID, 1.063-20 Thread |
