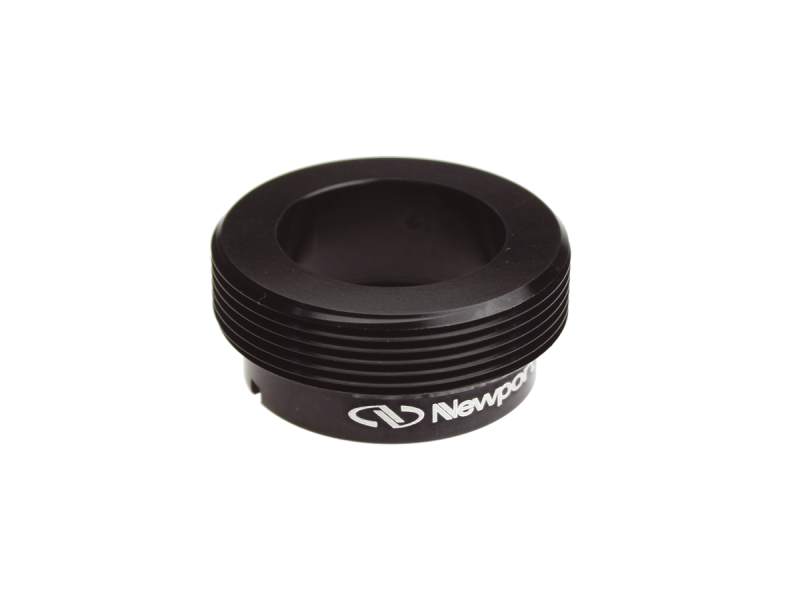

Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.063-20 Mount Thread

The LT10-NP1 Lens Tube Adaptor allows, LT10-series lens tubes to be mounted to Newport's standard mounts with a 1-in. diameter like the LP-1A, LH-1, LA1V-XY or RM25A etc.. Any mount having 1.063-20 internal threads can use this adaptor to mount Lens Tubes.

Specifications

Technical Specs

Type
Lens Mount Adapter

Thread Type
1.035-40 and 1.063-20

Type
Lens Mount Adapter

Thread Type
1.035-40 and 1.063-20

Resources & Downloads

3D Product Models

2D Product Drawings

LT10-NP1-322(82.9 kB, PDF)

Other

LT10-NP1_RoHS2021.pdf(681 kB, PDF)
