UV Fused Silica Metallic Neutral Density Filters

Our metallic neutral density coatings provide broadband attenuation for lower power applications. The precision polished UV fused silica substrate, the filters may be used anywhere from 350 to 2000 nm.

Broadband attenuation from 350-2000 nm
Metallic neutral density coating
Low wavefront distortion
UV grade fused silica
For lower power applications
Available in convenient kits

See All Features

Description	Compatibility	Price

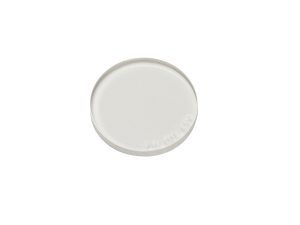

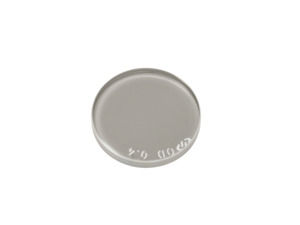

FRQ-ND003 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.03 OD at 632.8 nm	UNIVERSAL	$45
FRQ-ND01 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.1 OD at 632.8 nm	UNIVERSAL	$71

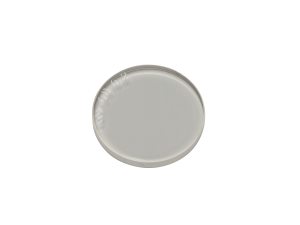

FRQ-ND02 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.2 OD at 632.8 nm	UNIVERSAL	$71
FRQ-ND03 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.3 OD at 632.8 nm	UNIVERSAL	$71
FRQ-ND04 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.4 OD at 632.8 nm	UNIVERSAL	$71

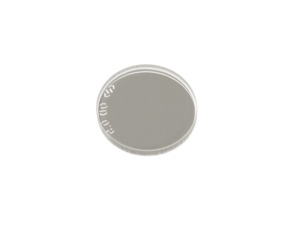

FRQ-ND05 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.5 OD at 632.8 nm	UNIVERSAL	$71
FRQ-ND06 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.6 OD at 632.8 nm	UNIVERSAL	$79
FRQ-ND07 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.7 OD at 632.8 nm	UNIVERSAL	$79
FRQ-ND08 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.8 OD at 632.8 nm	UNIVERSAL	$79
FRQ-ND09 UV Fused Silica Metallic ND FiltersMetallic ND Filter, UV Fused Silica, 25.4 mm, 0.9 OD at 632.8 nm	UNIVERSAL	$79

Show All

Features

Finely Control Beam Attenuation

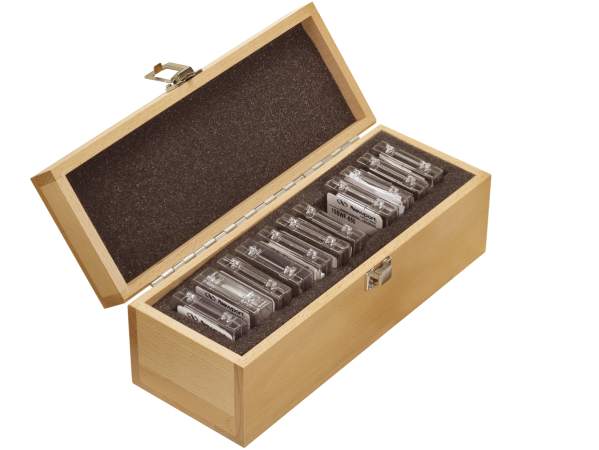

These filters are available individually or in a set of eight. The set consists of a logical assortment of filters packaged in a protective hardwood case. All filters are permanently marked with the optical density and are shipped with a transmission curve. Filters from this product family may be used individually, or combined in series, to obtain any desired density from 0 to 7 in steps of 0.1 OD.

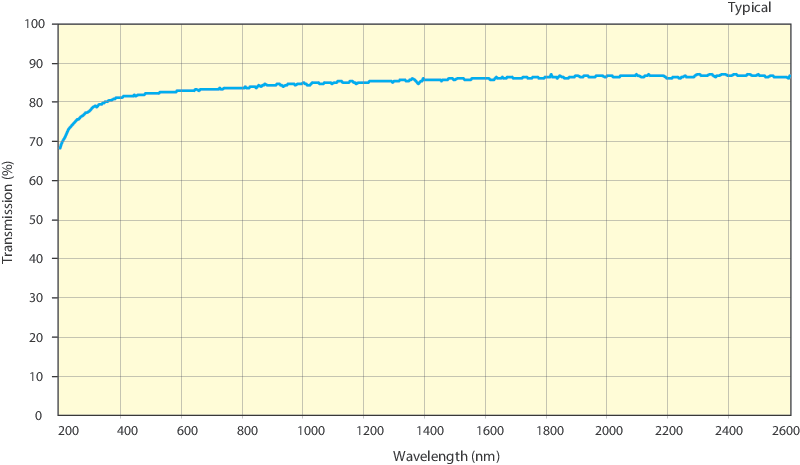

Typical curve. Actual transmission may vary.

Metallic Coating Properties

Due to the absorptive nature of the metallic coating, use with high-power lasers should be avoided. Power levels less than 30 W/cm² are advised.

For additional attenuators, see Laser Beam Attenuators

Additive Optical Densities

Optical density (OD) is given by the relationship: OD = -log(T) or T = 10^(-OD) where T is transmittance (0≤T≤1). Optical Density, unlike transmittance, is additive. When multiple filters are stacked, the total density is easily found by adding up the densities of each filter in the series. For example to achieve desired transmittance of 8%, first calculate the equivalent density (OD = -log(0.08) = 1.097 ≅ 1.1), then find a combination of filters that adds to the desired number, such as a combination of an OD1 filter and an OD0.1 filter.

UV Fused Silica Substrate

The coating is deposited on one side of an ultra-pure UV grade fused silica substrate providing excellent transmission from the ultraviolet to the near-infrared (350-2000nm). These precision polished substrates have flatness less than 1λ–2λ, resulting in low wavefront distortion for the transmitted beam. The polished second surface is uncoated.

Proper Orientation

To prevent unwanted interference from etalon effects, filters should be angled slightly with respect to the incident beam. To minimize back reflections, the filter should be oriented with the coated metallic surface facing the incident beam. Any light reflected from the uncoated second surface will pass through the metallic coating first, which will greatly attenuate unwanted back reflections.

Neutral Density Filter Kits

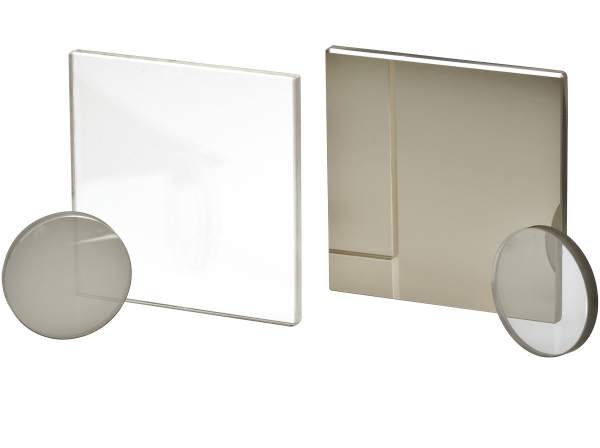

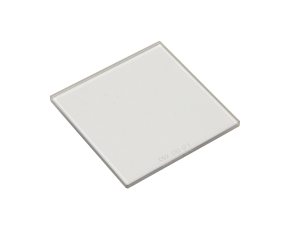

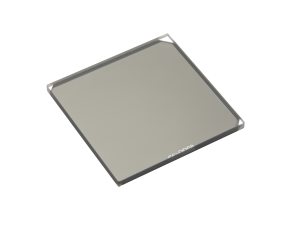

The FR-ND UV Fused Silica Metallic Neutral Density Filter Set includes eight, 25.4 mm diameter, UV Fused Silica Metallic ND Filters. The FS-ND UV Fused Silica Metallic Neutral Density Filter Set includes eight, 50.8 x 50.8 mm square, UV Fused Silica Metallic ND Filters. Each kit includes optical densities of 0.03, 0.1, 0.3, 0.5, 1.0, 2.0 and 3.0. Our metallic neutral density coatings provide broadband attenuation for lower power applications. The coating is deposited on one side of an ultra-pure UV grade fused silica substrate providing excellent transmission from the UV to NIR. Filter kits provide convenience and cost savings.
