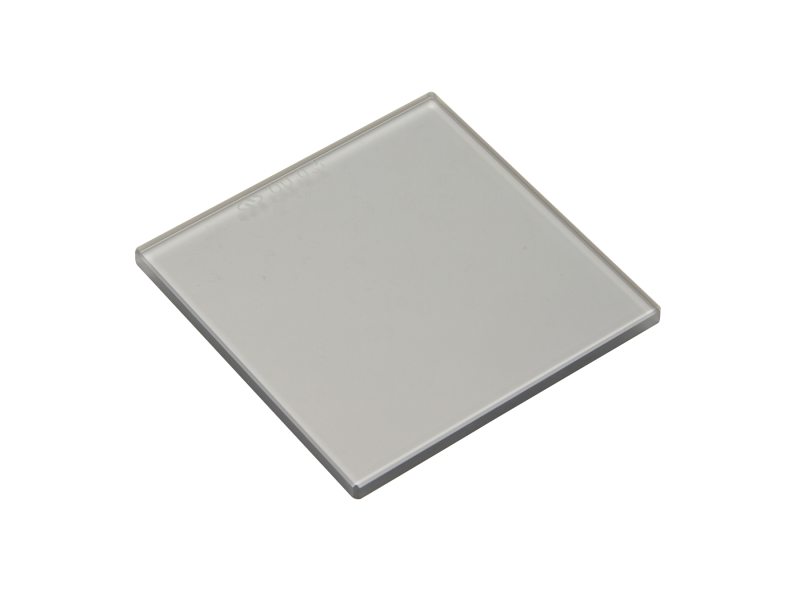

Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 0.3 OD at 632.8 nm

The FSQ-ND03 UV Fused Silica Metallic Neutral Density Filter is a 50.8 x 50.8 mm square UV fused silica metallic ND filter with an optical density of 0.3 at 632.8 nm. Our metallic neutral density coatings provide broadband attenuation for lower power applications. The coating is deposited on one side of an ultra-pure UV grade fused silica substrate providing excellent transmission from the UV to near-infrared. All filters are permanently marked with the optical density.

Specifications

Technical Specs

Size
50.8 x 50.8 mm
Wavelength Range
350 - 2000 nm
Optical Density
0.3
Optical Density Tolerance
±6% @ 632.8 nm
Transmission
50.1% @ 632.8 nm
Angle of Incidence
0°
Material
UV grade fused silica or equivalent
Damage Threshold
30 W/cm² CW, typical; not recommended for pulsed laser use
Thickness
3.0 mm
Thickness Tolerance
±0.25 mm

Surface Flatness
≤2λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Clear Aperture
≥central 80% of dimensions
Wedge
≤3 arc min
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
Cleaning
See How to Clean Optics

Size
50.8 x 50.8 mm
Wavelength Range
350 - 2000 nm
Optical Density
0.3
Optical Density Tolerance
±6% @ 632.8 nm
Transmission
50.1% @ 632.8 nm
Angle of Incidence
0°
Material
UV grade fused silica or equivalent
Damage Threshold
30 W/cm² CW, typical; not recommended for pulsed laser use
Thickness
3.0 mm
Thickness Tolerance
±0.25 mm

Surface Flatness
≤2λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Clear Aperture
≥central 80% of dimensions
Wedge
≤3 arc min
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
Cleaning
See How to Clean Optics

Resources & Downloads

Drawings And Cad

COLOREDG-S(61 kB, PDF)

Other

FSQ-ND03 RoHS Certificate(264.7 kB, PDF)
FSQ-ND03_ROHS2-2021.pdf(280.7 kB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Price
FSQ-ND05Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 0.5 OD at 632.8 nm	UNIVERSAL	$158
M-ND40T-AElastomeric Isolation Mount, NewDamp, 100-450 lb., Microlock & X95 Rail	METRIC	$402
FSQ-ND10Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 1.0 OD at 632.8 nm	UNIVERSAL	$158
MSCABLE-10Cable, DB-25 Male to DB-15 Female, 10 m Length	UNIVERSAL	$682
FSQ-ND01Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 0.1 OD at 632.8 nm	UNIVERSAL	$144
FSQ-ND20Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 2.0 OD at 632.8 nm	UNIVERSAL	$165

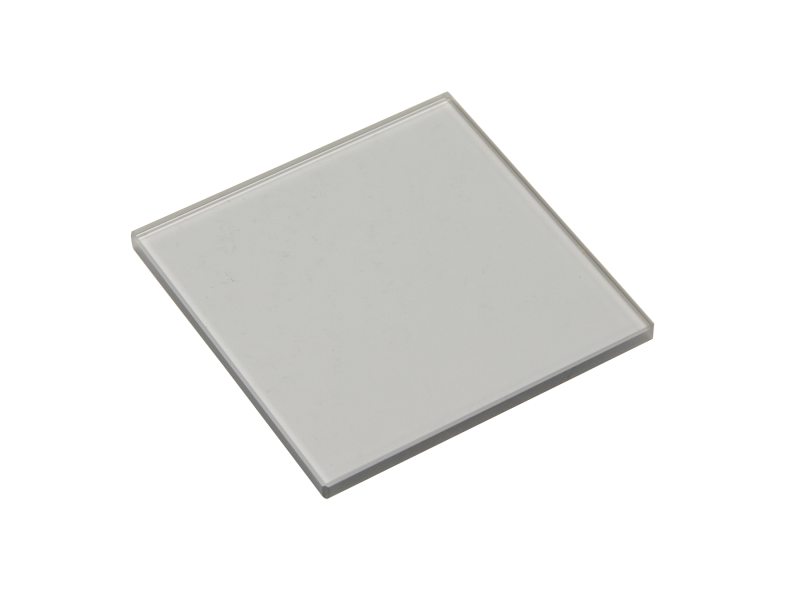

FSQ-ND02Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 0.2 OD at 632.8 nm	UNIVERSAL	$151
