LaserClean™ UV Focusing Objective Lenses

These LaserClean™ objectives are infinity corrected, ideal for UV lasers such as 3rd and 4th harmonic Nd:YAG. The objectives are designed for better than λ/5 wavefront distortion across the entire wavelength range, and feature a standard RMS thread for easy mounting.

UV fused silica lenses
Infinity corrected, ideal for laser applications
Excellent wavefront quality
High damage threshold
LaserClean manufacturing process

See All Features

Description	Compatibility	Magnification	Price
U-13X-LCUV Objective Lens, 13x, 0.13 NA, 11.53 mm Focal Length, 245-440 nm	UNIVERSAL	13x	$2,142

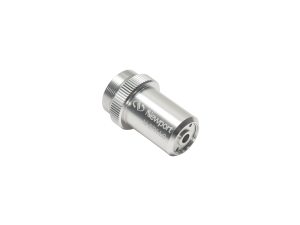

U-27X-LCUV Objective Lens, 27x, 0.13 NA, 5.77 mm Focal Length, 245-440 nm	UNIVERSAL	27x	$2,460

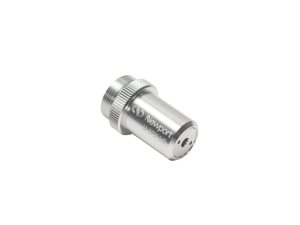

U-37X-LCUV Objective Lens, 37x, 0.11 NA, 3.41 mm Focal Length, 245-440 nm	UNIVERSAL	37x	$3,817

Specifications

Models
Magnification	13x	27x	37x
Numerical Aperture	0.13	0.13	0.11
Wavelength Range	245-440 nm	245-440 nm	245-440 nm
Effective Focal Length (EFL)	11.53 mm	5.77 mm	3.41 mm
Working Distance	6.82 mm	3.50 mm	2.42 mm
Clear Aperture	3.00 mm	1.50 mm	0.75 mm
Thread Type	0.800-36 RMS	0.800-36 RMS	0.800-36 RMS

Features

Ideal for UV Laser Applications

These objectives are ideal for use with UV lasers, such as 3rd and 4th harmonic Nd:YAG lasers. The rear conjugate of these UV fused silica objective lenses is corrected for infinity, ideal for interacting with collimated laser beams. The optical design is computer optimized to yield better than λ/5 total wavefront distortion from 350-1064 nm. The objectives feature our AR.10 UV antireflection coatings for 245-440 nm. The lenses are made with high purity UV Fused Silica glass with minimal autofluoresence and scattering, resulting in low attenuation and high damage threshold.

LaserClean™ Process

The LaserClean™ manufacturing process ensures that products are made with the utmost cleanliness. Assembled in a class 1000 cleanroom and prepped with additional cleaning processes, the final product is vacuum sealed and will have a significant reduction of particulates and dust.

UV Grade Fused Silica Construction

The lenses are fabricated from UV grade fused silica for high power-handling capability. Damage threshold exceeds 8 J/cm² with 12 nsec pulses at 1064 nm. The housing has a standard microscope objective thread for easy mounting. For more information, refer to the optical material technical note.

Accessories

RMS Threaded Adapters and Mounts

Description	Compatibility	Price
LT10-RMS-NThread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 0.800-36 RMS Thread	UNIVERSAL	$24
UPA-OMObjective Lens Adapter, RMS Thread, 1 inch Mount	UNIVERSAL	$49
LPMH-05Objective Lens Holder, RMS, 0.875-20 Thread, For LP-05A Series	UNIVERSAL	$37
LPMH-1Objective Lens Holder, RMS, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	$36
561-OBJObjective Lens Mount, 561 Series	UNIVERSAL	$171
LH-RMSMicroscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32	IMPERIAL	$30
OC1-RMSObjective Lens Mount, Insertable, RMS Thread, Optics Cage Plus	UNIVERSAL	$28
