Our visible MgF2 coated achromatic doublet lenses feature minimized spherical aberration and coma at infinite conjugates, yielding minimal focus spot size. Unlike singlet lenses, achromatics have constant focal length independent of aperture and operating wavelength, and have superior off-axis performance.
- Commonly used to expand light in order to increase focal length and magnification
- 400-700 nm Single-layer visible MgF2 AR coating
- Significantly better optical performance than singlet lenses
- Nearly constant focal length across the visible spectrum
- Far superior off-axis performance
- Ideal for general purpose benchtop prototyping See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

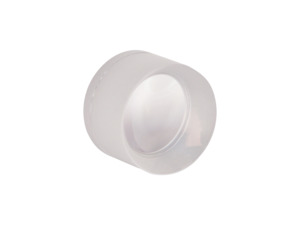

![]() | NAC010 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 6.35 mm, -12.5 mm EFL, 400-700 nm | |||||
![]() | NAC012 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 12.5 mm, -15 mm EFL, 400-700 nm | |||||
![]() | NAC013 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 12.5 mm, -20 mm EFL, 400-700 nm | |||||
![]() | NAC016 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 6.35 mm, -25 mm EFL, 400-700 nm | |||||
![]() | NAC025 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 12.5 mm, -35 mm EFL, 400-700 nm | |||||
![]() | NAC028 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 12.5 mm, -50 mm EFL, 400-700 nm | |||||
![]() | NAC040 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 25 mm, -30 mm EFL, 400-700 nm | |||||
![]() | NAC044 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 25 mm, -40 mm EFL, 400-700 nm | |||||
![]() | NAC048 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 25 mm, -50 mm EFL, 400-700 nm | |||||
![]() | NAC052 Visible MgF2 Negative Achromatic Lenses Negative Achromatic Doublet Lens, Visible, 25 mm, -100 mm EFL, 400-700 nm |
Mounting Options
We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.
Note: besides the diameter, please check the Edge Thickness (Te) specification of the lens and the lens mount to ensure compatibility before purchasing.
| Lens Diameter | ![]() A-Line™ Lens Mounts |
![]() LT Series Lens Tubes |
![]() LP Series Lens Positioners |
![]() Optics Cage Plus Series |
|---|---|---|---|---|
| 76.2 mm | (M-) LH-3A | N/A | N/A | N/A |
| 50.8 mm | (M-) LH-2A LH-2N |
LT20-05 LT20-10 LT20-20 LT20-30 |
LP-2A LP-2A-XY LP-2A-XYZ |
N/A |
| 38.1 mm | (M-) LH-1.5A | LT20 lens tube with LH-2R1.5 adapter |
LP-2 lens positioner with LPLH-1.5T adapter |
N/A |
| 25.4 mm | (M-) LH-1A LH-1N LH-1XY LH-1TZ-A LH-1TZ |
LT10-05 LT10-10 LT10-20 LT10-30 |
LP-1A LP-1A-XY LP-1A-XYZ |
OC1-LH1-S OC1-LH1 OC1-LH1-TZ OC1-LH1-XY OC1-LH1-XYA OC1-LH1-XYC OC1-LH1-XYZ |
| 12.7 mm | (M-) LH-0.5A LH-05N |
LT05-05 LT05-10 |
LP-05A LP-05A-XY LP-05A-XYZ |
N/A |
| 6.35 mm | LH-05DB with LH-50R25 adapter |
LT05 lens tube with LH-50R25 adapter |
LP-05 lens positioner with LPLH-25T adapter |
N/A |
For non-standard sizes not listed above, check out our variable size lens mounts.
Features
Achromatic Lenses
An Achromat, or Achromatic lens, is usually made up of multiple optical elements, which can be air-spaced or cemented together. These typically alternate a positive lens of low index material, such as crown glass, and a negative lens of high index material, such as flint glass. The elements are selected and optimized so that dispersion in the positive element is corrected by the negative element, resulting in minimized chromatic aberration at two well-separated wavelengths. Achromats offer a nearly constant focal length across the visible spectrum, providing superior off-axis performance. Doublet lenses offer users many more design options than singlet lenses, which allows for superior performance in visual imaging and laser beam manipulation applications. Our lenses are computer designed, minimizing aberrations and providing a smaller focused spot size. They are offered with multi-layer or single-layer AR coatings. Standard diameters and focal lengths may be interchanged with our singlet lenses. Further, achromats are available in a wide variety of configurations, including positive, negative, triplet, and aspherized. These lenses are produced as doublets or triplets (three elements). The collimated beam should enter or depart from the surface (R1 in drawing) with higher curvature (smaller radius) for optimized performance.
MgF2 Visible Antireflection Coating
Our single layer Magnesium Fluoride visible AR coating is the most common choice that offers extremely broad wavelength range at a reasonable price. It is standard on achromats and optional on our N-BK7 plano-convex spherical lenses and cylindrical lenses. Comparing to the uncoated surface, the MgF2 provides a significant improvement by reducing the reflectance to less than 1.5%. It works extremely well over a wide range of wavelengths (400 nm to 700 nm) at angles of incidence less than 15 degrees.
