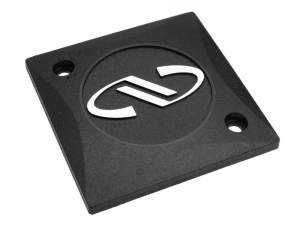

X95 Structural Optical Rails and Carriers

The X95 Rail and Carrier System features rigid support from cylindrical, aluminum rails with four longitudinal reinforcing ribs, ideal for large-scale optical setups and available in the widest array of lengths. The 10 mm thick ribs provide four symmetrical dovetail clamping surfaces for quickly mounted or removed carriers, available in three sizes.

Dovetail mounting on four square sides provides both rigidity & adaptability
Cylindrically based design is made for large scale systems and versatility
Cylindrical aluminum extrusion rail lengths up to 2.5 m standard (6.4 m custom)
Wide variety of rail carriers and construction accessories

See All Features

Description	Compatibility	Price
CXL95-120 X95 Structural Optical Rails and CarriersOptical Rail Carrier, 120 mm Length, 10-24 and 1/4-20 Thread, X95 Series	IMPERIAL	$253
CXL95-50 X95 Structural Optical Rails and CarriersOptical Rail Carrier, 50 mm Length, 1/4-20 Thread, X95 Series	IMPERIAL	$171
CXL95-80 X95 Structural Optical Rails and CarriersOptical Rail Carrier, 80 mm Length, 8-32 and 1/4-20 Thread, X95 Series	IMPERIAL	$188
X95-0.5 X95 Structural Optical Rails and CarriersStructural Rail, Aluminum, 500 mm Length, M6 Threads, X95 Series	UNIVERSAL	$236
X95-0.64 X95 Structural Optical Rails and CarriersStructural Rail, Aluminum, 640 mm Length, M6 Threads, X95 Series	UNIVERSAL	$281
X95-0.75 X95 Structural Optical Rails and CarriersStructural Rail, Aluminum, 750 mm Length, M6 Threads, X95 Series	UNIVERSAL	$300
X95-1 X95 Structural Optical Rails and CarriersStructural Rail, Aluminum, 1000 mm Length, M6 Threads, X95 Series	UNIVERSAL	$321
X95-1.5 X95 Structural Optical Rails and CarriersStructural Rail, Aluminum, 1500 mm Length, M6 Threads, X95 Series	UNIVERSAL	$419
X95-2 X95 Structural Optical Rails and CarriersStructural Rail, Aluminum, 2000 mm Length, M6 Threads, X95 Series	UNIVERSAL	$513
X95-2.5 X95 Structural Optical Rails and CarriersStructural Rail, Aluminum, 2500 mm Length, M6 Threads, X95 Series	UNIVERSAL	$578

Show All

Features

Rigid and Lightweight Aluminum Cylinder Core

The X95 rails provide rigid and lightweight support with an aluminum cylinder core and four, 10mm thick longitudinal reinforcing ribs on which dovetail carriers are easily mounted and removed locally. The rib structure also increase the longitudinal and torsional rigidity of the rail and supports both horizontal and vertical configurations.

Three Rail Carrier Sizes with Metric or Imperial Threads

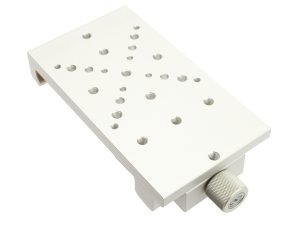

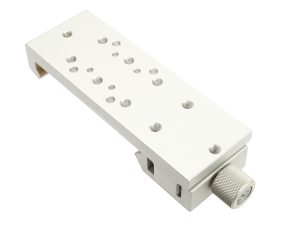

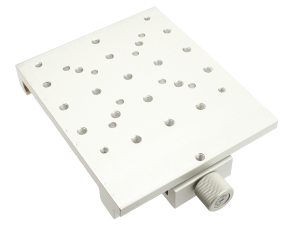

Components can be quickly mounted to or removed from rails via CXL95 carriers. Three carrier sizes are designed to support positioners with 50 mm, 80 mm and 120 mm width sizes on the X95 Rail. English or metric mounting holes allow direct mounting of a wide selection of linear stages, rotation stages and optical mounts. For easy assembly and disassembly, carriers can be removed or installed at any point on the rail by loosening the thumbscrew and tipping the carrier. A unique clamp design eliminates contact between the screw shaft and rail for easier sliding, more stable positioning and prevention of possible rail damage from over tightening. Strong, secure dovetail mounting design allows carriers to be mounted vertically on the sides of the rail, or even suspended upside-down from the bottom of the rail.

Build Large Scale Rigid or Isolated Structures

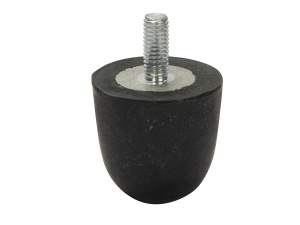

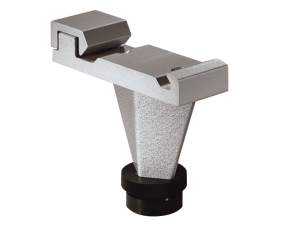

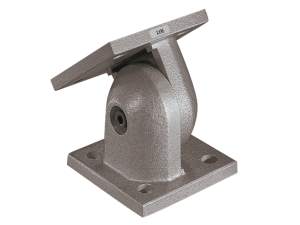

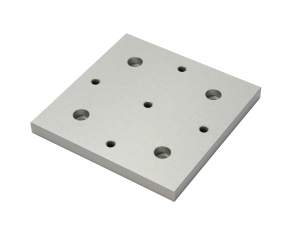

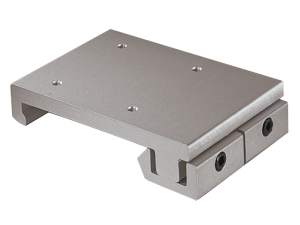

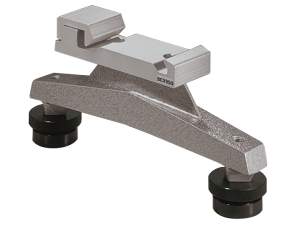

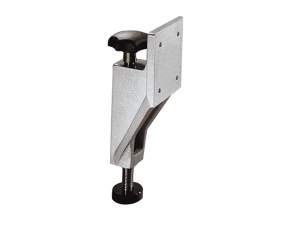

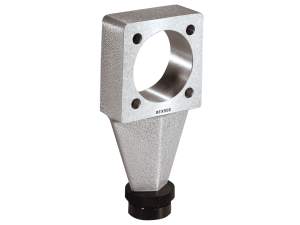

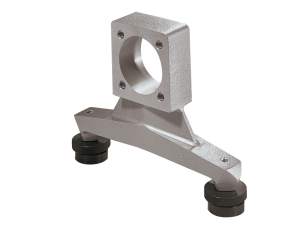

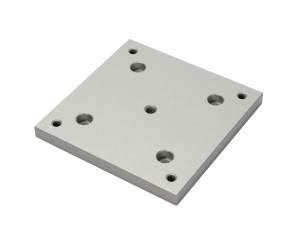

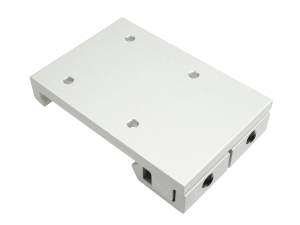

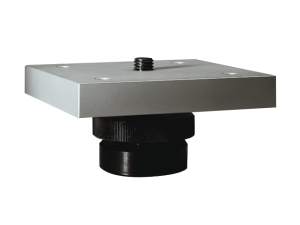

Rigid support structures can be easily constructed using CX95A/CX95AS right angle joints and CX100 structural cubes. Large structures can be stiffened by AX95 guy in a tension arrangement. Newport has adapter plates to attach X95 components to rubber bumpers, pneumatic stable level mounts (X95-AP1 for RB135/SLM-1A, X95-AP3 for RB335/SLM-3A) or elastomeric isolators (adapter not needed for ND40T-A/ND41-A). A wide variety of mounting feet options are available for stand-alone optical systems and large scale structures. These options allow flexible sized workstation frames for breadboards, granite tables or small optical tables. Check out the X95 Brochure for more information.

Accessories

Compatible Isolators

Description	Compatibility	Price
M-ND41-A Elastomeric Isolation Mount, NewDamp, 70-225 lb., Microlock & X95 Rail	METRIC	$482
ND41-A Elastomeric Isolation Mount, NewDamp, 70-225 lb., Microlock & X95 Rail	IMPERIAL	$482
SLM-1A Compact Air Mount, 100 lb. Max. Load, 60 psi Max. Air Pressure	UNIVERSAL	$237
SLM-3A Compact Air Mount, 300 lb. Max. Load, 60 psi Max. Air Pressure	UNIVERSAL	$281

Resources

Literature

X95 Brochure(1.8 MB, PDF)
