Longpass Filter, Colored-Glass Alternative, 25.4 mm, 570 nm Cut-on
Longpass Filter, Colored-Glass Alternative, 25.4 mm, 570 nm Cut-on
Model: 10CGA-570
Product Series Overview

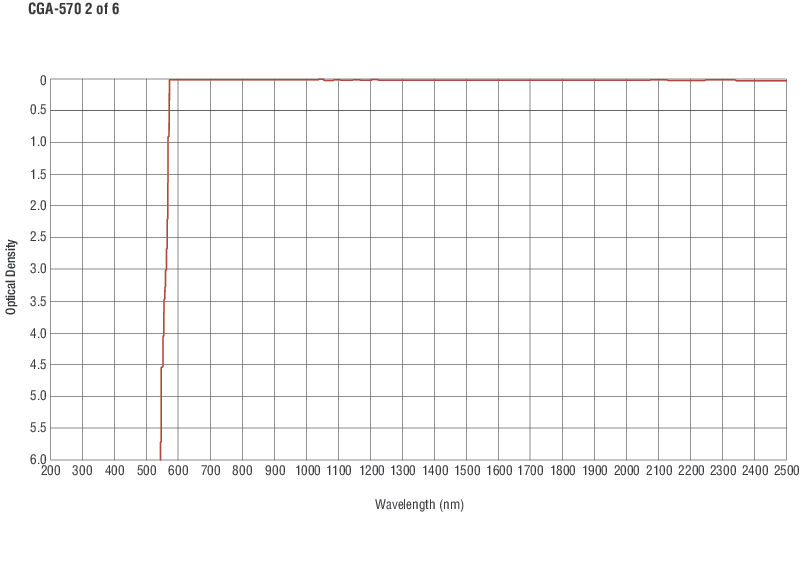

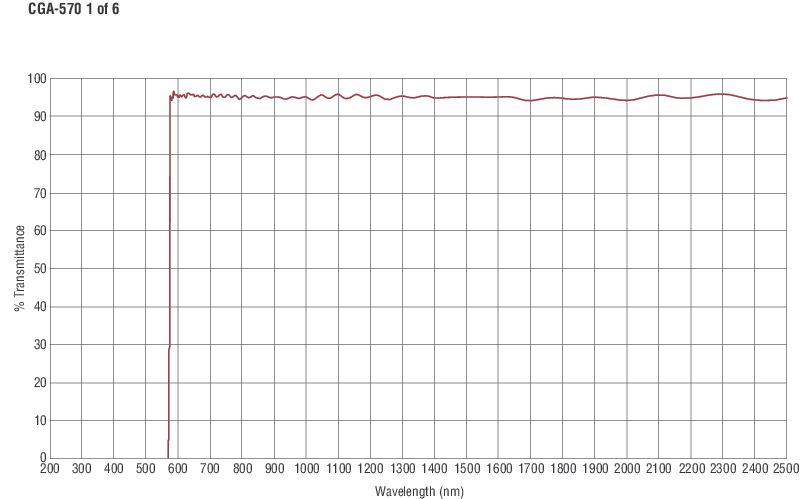

Colored Glass Alternative Longpass FiltersThe 10CGA-570 Colored-Glass Alternative Filter is a 1 inch (25.4 mm) diameter long-pass filter with a 570 ± 5 nm cut-on wavelength. Colored-Glass Alternative filters have a steep transition between the region of transmission and rejection (blocking) that is much steeper than colored glass filters. Colored-Glass Alternative filters have out-of-band rejection ≥OD 5 to 200 nm. Typical transmission is ≥90% average.
Resources & Downloads
3D Product Models
2D Product Drawings
Colored Glass Alternative Filters Catalog(14.2 MB, PDF)
Other
10CGA-570 RoHS Certificate(264.7 kB, PDF)
