Universal Filter Wheel, Flange Mount, Motorized

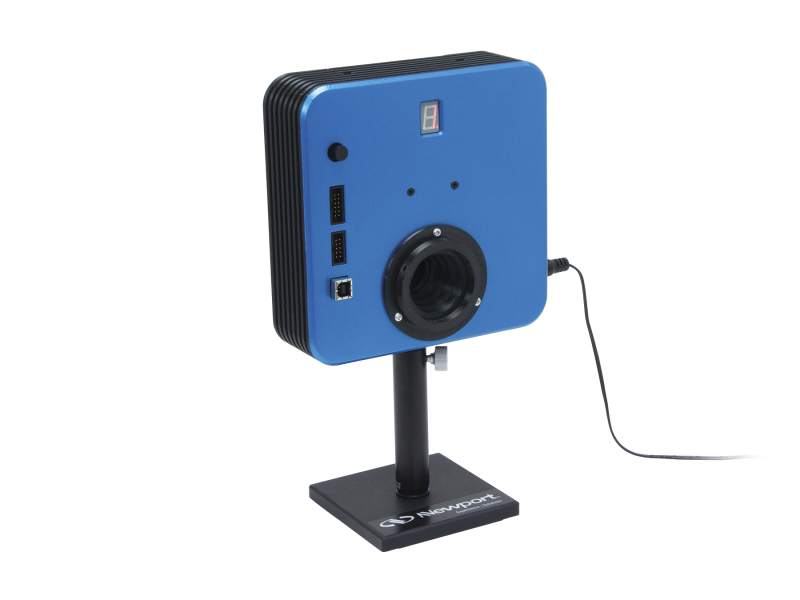

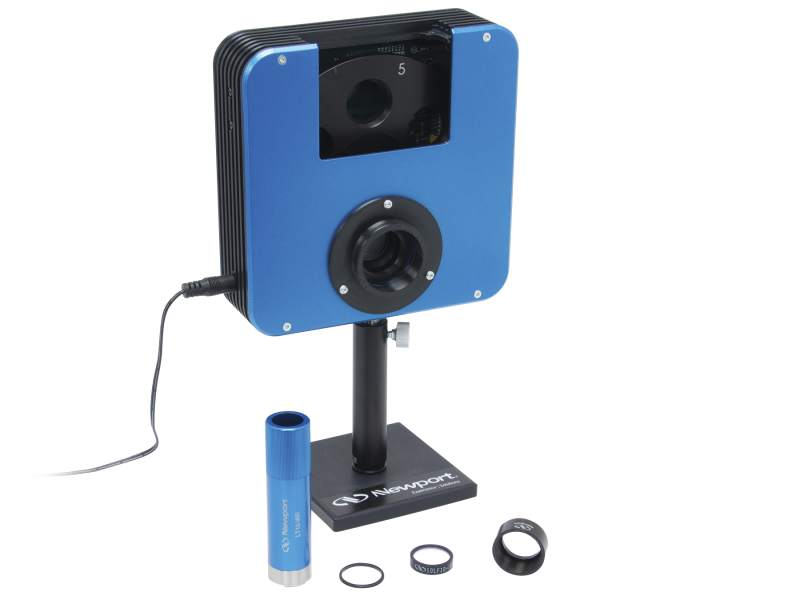

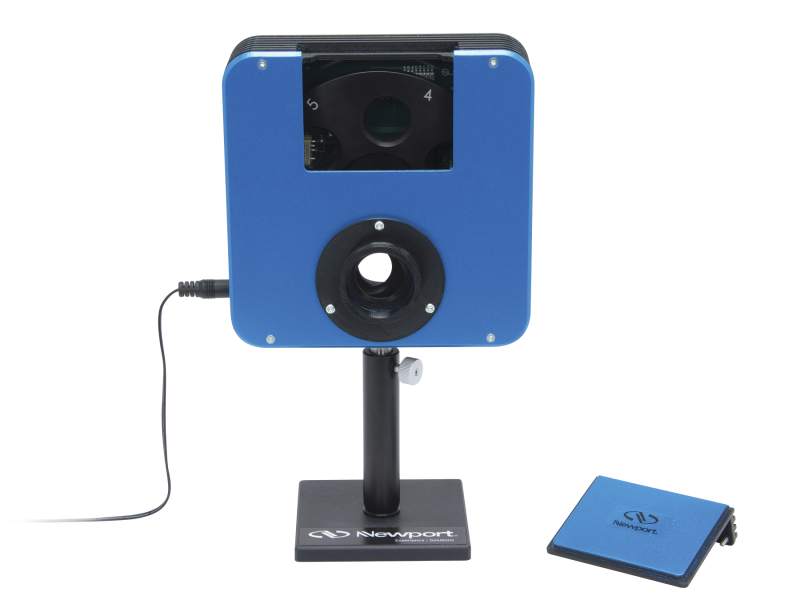

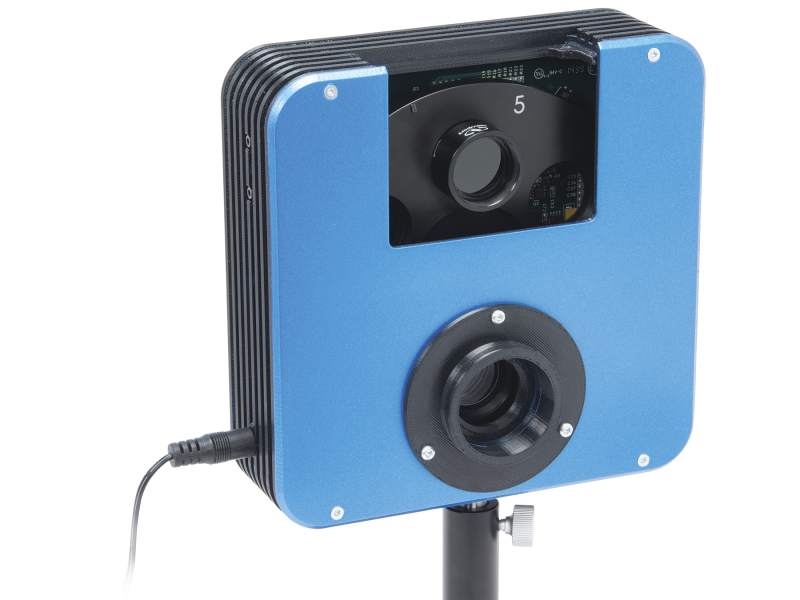

The USFW-100 is a flange mounted filter wheel which holds up to six 1-inch [25.4 mm] diameter filters, sold separately. It may be used as a stand-alone model or it can be integrated with any motorized Oriel^® monochromator or spectrograph. Select a filter position using commands from the monochromator or spectrograph software, a manual pushbutton, or low level commands through a USB interface. A convenient access port allows users to replace filters without breaking down the optical setup. Filter positions are clearly marked on the wheel for easy installation. During use, an LED indicator displays the filter positioned in the optical path.

Flange mounting the filter wheel provides a light-tight seal against background light. The standard Oriel 1.5-inch male and female flanges allow the USFW-100 to couple with other Oriel instruments and accessories. For additional support, use a mounting post and post holder. Threaded holes are provided for both metric and imperial support hardware.

Also included in the package are the AC adapter with US voltage cable, All Wheel Drive Utility Software on USB flash drive, and a USB 2.0 cable. Please note that 1 inch lens tubes and spanner wrench are compatible, but sold separately.
